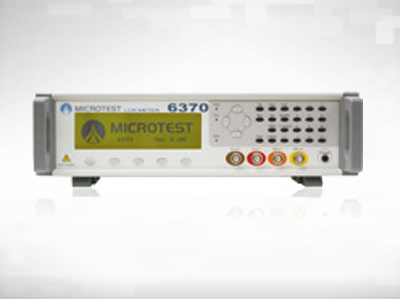

6370 / 6371 / 6372 LCR Meter

Call For Price

Category: .

Product Description

Features

  • 0.1% Basic measurement accuracy
  • 200kHz continuous frequency range
  • Simple straightforward operation
  • Low cost
  • Comprehensive range of measurement functions
  • RS-232, GPIB interfaces
  • Wide AC drive level
  • Small physical size
Test Item
Measurement Parameters Measurement Range
｜Z｜ R X 0.01 mΩ ~ 100.00MΩ
｜Y｜ G B 0.0001nS ~ 1000S
Cs Cp 0.01pF ~ 1F
Ls Lp 0.01uH ~ 100KH
D 0.0001 ~ 9.9999
Q 0.1 ~ 9999.9
DCR 0.01mΩ ~ 100.00MΩ
Δ% -999.99% ~ 999.99%
Θ -180° ~ +180°
Measurement Speed
Fast 5 measurements per second
Medium 3 measurements per second
Slow 2 measurements per second
Basic Accuracy 0.1%
Comparator Test Model Upper and Lower test limits in units and percentage
Test Frequency 6370 100Hz~20KHz in 372 steps
6371 100Hz~100KHz in 388 steps
6372 100Hz~200KHz in 390 steps
AC Test Voltage 50mV 100mV 250mV 500mV 1V
DC Test Voltage 0.5V
Bias Voltage 2V
Ranging Auto/Hold
Trigger Internal, Manual, External, and Bus
LCD Display 240×64 dot-matrix display
Indicator PASS, FAIL and BIAS LED indictors internal speaker
Connections 4-Terminal BNC Guarded Connections
Memory 127 instrument set-up conditions can be saved
Interface RS-232port, Handler Interface, GPIB)
Input Voltage 90-132Vac or 198-264Vac(selectable)
Frequency 47-66Hz
Installation category II(in accordance with IEC664)
Temperature Range 10℃ to 40℃
Relative Humidity 90% non-condensing
Pollution degree 2 (mainly non-conductive)
Altitudeup To 2000m
Safety Complies with the requirements of EN61010-1
Immunity EN61326-1
Emissions EN55022 Class A
Hight 100mm
Width 340mm
Depth 330mm
Weight 5kg
