The best solution for coils testing
Coils are used widely. They are used on transformer, motor, generator, relay, solenoid, filter and different inductances. That is why the quality of coilsis very important for all manufacturers.
High voltage non-destructive analysis of winding identifies difficult to detect manufacturing faults
They are a number of parameters that can not change during manufacture that may affect the performance of a winding. These parameters, which cannot always be measured with an LCR Meter, include change in material as well as shorted and damaged windings. The 7700 series instruments use a very high voltage impulse to stimulate the device under test (DUT). It analyzes the decay waveform to detect changes in material, shorted and damaged windings and other errors. Long term decay of a winding can also be detected. The system used ensures that the component is tested but not damaged during the analysis process. The shape of the waveform is dictated by Q factor, Inductance and stray capacitance of the winding. Hing Q shows as a slow decay and the frequency of the waveform is determined by the inductance and stray capacitance of the DUT.
Features
Low Energy Non – Destructive Test of Winding
0.5uH of Resistance is Capable of Testing
Auto Voltage Level Control
Ultra high 5000V testing voltage
Easy Waveform Learning, Fast Testing
High Frequency Harmonic Analysis
High Frequency Noise Analysis
Chinese / English language version
Specification:
Test Functions
Area
Size Comparison
Difference Area Comparison
Waveform Comparison
Flutter Value
Corona Value
Impulse Voltage
200~5000V
Programmable
±2% Accuracy
Measurement Time
50ms Basic
Test Channel
2-Channels
Display and Sound
20*240 Resolution Graphic
Pass / Fail LED Indicator
Internal Speaker

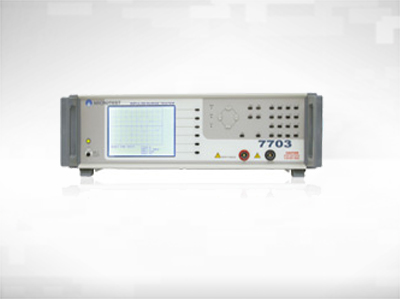

7703 / 7713 Impulse/Surge Tester
Call For Price
Product Description
The best solution for coils testing
Coils are used widely. They are used on transformer, motor, generator, relay, solenoid, filter and different inductances. That is why the quality of coilsis very important for all manufacturers.
High voltage non-destructive analysis of winding identifies difficult to detect manufacturing faults
They are a number of parameters that can not change during manufacture that may affect the performance of a winding. These parameters, which cannot always be measured with an LCR Meter, include change in material as well as shorted and damaged windings. The 7700 series instruments use a very high voltage impulse to stimulate the device under test (DUT). It analyzes the decay waveform to detect changes in material, shorted and damaged windings and other errors. Long term decay of a winding can also be detected. The system used ensures that the component is tested but not damaged during the analysis process. The shape of the waveform is dictated by Q factor, Inductance and stray capacitance of the winding. Hing Q shows as a slow decay and the frequency of the waveform is determined by the inductance and stray capacitance of the DUT.
Features
Specification:
Size Comparison
Difference Area Comparison
Waveform Comparison
Flutter Value
Corona Value
Programmable
±2% Accuracy
Pass / Fail LED Indicator
Internal Speaker
RS-232 Port
Printer Port
60 / 50 Hz
Rh ≦ 75%
