This product is no longer in production, it replace by new model DSA832E

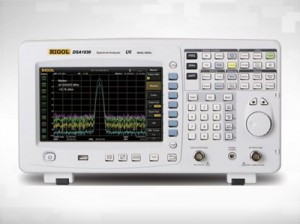

DSA1030A Spectrum Analyzer is a portable spectrum analyzer with small size and light weight and its outstanding performance can satisfy most of radio frequency applications. The digital IF technology enables exceptional system performance and stability. In addition, the wide-screen display, innovative parameter icon layout and user-friendly designs ensure easy and fast spectrum measurement.
Features
All Digital IF design
9 kHz to 3 GHz Frequency Range
-148 dBm Displayed Average Noise Level (DANL)
-88 dBc/Hz@10 kHz Oset Phase Noise
<1.0dB Total Amplitude Accuracy
10 Hz Minimum Resolution Bandwidth (RBW)
Standard EMI filter and Quasi-peak detector function
Unique widescreen display, friendly interface and easy-to-use operations
Distinguish the two nearby signals clearly with the 10Hz RBW
Readout the signal’s Phase Noise directly by using the standard the Noise Marker function
Compare the spectrums when change the RBW settings with different color trace
The advanced Channel Power measurement function
The advanced Occupied Bandwidth measurement function
AM demodulation signal with “Zero Span”
Readout the Spectrum Peak values with the Peak table function
The advanced Harmonic distortion measurement function
Standard EMI Filter and Quasi-peak Detector
DSA PC Software(Ultra Spectrum) provide more analysis and display functions such as the waterfall curves
TX1000 RF Demo Kit
DSA Accessories Package
Specifications
Spectrum Analyzer
Spectrum Analyzer Rigol DSA1030A
Display
21.6 cm (8.5″) TFT-Color-LCD with 65536 colors
Resolution
800 × 480 Pixel
Interfaces
USB-Host (for USB stick i.e. to save/load waveforms)USB for a PC connectionLAN for network connectionGPIB (IEE-488, General Purpose Interface Bus)The GPIB function is only available with the use of the optional available USB GPIB moduleVGA interface to connect an external display
Dimensions
399 mm × 223 mm × 159 mm (15.71″ × 8.78″ × 6.26″)
Weight
6.2 kg (13.67 lbs)
7.5 kg (16.54 lbs) with connected battery. The battery is not included.
Supported operation systems
Windows XP(32Bit), Vista(32Bit), Windows 7(32Bit)
Function
Spectrum Analyzer Rigol DSA1030A
Channels
1
Frequency Range
9 kHz to 3 GHz
Frequency Resolution
1 Hz
Internal Frequency Reference
10 MHz
Span
0 Hz (zero Span) 100 Hz to 3 GHz
DANL (without preamplifier)
(Displayed Average Noise level)
100 kHz to 10 MHz10 MHz to 2,5 GHz2,5 GHz to 3 GHz
DSA1030A 9KHZ to 3GHZ Spectrum Analyzer (obsolete)
Call For Price
Product Description
This product is no longer in production, it replace by new model DSA832E
DSA1030A Spectrum Analyzer is a portable spectrum analyzer with small size and light weight and its outstanding performance can satisfy most of radio frequency applications. The digital IF technology enables exceptional system performance and stability. In addition, the wide-screen display, innovative parameter icon layout and user-friendly designs ensure easy and fast spectrum measurement.
Features
DSA1030
DSA1020
Advanced Design and Performance
Unique widescreen display, friendly interface and easy-to-use operations
Distinguish the two nearby signals clearly with the 10Hz RBW
Readout the signal’s Phase Noise directly by using the standard the Noise Marker function
Compare the spectrums when change the RBW settings with different color trace
The advanced Channel Power measurement function
The advanced Occupied Bandwidth measurement function
AM demodulation signal with “Zero Span”
Readout the Spectrum Peak values with the Peak table function
The advanced Harmonic distortion measurement function
Standard EMI Filter and Quasi-peak Detector
DSA PC Software(Ultra Spectrum) provide more analysis and display functions such as the waterfall curves
TX1000 RF Demo Kit
DSA Accessories Package
Specifications
7.5 kg (16.54 lbs) with connected battery. The battery is not included.
(Displayed Average Noise level)
typical: -125 dBm
< -127dBm-3x(f/1GHz)dB
typical -130 dBm
< -115dBm
(Displayed Average Noise level)
1 MHz to 10 MHz10 MHz to 2,5 GHz2,5 GHz to 3 GHz
< -103dBm-3x(f/1MHz)dB
typical: -143 dBm
< -145dBm-3x(f/1GHz)dB
typical -148 dBm
< -133dBm
0 Hz (zero Span)
20 µs to 3000 s
