Description:
High quality and reliability the testing and measuring instruments manufacturer offers.Good cost-performance and short delivery time. The electromagnetic anechoic box that covers the inside of the shield box with an radio wave absorber.
Products Specification:
Small size: Portable and light weight type
Outside dimensions
380（W)×380（D)×165（H)mm (excluding projections)
Inside dimensions
315（W)×315（D)×100（H)mm
Weight approx.
3.5kg (without I/F Module)
Shielding characteristics(typ)
more than 70dB @ 2 .4GHz
Reflection loss
more than 20dB @ ≧ 2.4GHz, MYA-75
Connectors
2 pcs of SMA @ back
I/F Module installation capacity
1 module @ back
Option
Small size (MY1510)
I/F Module
Medium size (MY1520)
I/F Module
Wooden table
Radio wave absorber（MYA-77）
Radio wave absorber（MYA-79)
Large size (MY1530)
I/F Module
Wooden table
Turn table unit
Radio wave absorber（MYA-75）
Radio wave absorber（MYA-79)
I/F Module
The I/F module is a module on which AC supply, DC supply, LAN, USB, SMA, BNC, N, Triaxial and/or D-sub connectors are mounted. All of the I/F modules are common to Taurus series.

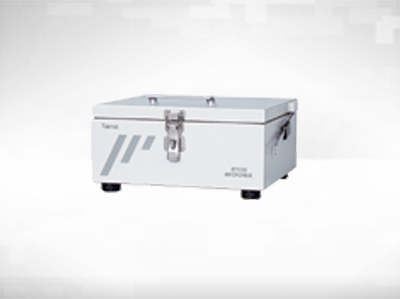

MY1510 Electromagnetic Anechoic Box (Small)
Call For Price
Product Description
Description:
High quality and reliability the testing and measuring instruments manufacturer offers.Good cost-performance and short delivery time. The electromagnetic anechoic box that covers the inside of the shield box with an radio wave absorber.
Products Specification:
Small size: Portable and light weight type
Option
I/F Module
The I/F module is a module on which AC supply, DC supply, LAN, USB, SMA, BNC, N, Triaxial and/or D-sub connectors are mounted. All of the I/F modules are common to Taurus series.
Medium size installing two I/F modules:
