MY5310 using the ferrite tile as the radio wave absorber are optimum for EMI test. The compact and broadband antenna by our own development is prepared as option. Capable of EMI test in frequency range 30MHz to 3GHz if upgraded to MR2300 system.
Products Specifications:
Outside dimensions
1340(W) x 1210(H) x 1030(D)mm （excluding casters and projections）
Inside dimensions
1230(W) x 920(H) x 920(D)mm
Door opening dimensions
410(W) x 710(H)mm
Weight
approx. 460kg
Turntable dimension
220mm in diameter
Turntable load
10kg
Radio wave absorber
Ferrite tile structured double
Connector
Coaxial: N(J)@antenna out N(J)@for EUT D-sub: 25 pins

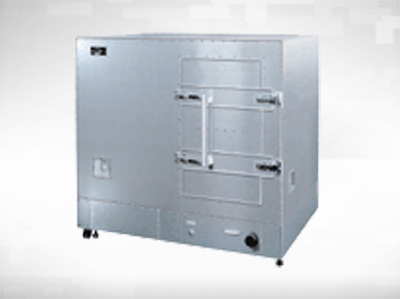

MY5310 Electromagnetic Anechoic Box with Ferrite Tile (Medium)
Call For Price
Product Description
Description:
MY5310 using the ferrite tile as the radio wave absorber are optimum for EMI test. The compact and broadband antenna by our own development is prepared as option. Capable of EMI test in frequency range 30MHz to 3GHz if upgraded to MR2300 system.
Products Specifications:
Broadband antenna (MAN101/102)
（original name by us）

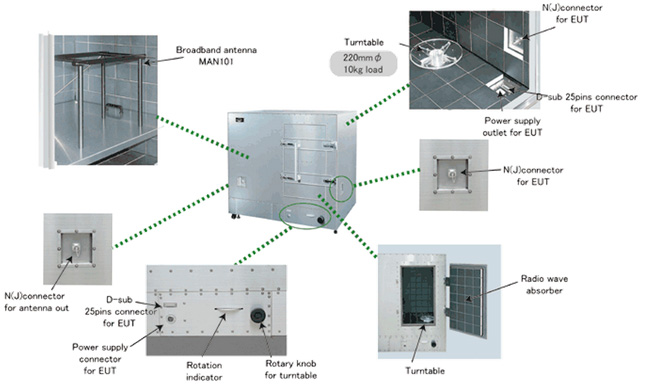

Structure Of Anechoic Box MY5310
