1mHz to 20MHz / 30Vp-p (at open load) Highly accurate and stable frequency due to synthesized method
Formation of arbitrary waveform with Windows OS. Equipping with Dual Functions of Function
Synthesizer and Arbitrary Waveform Generator
Features:
1. 1mHz to 20MHz / 30Vp-p (at open load)
2. High accuracy and stability of frequency due to synthesizing method
3. Arbitrary waveform generator function (10Mwords / s, 12bits, 128Kwords)
4. BURST / GATE functions
5. Dual functions of linear and logarithmic sweep
6. Wide application due to VCF function

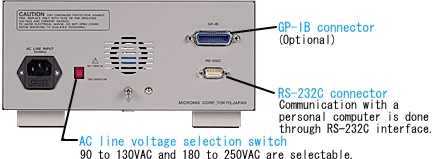

7. RS-232C (standard) and GP-IB (optional)
Simplified and low-cost design with high accuracy, high stability, and dual functions
The model MFG206 synthesizer is a function generator equipped with a phase-locked loop (PLL) circuit that is capable of generating a highly accurate and stable frequency. The arbitrary function synthesizer can be used for the following applications : (1) A function synthesizer that can generate sine, triangle, or square wave in the wide bandwidth of 1mHz to 20MHz with a wide amplitude, as high as 30Vp-p at open load. (2) A 12-bit and 128K-word arbitrary waveform generator that has a sampling frequency of 10MHz maximum.
The model MFG206 synthesizer is a superb function generator having high signal accuracy and stability despite its simplified and low cost design, whose superior cost effectiveness justifies its uses for many applications.
Function synthesizer section
Wide frequency range : 1mHz to 20MHz
The synthesizer can output signals that range as wide as 1mHz (0.001Hz) to 20MHz. Note that the upper limit frequency for the triangular wave is 10 MHz.
Wide amplitude : 30Vp-p
The synthesizer can output a signal that has wide amplitude, as high as 30Vp-p at open load. The maximum amplitude is 15Vp-p when it is terminated with a 50-ohm load.
Synthesizing method
The synthesizer generates the sine wave by means of the three pairs of PLL circuits (PLL1, PLL2, and PLL3) and frequency mixers (MIX1, MIX2, and MIX3). The triangle and square waves are generated based on the PLL circuit formed between the sine wave as a reference frequency and the triangle wave generator as a voltage control oscillator.
As stated above, all the three waveforms are output as highly stable wave signals that are phase-locked by the reference crystal oscillator.
Burst and gate functions
Burst or gated waveform can also be output in addition to the continuous waves.
(1) Burst The synthesizer can output a given waveform having a specified cycle number (1 to 4096) starting from the predetermined phase (-90° to +90° with 1° step). The wave output begins at the rising edge of the TRIG input pulse or at the manual operation. The burst waves can be output in the frequency range of 0.100Hz to 999.9kHz.
(2) Gate The wave is output at the predetermined phase (-90° to +90° with 1° step) when TRIG input reaches the high level. The wave output stops at the predetermined phase after TRIG input reaches the low level.
The gated wave can be output in the frequency range of 0.1000Hz to 999.9kHz.

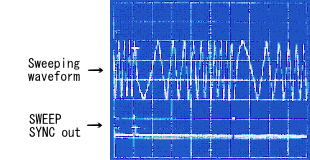

Sweep
The frequency can be swept up to the ratio of 1 : 100 by setting the start and stop frequencies. The sweep time can be set within the range of 0.01 to 10 seconds. It is also possible to select the sweep mode, either to the linear sweep or logarithmic sweep mode. In addition, the SWEEP SYNC output synchronized with the sweep is also available. This is a very convenient function. The four sweep ranges (200kHz to 20MHz, 10kHz to 1MHz, 1kHz to 100kHz and 100Hz to 10kHz) will be automatically selected after setting the start and stop frequencies. An error message will be displayed on the LCD unit if the two frequencies are set beyond the specified sweep frequency range.
Example : {Start frequency : 20kHz; Stop frequency : 2MHz} → Error message
VCF input
A frequency is output, which is proportional to the voltage applied to the VCF input. The dynamic range is approximately 1 : 100. Six sweep ranges are available (200kHz to 20MHz, 10kHz to 1MHz, 1kHz to 100kHz, 100Hz to 10kHz, 10Hz to 1kHz, and 1Hz to 100Hz).
Example : 10V → 20MHz 0.1V → 200kHz (In the frequency range of [200kHz to 20MHz])
Saving and loading of the settings
A maximum of 10 parameters can be saved in the memory. The saved data will not be erased even when the equipment power supply is turned off since it is backed up by a battery.
Applications of the function synthesizer
(1) Applications of the burst function (Driver for ultrasonic devices)
The synthesizer can be used as an optimum driver for the ultrasonic devices since it can output the high voltage signal of 30V, and a wide variety of waveforms can be created by varying the phase and cycle number. The signal can be obtained by inputting the pulses into the TRIG input.
(2) Application of the sweep function (Measurement of the frequency characteristics)
Connect the FUNC output to the input terminal of a component such as the filter, amplifier, or equivalent. Then, connect the component output to CH1 of the oscilloscope and SWEEP SYNC output to CH2. The sweep range can be varied up to 100 times either in the linear or logarithmic mode.

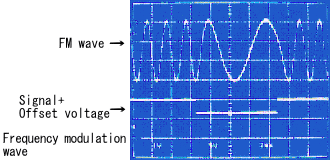

(3) Application of the VCF function (Frequency modulator)
Apply the signal and offset voltage to the VCF input. Any desired frequency modulation effect can be obtained by setting the offset voltage to the carrier frequency.
Arbitrary waveform generator
Overall construction
The arbitrary waveform generator creates and edits a given waveform using the Windows 98/Me/2000/XP (the software to generate the arbitrary waveform and RS-232C cable are included as the standard accessories). The waveform is then transmitted to the MFG206 synthesizer. Any waveform can be easily formed and edited using the Windows. In addition, this function can also be used for a wide variety of applications with its high-capacity and high-resolution waveform data (128K words and l2 bits per word) since its sampling frequency is as high as 10MHz maximum.
Forming of a waveform
(1) Standard waveform input
Sine, triangle, square, ramp, sin X / X, (1-ε-ax), ε-ax, white noise, and DC.
There are nine standard waveforms available as stated above. It is also possible to form a special waveform since the parameters can be precisely specified for any one of the waveforms shown above.
Parameter
Setting value
Subject waveform
Data number
8 to 131072
All of waveform
Amplitude
0.001 to 1.00
Waveforms excluding DC
Offset
-1.00 to +1.00
All of waveforms
Cycle
1.00 to 100.00
Waveforms excluding white noise and DC
Phase (°)
0.00 to 360.00
Waveforms excluding white noise and DC
Duty ratio (%)
0.00 to 100.00
Square wave
Zero cross
0 to 100
sinX / X
Damp fact
-15 to +15
(1-ε-ax) and ε-ax
*Time can be plotted on the horizontal axis in addition to the number of data. The voltage can be plotted on the vertical axis in addition to the full scale.
(2) Line input
Specified two points can be connected by a straight line.
Formation of a waveform by straight lines
(3) Calculation input
Addition (+) Specified two waveforms can be added.
Subtraction (-) Specified two waveforms can be subtracted.M
Multiplication (×) Specified two waveforms can be multiplied.
Clipping – A value specified on the Y-axis can be clipped.
Absolute value – A value specified on the Y-axis can be converted into an absolute value.
Mirror – Data can be switched vertically or horizontally (upside down or right-hand side to the left and left-hand side to the right).
Smoothing – The waveform can be averaged (moving average).
Resizing – The data size can be changed, either on the X-axis or Y-axis or both.
Offset – An offset can be added to the Y-axis.
(4) One-point input – A given waveform can be created by inputting multiple points.
Editing of the waveform
(1) Cut – A specified range is cut.
(2) Copy – A given waveform within the specified range is copied.
(3) Paste – A separately specified waveform is pasted.
(4) Undo – The operation that has just been made is cancelled.
File
(1) New – A window to form a new waveform is opened.
(2) Open – File is opened.
(3) Close – File is closed.
(4) Save – The data contained in the waveform creation window is saved.
(5) Data – import The data in the ASCII format is read.
(6) Data – export The data in the ASCII format is output.
(7) Print – The waveform is printed out.
(8) Transmit – The waveform data is transmitted to the MFG206.
Specifications
Function synthesizer section
The following specification is guaranteed at 50% duty cycle and DC OFFSET : off.
The following specification is guaranteed at 50% duty cycle and DC OFFSET : off.
Waveform characteristics
Kinds of waveforms
Sine, Triangle, Square wave and DC
Sine wave
Distortion
less than 1% @ 1kHz
Triangle wave
Lineality
more than 99% @ 10 to 90% of amplitude and 1mHz to 9.999kHz
Square wave
Rise / Fall time
less than 16ns @ 10 to 90% of amplitude and 1kHz
Symmetry
less than 1% @ 1kHz
Overshoot
less than 5%
DC
Output range
-15V to +15V @ open load
Setting resolution
sign + 3digits
Accuracy
less than (±5% of setting ±20mV)
Time characteristics
Output frequency
Frequency range
1mHz to 20MHz (1mHz to 10MHz at triangle wave)
Setting resolution
4digits
Accuracy
less than ±50ppm (0 to 40°C)
Duty ratio
This item is available for triangle and square waves
Setting range
5 to 95 % / 1% step (0.001Hz to 9.999kHz)
25 to 75 % / 1% step (10.00 to 999.9kHz)
50% (1.000 to 20.00MHz)
Accuracy
less than ±1% (0.001Hz to 9.999kHz)
less than ±7% (10.00 to 999.9kHz)
Output characteristics
Output resistance
50ohm ±5%
Amplitude
Setting range
300mVp-p to 30Vp-p @ open load
Setting resolution
3digits
Accuracy
less than (±5% of setting ±10mV) @ 1kHz
Flatness
less than ±3% (0.001 to 999.9Hz)
less than ±3.5% (1.000 to 999.9kHz)
less than ±5% (1.000 to 4.999MHz)
less than +5% / -15% (sine, 5.000MHz to 20.00MHz)
less than +5% / -25% (triangle, 5.000MHz to 10.00MHz)
DC offset
Output range
0V ±15V @ open load and limited due to amplitude range
Setting resolution
sign +3digits
Accuracy
less than (±7% of setting ±20mV)
Output mode
Continue
Continuous wave is output
Burst
Frequency range
0.100Hz to 999.9kHz
Frequency accuracy
less than (±10% of setting)
Burst rate
DC to 500kHz
Cycle number range
1 to 4096 cycles
Phase range
-90°C to +90°C / 1°C step (0.100Hz to 9.999kHz)
-75°C to +75°C / 1°C step (10.00 to 999. 9kHz)
Phase accuracy
less than ±3°C (0.100Hz to 1.000kHz)
Trigger source
External and Manual
Gate
Frequency range
0.100Hz to 999.9kHz
Frequency accuracy
less than (±10% of setting)
Gate rate
DC to 500kHz
Phase range
-90°C to +90°C / 1°C step (0.100Hz to 9.999kHz)
-75°C to +75°C / 1°C step (10.00 to 999. 9kHz)
Phase accuracy
less than ±3°C (0.100Hz to 1.000kHz)
Trigger source
External
Sweep function
Subject waveform
Sine wave
Sweep time axis
Linear and Logarithmic
Sweep time range
0.01 to 10.0 sec / 0.01sec step
Sweep time accuracy
less than (±10% of setting)
Start freq. range
100.0Hz to 20.00MHz
Start freq. accuracy
less than (±5% of setting) @ sweep range of 200kHz to 20MHz
less than (±10% of setting ±0.05K [Hz] )
(excepting above sweep range, K : maximum value of sweep range)
Stop freq. range
100.0Hz to 20.00MHz
Stop freq. accuracy
less than (±5% of setting ±10 × (1+T) [kHz] )
@ sweep range of 200kHz to 20MHz
less than (±10% of setting ±0.05K [Hz] )
(excepting above sweep range, K : maximum value of sweep range)
Sweep range
4 ranges
( [200kHz to 20MHz], [10 kHz to1MHz],
[1kHz to 100 kHz], [100Hz to 10 kHz] )
Control input
Trigger input
Input resistance
10kohm ±5%
Threshold level
TTL level
Min. pulse width
more than 25ns
Input damage level
±20V (DC + ACpeak) max.
VCF input
Input resistance
10kohm ±5%
Frequency range
6 ranges
( [200kHz to 20MHz], [10kHz to 1MHz], [1kHz to 100kHz],
[100Hz to 10kHz], [10Hz to 1kHz], [1Hz to 100Hz] )
Max. sweep width
approx. 1 : 100 @ 0.1 to 10V input
Frequency accuracy
less than (±10% of setting ±0.05K [Hz] ) (sine wave, K : maximum value of sweep range)
Input damage level
±20V (DC + ACpeak) max.
Control output
SYNC output
Waveform
Square wave
Output level
TTL level
Rise/Fall time
less than 25ns
Output resistance
approx. 100ohm
Sweep SYNC output
Waveform
Square wave
Output level
TTL level
Rise/Fall time
less than 25ns
Output resistance
approx. 100ohm
Arbitrary waveform generator section
Waveform
Waveform
Horizontal axis
8 to 131072 (128K) words
Vertical axis
12 bits
Sampling frequency
Setting range
100Hz to 10MHz / 4digits setting
Accuracy
less than ±50ppm (0 to 40°C)
Forming of waveform
Standard waveforms
Sine, Triangle, Square, Ramp, sinX / X, (1-ε-ax), ε-ax, White noise and DC
MFG206 Dual Function Synthesizer and Arbitrary Waveform Generator
Call For Price
Product Description
Description:
1mHz to 20MHz / 30Vp-p (at open load) Highly accurate and stable frequency due to synthesized method
Formation of arbitrary waveform with Windows OS. Equipping with Dual Functions of Function
Synthesizer and Arbitrary Waveform Generator
Features:
1. 1mHz to 20MHz / 30Vp-p (at open load)
2. High accuracy and stability of frequency due to synthesizing method
3. Arbitrary waveform generator function (10Mwords / s, 12bits, 128Kwords)
4. BURST / GATE functions
5. Dual functions of linear and logarithmic sweep
6. Wide application due to VCF function
7. RS-232C (standard) and GP-IB (optional)
Simplified and low-cost design with high accuracy, high stability, and dual functions
The model MFG206 synthesizer is a function generator equipped with a phase-locked loop (PLL) circuit that is capable of generating a highly accurate and stable frequency. The arbitrary function synthesizer can be used for the following applications : (1) A function synthesizer that can generate sine, triangle, or square wave in the wide bandwidth of 1mHz to 20MHz with a wide amplitude, as high as 30Vp-p at open load. (2) A 12-bit and 128K-word arbitrary waveform generator that has a sampling frequency of 10MHz maximum.
The model MFG206 synthesizer is a superb function generator having high signal accuracy and stability despite its simplified and low cost design, whose superior cost effectiveness justifies its uses for many applications.
Function synthesizer section
Wide frequency range : 1mHz to 20MHz
The synthesizer can output signals that range as wide as 1mHz (0.001Hz) to 20MHz. Note that the upper limit frequency for the triangular wave is 10 MHz.
Wide amplitude : 30Vp-p
The synthesizer can output a signal that has wide amplitude, as high as 30Vp-p at open load. The maximum amplitude is 15Vp-p when it is terminated with a 50-ohm load.
Synthesizing method
The synthesizer generates the sine wave by means of the three pairs of PLL circuits (PLL1, PLL2, and PLL3) and frequency mixers (MIX1, MIX2, and MIX3). The triangle and square waves are generated based on the PLL circuit formed between the sine wave as a reference frequency and the triangle wave generator as a voltage control oscillator.
As stated above, all the three waveforms are output as highly stable wave signals that are phase-locked by the reference crystal oscillator.
Burst and gate functions
Burst or gated waveform can also be output in addition to the continuous waves.
(1) Burst The synthesizer can output a given waveform having a specified cycle number (1 to 4096) starting from the predetermined phase (-90° to +90° with 1° step). The wave output begins at the rising edge of the TRIG input pulse or at the manual operation. The burst waves can be output in the frequency range of 0.100Hz to 999.9kHz.
(2) Gate The wave is output at the predetermined phase (-90° to +90° with 1° step) when TRIG input reaches the high level. The wave output stops at the predetermined phase after TRIG input reaches the low level.
The gated wave can be output in the frequency range of 0.1000Hz to 999.9kHz.
Sweep
The frequency can be swept up to the ratio of 1 : 100 by setting the start and stop frequencies. The sweep time can be set within the range of 0.01 to 10 seconds. It is also possible to select the sweep mode, either to the linear sweep or logarithmic sweep mode. In addition, the SWEEP SYNC output synchronized with the sweep is also available. This is a very convenient function. The four sweep ranges (200kHz to 20MHz, 10kHz to 1MHz, 1kHz to 100kHz and 100Hz to 10kHz) will be automatically selected after setting the start and stop frequencies. An error message will be displayed on the LCD unit if the two frequencies are set beyond the specified sweep frequency range.
Example : {Start frequency : 20kHz; Stop frequency : 2MHz} → Error message
VCF input
A frequency is output, which is proportional to the voltage applied to the VCF input. The dynamic range is approximately 1 : 100. Six sweep ranges are available (200kHz to 20MHz, 10kHz to 1MHz, 1kHz to 100kHz, 100Hz to 10kHz, 10Hz to 1kHz, and 1Hz to 100Hz).
Example : 10V → 20MHz 0.1V → 200kHz (In the frequency range of [200kHz to 20MHz])
Saving and loading of the settings
A maximum of 10 parameters can be saved in the memory. The saved data will not be erased even when the equipment power supply is turned off since it is backed up by a battery.
Applications of the function synthesizer
(1) Applications of the burst function (Driver for ultrasonic devices)
The synthesizer can be used as an optimum driver for the ultrasonic devices since it can output the high voltage signal of 30V, and a wide variety of waveforms can be created by varying the phase and cycle number. The signal can be obtained by inputting the pulses into the TRIG input.
(2) Application of the sweep function (Measurement of the frequency characteristics)
Connect the FUNC output to the input terminal of a component such as the filter, amplifier, or equivalent. Then, connect the component output to CH1 of the oscilloscope and SWEEP SYNC output to CH2. The sweep range can be varied up to 100 times either in the linear or logarithmic mode.
(3) Application of the VCF function (Frequency modulator)
Apply the signal and offset voltage to the VCF input. Any desired frequency modulation effect can be obtained by setting the offset voltage to the carrier frequency.
Arbitrary waveform generator
Overall construction
The arbitrary waveform generator creates and edits a given waveform using the Windows 98/Me/2000/XP (the software to generate the arbitrary waveform and RS-232C cable are included as the standard accessories). The waveform is then transmitted to the MFG206 synthesizer. Any waveform can be easily formed and edited using the Windows. In addition, this function can also be used for a wide variety of applications with its high-capacity and high-resolution waveform data (128K words and l2 bits per word) since its sampling frequency is as high as 10MHz maximum.
Forming of a waveform
(1) Standard waveform input
Sine, triangle, square, ramp, sin X / X, (1-ε-ax), ε-ax, white noise, and DC.
There are nine standard waveforms available as stated above. It is also possible to form a special waveform since the parameters can be precisely specified for any one of the waveforms shown above.
*Time can be plotted on the horizontal axis in addition to the number of data. The voltage can be plotted on the vertical axis in addition to the full scale.
(2) Line input
Specified two points can be connected by a straight line.
Formation of a waveform by straight lines
(3) Calculation input
(4) One-point input – A given waveform can be created by inputting multiple points.
Editing of the waveform
(1) Cut – A specified range is cut.
(2) Copy – A given waveform within the specified range is copied.
(3) Paste – A separately specified waveform is pasted.
(4) Undo – The operation that has just been made is cancelled.
File
(1) New – A window to form a new waveform is opened.
(2) Open – File is opened.
(3) Close – File is closed.
(4) Save – The data contained in the waveform creation window is saved.
(5) Data – import The data in the ASCII format is read.
(6) Data – export The data in the ASCII format is output.
(7) Print – The waveform is printed out.
(8) Transmit – The waveform data is transmitted to the MFG206.
Specifications
Function synthesizer section
The following specification is guaranteed at 50% duty cycle and DC OFFSET : off.
25 to 75 % / 1% step (10.00 to 999.9kHz)
50% (1.000 to 20.00MHz)
less than ±7% (10.00 to 999.9kHz)
less than ±3.5% (1.000 to 999.9kHz)
less than ±5% (1.000 to 4.999MHz)
less than +5% / -15% (sine, 5.000MHz to 20.00MHz)
less than +5% / -25% (triangle, 5.000MHz to 10.00MHz)
-75°C to +75°C / 1°C step (10.00 to 999. 9kHz)
-75°C to +75°C / 1°C step (10.00 to 999. 9kHz)
less than (±10% of setting ±0.05K [Hz] )
(excepting above sweep range, K : maximum value of sweep range)
@ sweep range of 200kHz to 20MHz
less than (±10% of setting ±0.05K [Hz] )
(excepting above sweep range, K : maximum value of sweep range)
[1kHz to 100 kHz], [100Hz to 10 kHz] )
[100Hz to 10kHz], [10Hz to 1kHz], [1Hz to 100Hz] )
Arbitrary waveform generator section
setup, Transmit, Exit
Others
(selected by a switch located on a rear panel)
Floppy disk for arbitrary waveform generator (1pc), RS-232C cable (1pc)
Share this:
