DG1022 20MHZ Function/Arbitrary Waveform Generator

Categories: , .

Product Description

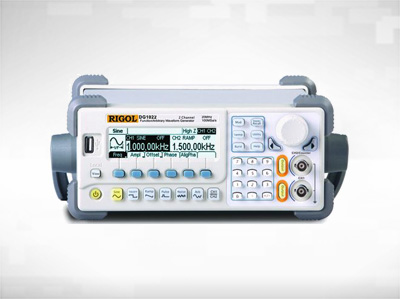

DG1000 Series Function/Arbitrary Waveform Generators

DG1000 series function/arbitrary waveform generators use Direct Digital Synthesis (DDS) technology. They could generate accurate, stable, clean, low distortion signals.

Features and Benefits

  • Adopt advanced DDS technology; dual channel output; 100 MSa/s maximum sampling rate; 14 bits vertical accuracy
  • Output 5 standard waveforms; built-in 48 arbitrary waveforms
  • Abundant modulation functions: AM, FM, PM, FSK, linear/logarithm sweep and burst
  • Abundant output and input: waveform output;synchronous signal output; external modulation source, external 10 MHz reference clock input,external trigger input
  • Unique channel coupling and channel copy
  • Built-in high precision and wide band counter, the measurement range: 100 mHz ~ 200 MHz (single channel)
  • Standard configuration interfaces: USB Device & USB Host, and support U-disc storage
  • Seamlessly interconnect with DS1000 series digital oscilloscope
  • Powerful arbitrary waveform editing software”UltraWave”
  • Support remote control by commands
  • A variety of display modes
  • Clear graphical interface
  • Support Chinese and English menu and input
  • Button-help makes information getting easier
  • File management (support for USB flash device and local storage)
Generator Function / Waveform Generator Rigol DG1022
Display Monochrome LCD
Resolution 256 × 64 Pixel
Interfaces
  • USB-Host (for USB stick i.e. to save/load waveforms)
  • USB for a PC connection
Dimensions
  • 232 mm × 288 mm × 108 mm
  • (9.13″ × 11.34″ × 4.25″)
Weight 2.7 kg (5.95 lbs)
Supported operation systems Windows XP (32Bit + 64Bit), Vista (32Bit + 64Bit), Windows 7 (32Bit + 64Bit)
Function Function / Waveform Generator Rigol DG1022
Channels 2
Signal Output Sine, Rectangle, Pulse, Ramp, 48 predefined arbitrary Waveforms, freely definineable arbitrary Waveforms, Noise
CH1 only: AM, FM, PM, FSK, Sweep, Burst and Sync Output
Vertical Resolution
  • 14 bit (Channel 1)
  • 10 bit (Channel 2)
Amplitudes
  • Channel 1:
  • 2 mVpp ~ 10 Vpp (50 Ω)
  • 4 mVpp ~ 20 Vpp (high impedance)
  • Channel 2:
  • 2 mVpp ~ 3 Vpp (50 Ω
  • 4 mVpp ~ 6 Vpp (high impedance)
DC Offset
  • Channel 1:
  • ±5 V (50 Ω)
  • ±10 V (high impedance)
  • Channel 2:
  • ±1.5 V (50 Ω)
  • ±3 V (high impedance)
Sample Rate 100 MSa/s
Frequency Range Sine 1 µHz – 20 MHz
Frequency Range Rectangle 1 µHz – 5 MHz
Frequency Range Pulse 500 µHz – 3 MHz
Frequency Range Ramp 1 µHz – 150 KHz
Frequency Range Arbitrary 1 µHz – 5 MHz
Frequency Range Noise 5 MHz (-3db)
Resolution 1 µHz

User Manual

For detailed performance parameters and technical specifications, download DG1022 Series Datasheet
