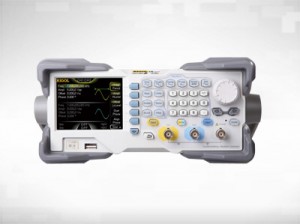

DG1032Z-Function-Arbitrary-Function-Generator

DG1062Z 60MHZ 2CH Arbitrary Waveform Generator

RM4,290.00

2 in stock

Categories: , .

Product Description

DG1000Z series function/arbitrary waveform generator is a multi-functional generator that combines many functions in one, including Function Generator, Arbitrary Waveform Generator, Noise Generator, Pulse Generator, Harmonics Generator, Analog/Digital Modulator and Counter. As a multi-functional, high performance and portable generator, it will be a new selection in education, R&D, production, test and etc.

  • Innovative SiFi (Signal Fidelity): generate arb waveform point-by-point, restore signal distortionless, precisely adjustable sample rate and low jitter (200ps)
  • Arbitrary waveform memory: 8Mpts (standard), 16Mpts (optional)
  • Standard 2 full functional channels can be used as two independent generators
  • ±1ppm frequency stability, -125dBc/Hz phase noise
  • Built-in 8 orders harmonics generator
  • Built-in 7 digits/s full function frequency counter with 200MHz bandwidth
  • Up to 160 built-in waveforms
  • 200MSa/s sample rate, 14bits vertical resolution
  • Convenient arbitrary waveform editing interface
  • Versatile modulation types: AM, FM, PM, ASK, FSK, PSK and PWM
  • Standard waveform summing function
  • Standard channel track function
  • Standard interfaces: USB Host& Device, LAN(LXI Core Device 2011)
  • 3.5 inches TFT color display

DG1000Z Series Function/Arbitrary Waveform Generator Front
DG1000Z-Series-FunctionArbitrary-Waveform-Generator-Front

DG1000Z Series Function/Arbitrary Waveform Generator Back
DG1000Z-Series-Function-Arbitrary-Waveform-Generator-Back

Standard 2 full functional channels
Standard-2-full-functional-channels

Arbitrary waveform function with innovative SiFi technology
Arbitrary-waveform-function-with-innovative-SiFi-technology

Burst function
Burst-function

Multiple analog and digital modulations
Multiple-analog-and-digital-modulations

Standard harmonic generator
Standard-harmonic-generator

Waveform summing function
Waveform-summing-function

Channels and system setting
Channels-and-system-setting

In line with LXI Core Device 2011
In-line-with-LXI-Core-Device-2011

Specifications:

Model DG1032Z DG1062Z
Channel 2 2
Max Frequency 30 MHz 60 MHz
Sample Rate 200 MSa/s
Waveform
Basic Waveform Sine, Square, Ramp, Pulse, Noise
Built-in Arbitrary Waveform 160 kinds, including Sinc, Exponential Rise, Exponential Fall, ECG, Gauss, HaverSine, Lorentz, Dual-Tone, DC Voltage, etc.
Frequency Characteristics
Sine 1 μHz to 30 MHz 1 μHz to 60MHz
Square 1 μHz to 15 MHz 1 μHz to 25 MHz
Ramp 1 μHz to 500kHz 1 μHz to 1MHz
Pulse 1 μHz to 15 MHz 1 μHz to 25 MHz
Harmonic 1uHz to 10MHz 1uHz to 20MHz
Noise (-3dB) 30 MHz bandwidth 60 MHz bandwidth
Arbitrary Waveform 1 μHz to 10 MHz 1 μHz to 20 MHz
Resolution 1 μHz
Accuracy ±1 ppm of the setting value, 18℃ to 28℃
Sine Wave Spectrum Purity
Harmonic Distortion Typical (0 dBm)DC-10 MHz (included):            <-65 dBc10 MHz to 30 MHz (included):      <-55 dBc30 MHz to 60 MHz (included):      <-50 dBc
Total Harmonic Distortion <0.075% (10 Hz to 20 kHz, 0 dBm)
Spurious (non-harmonic) Typical (0 dBm)S10 MHz    <-70 dBc>10 MHz    <-70 dBc + 6 dB/octave
Phase Noise Typical (0 dBm, 10 kHz offset)10 MHz:  <-125 dBc/Hz
Signal Characteristics
Square
Rise/Fall Time Typical (1 Vpp)<10ns
Overshoot Typical (100 kHz, 1 Vpp)≤5%
Duty Cycle 0.01% to 99.99% (limited by the current frequency setting)
Non-symmetry 1% of the period + 5 ns
Jitter (rms) Typical (1 Vpp)≤5 MHz   2 ppm + 200 ps> 5 MHz   200 ps
Ramp
Linearity ≤1% of peak output (typical, 1 kHz, 1 VPP, 100% symmetry)
Symmetry 0% to 100%
Pulse
Pulse Width ≥16 ns (limited by the current frequency setting)
Rising/Falling Edge ≥10 ns (limited by the current frequency setting and pulse width setting)
Overshoot Typical (1 Vpp)≤5%
Jitter (rms) Typical (1 Vpp)≤5 MHz   2 ppm + 200 ps> 5 MHz   200 ps
Arbitrary Waveform
Waveform Length 8 pts to 2 Mpts (16 Mpts optional)
Vertical Resolution 14 bits
Sample Rate 200MSa/s
Min Rise/Fall Time Typical (1 Vpp)<5 ns
Jitter (rms) Typical (1 Vpp)≤5 MHz   2 ppm + 200 ps> 5 MHz   200 ps
Editing Mode Point Edit, Block Edit, Insert Built-in Waveform
Harmonic Output
Harmonic Order ≤8
Harmonic Type Even Harmonic, Odd harmonic, Order Harmonic, User
Harmonic Amplitude The amplitude of each order of harmonic can be set
Harmonic Phase The phase of each order of harmonic can be set
Output Characteristics
Amplitude (into 50 Ω)
Range ≤10 MHz: 2.5 mVpp to 10 Vpp≤30 MHz: 2.5 mVpp to 5.0 Vpp≤60 MHz: 2.5 mVpp to 2.5 Vpp
Accuracy Typical (1 kHz sine, 0 V offset, >10 mVpp, auto)±1% of the setting value ±1 mV
Flatness Typical (sine, 2.5 Vpp)≤10 MHz         ±0.1 dB≤60 MHz         ±0.2 dB
Unit Vpp, Vrms, dBm
Resolution 0.1mVpp or 4 digits
Offset (into 50 Ω)
Range (Peak ac+dc) ±5 V
Accuracy 1% of the setting value + 5 mV + 0.5% of the amplitude
Waveform Output
Output Impedance 50 Ω (typical)
Protection Short-circuit protection, automatically disable the waveform output when overload occurs
Modulation Characteristics
Modulation Type AM, FM, PM, ASK, FSK, PSK, PWM
AM
Carrier Waveform Sine, Square, Ramp, Arb (except DC)
Source Internal/External
Modulating Waveform Sine, Square, Ramp, Noise, Arb
Modulation Depth 0% to 120%
Modulating Frequency 2 mHz to 1 MHz
FM
Carrier Waveform Sine, Square, Ramp, Arb (except DC)
Source Internal/External
Modulating Waveform Sine, Square, Ramp, Noise, Arb
Phase Deviation 0° to 360°
Modulating Frequency 2 mHz to 1 MHz
PM
Carrier Waveform Sine, Square, Ramp, Arb (except DC)
Source Internal/External
Modulating Waveform Sine, Square, Ramp, Noise, Arb
Phase Deviation 0° to 360°
Width Deviation 0% to 100% of the pulse width
Modulating Frequency 2 mHz to 1 MHz
ASK
Carrier Waveform Sine, Square, Ramp, Arb (except DC)
Source Internal/External
Modulating Waveform Square with 50% duty cycle
Key Frequency 2 mHz to 1 MHz
FSK
Carrier Waveform Sine, Square, Ramp, Arb (except DC)
Source Internal/External
Modulating Waveform Square with 50% duty cycle
Key Frequency 2 mHz to 1 MHz
PSK
Carrier Waveform Sine, Square, Ramp, Arb (except DC)
Source Internal/External
Modulating Waveform Square with 50% duty cycle
Key Frequency 2 mHz to 1 MHz
PWM
Carrier Waveform Pulse
Source Internal/External
Modulating Waveform Sine, Square, Ramp, Noise, Arb
Width Deviation 0% to 100% of the pulse width
Modulating Frequency 2 mHz to 1 MHz
External Modulation Input
Input Range 75 mVRMS to ±5 Vac + dc
Input Bandwidth 50 kHz
Input Impedance 1000Ω
Burst Characteristics
Carrier Waveform Sine, Square, Ramp, Pulse, Noise, Arb (except DC)
Carrier Frequency 2 mHz to 30 MHz 2 mHz to 60 MHz
Burst Count 1 to 1,000,000 or Infinite
Start/Stop Phase 0° to 360°
Internal Period 1  s to 500 s
Gated Source External Trigger
Trigger Source Internal, External or Manual
Trigger Delay 0 ns to 100 s
Sweep Characteristics
Carrier Waveform Sine, Square, Ramp, Arb (except DC)
Type Linear, Log or Step
Direction Up or Down
Start/Stop Frequency The same with the upper/lower limit of the corresponding carrier frequency
Sweep Time 1 ms to 500 s
Hold/Return Time 0 ms to 500 s
Trigger Source Internal, External or Manual
Marker Falling edge of the sync signal (programmable)
Frequency Counter
Function Frequency, Period, Positive/Negative Pulse Width, Duty Cycle
Frequency Resolution 7 digits/second (Gate Time = 1s)
Frequency Range 1  Hz to 200 MHz
Period Measurement Measurement Range 5ns to 16 days
Voltage Range and Sensitivity (non-modulating signal)
DC Coupling DC Offset Rage
1 Hz to 100 MHz 50 mVRMS to ±2.5 Vac + dc
100 MHz to 200 MHz 100 mVRMS to ±2.5 Vac + dc
AC Coupling 1  Hz to 100 MHz 50 mVRMS to ±2.5 Vpp
100 MHz to 200 MHz 100 mVRMS to ±2.5 Vpp
Pulse Width and Duty Cycle Measurement
Frequency and AmplitudeRanges 1  Hz to 25 MHz 50 mVRMS to ±2.5 Vac + dc DC Coupling
Pulse Width Min Pulse Width ≥20 ns
Pulse Width Resolution 5 ns
Duty Cycle Measurement Range (display) 0% to 100%
Input Signal Range Brakedown Voltage ±7Vac+dc Input Impedance = 1 MΩ
Input Adjustment Coupling Mode AC DC
High-frequency Rejection On: Input Bandwidth = 250 kHz; Off: Input Bandwidth = 200 MHz
Input Trigger Trigger Level Range -2.5V to +2.5V
Trigger Sensitivity Range 0% (about 140 mV hysteresis voltage) to 100% (about 2 mVhysteresis voltage)
Gate Time GateTime1 1.310ms
GateTime2 10.48ms
GateTime3 166.7ms
GateTime4 1.342s
GateTime5 10.73s
GataTime6 >10s
Sync Output
Level TTL-compatible
Impedance
Dimensions (WxHxD)
Weight Without Package: 3.2 kgWith Package: 4.5 kg
Interfaces USB Host, USB Device, LAN
IP Protection IP2X
Calibration Interval 1 year recommended calibration interval
Trigger Characteristics
Trigger Input
Level TTL-compatible
Slope Rising or falling (selectable)
Pulse Width >100ns
Latency Sweep: <100 ns (typical)Burst: <300 ns (typical)
Trigger Output
Level TTL-compatible
Pulse Width > 60 ns (typical)
Maximum Frequency 1 MHz
Reference Clock
Phase Offset
Range 0° to 360°
Resolution 0.03°
External Reference Input
Lock Range 10 MHz ± 50 Hz
Level 250 mVpp to 5 Vpp
Lock Time < 2 s
Input Impedance (Typical) 1 kΩ, AC coupling
Internal Reference Output
Frequency 10 MHz ± 50 Hz
Level 3.3 Vpp
Input Impedance (Typical) 50 Ω, AC coupling
Sync Output
Level TTL-compatible
Impedance 50 Ω, nominal value
Overvoltage Protection
Occurred when:
Instrument Output Amplitude > 2Vpp or Output Offset > |2VDC| and Intput Signal > ±11.5V (<10kHz) (with ±5% error)
Instrument Output Amplitude ≤ 2Vpp or Output Offset ≤ |2VDC| and Intput Signal > ±3.5V (<10kHz) (with ±5% error)
General Specifications
Power Supply
Power Voltage 100 V to 240 V (45 Hz to 440 Hz)
Fuse Lower than 40 W
Display
Type 3.5-inch TFT LCD
Resolution 320 horizontal × RGB × 240 vertical resolution
Color 16 M color
Environment
Temperature Range Operating: 0 ℃  to 50 ℃Non-operating: -40 ℃  to 70 ℃
Cooling Method Fan cooling
Humidity Range Lower than 30 ℃ : ≤95% relative humidity30 ℃ to 40 ℃ : ≤75% relative humidity40 ℃ to 50 ℃ : ≤45% relative humidity
Altitude Operating: below 3000 metersNon-operating: below 15,000 meters
Mechanical
Dimensions (W×H×D) 261.5 mm × 112 mm × 318.4 mm
Weight Without Package: 3.2 kgWith Package: 4.5 kg
Interfaces USB Host, USB Device, LAN
IP Protection IP2X
Calibration Interval 1 year recommended calibration interval
Certification Information
EMC in line with EN61326-1:2006
IEC 61000-3-2:2000 ±4.0kV (contact discharge)±4.0kV (air discharge)
IEC 61000-4-3:2002 3 VIm (80 MHz to 1 GHz)3 VIm (1.4 GHz to 2 GHz)1 VIm (2.0 GHz to 2.7 GHz)
IEC 61000-4-4:2004 1 kV power lines
IEC 61000-4-5:2001 0.5kV (Phase to Neutral)0.5kV (Phase to PE)1 kV (Neutral to PE)
IEC 61000-4-6:2003 3V,0.15-80MHz
IEC 61000-4-11:2004 Voltage dip:0 % UT during half cycle0 % UT during 1 cycle70 % UT during 25 cyclesShort interruption:0 % UT during 250 cycles
Electrical Safety Electrical Safety      in line withUSA:UL 61010-1:2012,Canada: CANICSA-C22.2    No. 61010-1-2012EN 61010-1:2010
Description Order Number
Model DG1032Z (30MHz, Dual-channel) DG1032Z
DG1062Z (60MHz, Dual-channel) DG1062Z
Standard Accessories Power Cord -
USB Cable CB-USBA-USBB-FF-150
BNC Cable CB-BNC-BNC-MM-100
Quick Guide -
Resource CD (including User’s Guide and etc.) -
Options 16Mpts Memory for Arb Arb16M-DG1000Z
Rack Mount Kit (for single instrument) RM-1-DG1000Z
Rack Mount Kit (for dual instruments) RM-2-DG1000Z
40dB Attenuator RA5040K
10W Power Amplifier PA1011
USB-GPIB Converter USB-GPIB
