DK-T7

DK T7 Audio & Loudness

Call For Price

Categories: , .

Product Description

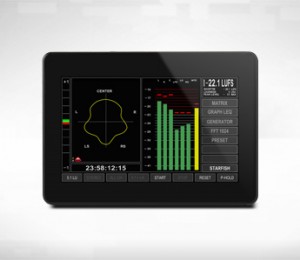

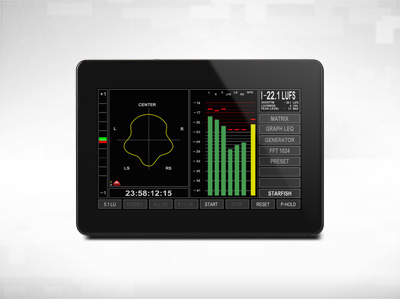

DK T7
Tools Included
Peak Metering Bargraph, Moving Coil Emulation, Numerical
Loudness Metering Bargraph, Moving Coil Emulation, Numerical, Historical
Logging Loudness & True Peak Yes, Log to ext. database
Spectrum Analysis FFT Yes, 1024 band
SMPTE Time code reading Readout + Logging
Vector Scope Surround StarFish / JellyFish
Gonio Meter Stereo Yes
Phase Correlation Yes
Picture Preview Yes, SD / HD / 3G
Eye Width SDI Quality Yes
Screen Grabber Yes
Audio Connectors
Analogue input 2 XLR input
AES input/output 8. ch. AES3 Input/Output BNC (AES3-4-2009)
Headphone out Yes
Video Connectors
SDI In / Out BNC 3G/HD/SD SDI (active loop through)
Digital Input
Bit Resolution 24 bit
Group Delay 1.75msec
Nominal input imp. 75 ohm
S-rate int. /ext. 48kHz
Analogue Input
Input type Balanced (electronic)
Dynamic range >103dB
Crosstalk <96dB
SNR Typ. 93dB relative to -1dBFS
Nominal input Imp. >20kOhm
Maximum input level 24dBu
Freq. resp. 20Hz-20kHz +/-0.3dB
Control Interface
Computer Interface USB, Ethernet
GPIO Yes
Screen & Operation
TFT 7”
Operation Multi Touch Screen
Screen Output HDMI 1024 x 600
Number of Display ch. 16
Loudness
Compliant with… ITU BS1770-3, EBU R128, A/85, ARIB
Reference Level digital -12dBFS & -24dBFS
Dynamic gate level -2LU dB to -20LU/Off
Momt./Short trm/Sliding 0,4 – 3 – 10 – 30 sec.
Numerical Read-Outs Intgr. Momnt, Shorttrm, LRA, True Peak, Reclaim Factor
True Peak Flying peak & Num.
Peak thrs. / hold time -2dBFS / >0.5sec
Power
Consumption 10W
Power Supply Plugtop, 100-240V, 15VDC, 1500mA
Mechanical
Dimensions 132 x 186 x 24 mm
Aluminium Chassis
19” Rack mountable Yes
Desk Top Bracket Included

Features

  • Bargraphs or Moving Coil – Your choice of metering tool
  • JellyFish™ & StarFish™ – Channel Interrelation View
  • Loudness and True Peak Logging – Document & Report
  • Clear Loudness metering & readout – Loudness conformity
  • Real time True Peak PPM – No hidden ‘overs’
  • Compliant with major loudness standards – Hit your target
  • FFT Analysis – See and secure your audio from any angle
  • SDI 3G I/O, AES3 8ch. I/O, Analogue 2ch. In – Covered!
  • Flexible and User definable setup – Personalize to your wish
  • SMPTE Reader – Readout and Log against Time code
  • HDMI screen and Audio output – Monitor your Meter
  • Headphone Output – Listen in
  • USB and Ethernet Control – Log and Report
  • Multi Touch screen User interface

User Manual

For detailed performance parameters and technical specifications, refer to DK T7 Preliminary User Manual
