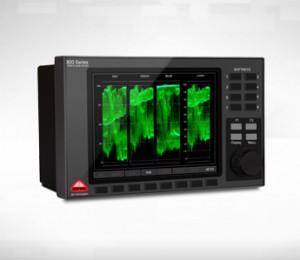

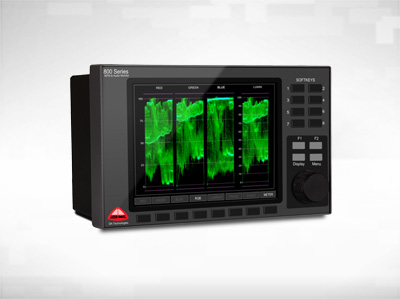

PT0800 WFM & Audio

Product Description

PT0760M-SDI-1I & 2I
SDI input specifications
SMPTE-Formats	259M, 292M
Connector	BNC, 75Ω (Internally Terminated)
Return Loss	>15dB (5MHz – 1.5GHz)
Input Level	800mVp-p, ±10% (0m Cable)
Equalization Range	259M: 0-280m (Belden 8281 cable type): 292M: 0-100m
PT0760M-SDI-1O
SDI output specifications
SMPTE-Formats	259M, 292M
Connector	BNC, 75Ω (Internally Terminated)
Return Loss	>15dB (5MHz – 1.5GHz)
Output Level	800mVp-p, ±10%
PT0760M-ANAREF
External Analogue Video reference
Connector	BNC, 75Ω (Not internally terminated)
Return Loss	>35dB (5MHz to 30MHz)
Input Level	1Vp-p typical, 2Vp-p (Maximum)
Supports video standards	SDTV: SMPTE 125M SMPTE 267M ITU-R BT .601 (480I, 576I) HDTV: SMPTE 296M(720P) SMPTE 274M(1080I/P) SMPTE RP 211 (1080PsF)
PT0760M-O/P-8A
8 Channel Analogue Audio Output Module
Connector	25 pin Female D-Sub
Sample Rate with internal Sync	48kHz
Max. Output Level at 600Ω	+18dB (VCC=12V) +24dB (VCC >20V)
Bit Resolution	24 bit
Frequency Range	30Hz to 20kHz ±0.3dB
Sample rate range with external sync	32 kHz to 50 kHz
Group delay	<0.21 msec
Dynamic range A-weighted	>101 dB
Crosstalk at 1 kHz	< –96 dB
Signal-to-noise ratio	93 dB (typical)
Nominal output impedance	< 5 ohm
PT0760M-O/P-8D
4 Channel Digital Output Module (AES3)
Connectors	15 pin Female D-Sub (AES3-2003) (AES3-2003) 4 x BNC (AES3-id2001)
Sample rate with internal Sync	48kHz
Output Level (BNC)	75Ω: 1V
Output Level (D-Sub)	110Ω: 5V (balanced)
Bit Resolution	24 bit
PT0760M-I/P-8A
8 Channel Analogue Audio Input Module (balanced)
Connector	25 pin Female D-Sub
Sample Rate with internal Sync	48kHz
Max. input Level	+24dB
Bit Resolution	24 bit
Frequency Range	30Hz to 20kHz ±0.3dB
Nominal input impedance	> 20kΩ
Group delay	<0.82 msec
Dynamic range, A-weighted	>103 dB
Crosstalk at 1 kHz	< –96 dB
Signal-to-noise ratio	93 dB (typical)
PT0760M-I/P-8D
4 Channel Digital Input Module (AES3)
Connectors	15 pin Female D-Sub (AES3-2003) & 4 BNC (AES3-id-2001)
Sample rate internal	48kHz
Sample rate for input module	8kHz – 108kHz
Input Level	>500mV
Bit Resolution	24 bit
Input impedance	110Ω
Group delay	1.75 msec (Max.)
THD & Noise	–103 dB @ 1 kHz (typical)
Dynamic range	>120 dB
General Connectivity
External Display	DVI-I (DVI or VGA) 640x480p60, 1280x720p60, 24 bit colour
Monitor, Control & Update	RS232 / USB (-A) / (RJ45)
Power Supply
Power input Connector	XLR4-male
Input Voltage	12-36VDC
Power Usage	15-40W
Physical Characteristics	Height: 133.4 mm
	Width: 215.2 mm
	Depth: 145 mm Max.
Weight	2.5kg (typical)
Environmental Conditions
Storage temperature	-20° to +70°C
Operating ambient temperature	Operating ambient temperature
Humidity	Non-condensing (IEC 721)

Features

• High Bright TFT 6.8″
• 8 User Preset Keys, complete customization
• 8 User Soft keys, complete customization
• Modular I/O: SDI, AES, Dolby E etc.
• Up to 64 Audio Inputs/16 outputs
• Full Audio Metering inc. stereo, 5.1 surround sound & multiple channels (maximum 32)
• Loudness Logging, compliant with all major broadcast standards
• User definable Gamut error settings
• G, R, B, Y, Cb, Cr & Luminance displat
• A/B Overlay & A/B Parade display
• Up to 2 or 4 Auto sensing SDI inputs
• Up to 4 Waveforms on single screen
• 2 or 4 Channel Waveform Monitor
• Ethernet and USB ports for data transfer
• Numerical display of user selectable timebase
• Universal 1/2 rack, 3RU or Desktop
• Picture preview
• Up to 4 SDI video inputs , 1 SDI output
• Self-sensing genlock input, Blackburst / Trilevel

User Manual

For detailed performance parameters and technical specifications, refer to PT0800M Datasheet
