MJS-640

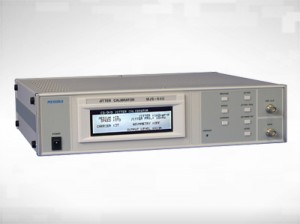

MJS-640 Jitter Calibrator

Call For Price

[]
Categories: BD/CD/DVD Jitter Meter, Meguro.
  • Description

Product Description

This MJS-640 is a Jitter Calibrator designed as a jitter signal generator for calibrating a CD Jitter Meters at 3T and DVD Jitter Meters at Total-T.

This unit can be used as a calibrator for the following models.
 Present models
CD Jitter Meters DVD Jitter Meters CD/DVD Jitter Meters
MJM-6350 MWJ-6392U -
MDJ-6360A MWJ-6392E -
MJM-631U - -
MJM-631E - -
 Discontinued models
CD Jitter Meters DVD Jitter Meters CD/DVD Jitter Meters
MJM-631B MWJ-6390 MWJ-6395
MJM-631C MWJ-6391 MWJ-6396
MJM-632/634 MWJ-6392 -
MJM-636 MWJ-6392A -
MJM-6341A MWJ-6392B -
MDJ-6360 - -
MDJ-6370 - -

SPECIFICATIONS

 Calibration jitter signal
Jitter Mode
•3T method Standard speed : Clock frequency 4.3218MHz
DVD : Clock frequency 27MHz
•Total-T method
(DATA to CLOCK)
Clock frequency 27MHz
Jitter Frequency
•3T method 1kHz, 10kHz, 100kHz(Sine waveform)
•Total-T method NOISE
Calibration Output
•3T method Standard speed : 40, 60, 80, 120 and 160ns in at p-p value
DVD : 30ns at sigma value
Jitter Accuracy ±1.5% of 3T jitter value(Sigma value)or ±0.15ns
Residual jitter Less than 300ps
Asymmetry OFF, +0.5T, -0.5T ±5% of clock cycle or less than 2ns
Output Level (OFF, L, M, H)
•L level 0.25Vp-p at 50Ω termination
•M level 0.50Vp-p at 50Ω termination
•H level 1.00Vp-p at 50Ω termination
Output level accuracy ±10% of output level



 Optional units
3T method 2, 4, 6, 8 and 12 speed
Total-T method DVD (Clock frequency: 26.15MHz)
* 4 Optional units can be installed (Factory option)



 General
Power Requirements AC85 to 264V, 50/60Hz Approx, 35VA
Dimensions Approx, 420(W)×100(H)×360(D) mm
Weight Approx, 8 kg (Without optional units)



* Specifications are subject to change without notice.
