The MWJ-6392E is designed for measuring and indicating the jitter components of the data signals with internal PLL clock signal employed as a reference signal from RF signals of DVD, DVD-ROM and other relative devices.
It indicates the measured jitter values by percent (%) in the SIGMA mode and can select either + , – or + /- edge of the data signals as the reference trigger clock edge.
It has the digital equalizer circuit which is adjustable according to the characteristics of Pick-ups, and the INHIBIT function is provided to inhibit jitter measurement of faulty section.
In addition, it indicate whether measured values are acceptable or not by GO or NO-GO lamp by presetting a criterion value.
FEATURES
It has the digital equalizer circuit which is adjustable according to the characteristics of Pick-up.
The jitter quantity can be directly read by the meter and LCD indicator.
This unit converts a time difference between a data signal and the clock into a sigma value and indicated its jitter quantity as the percentage to the clock cycle on the meter indicator.
Changes in the jitter can be read continuously, due to T/V conversion method of measurement.
It can select either + or -edge of the data (EFM Plus) signal as the trigger edge, and also select +, – or +/- edge for jitter measurement.
The INHIBIT function is provided to inhibit jitter measurement of faulty section.
A GO/NO-GO result is indicted in relation to a preset jitter value.
The panel-lock function is provided to set measuring conditions.
A remote control function is provided.
SPECIFICATIONS
Input Section
DATA Input Signal
EFM Plus signal (RF or Binary signal)
Input Impedance
Approx. 1MΩ, unbalanced
Input Capacity
25pF or less
Input Signal Level
0.1Vp-p to 2Vp-p
Clock Frequency Range
25.5 to 28.5MHz
INHIBIT Input Signal
TTL level
Jitter Measurement
Indication
Percent(%) indication by the meter and LCD display in SIGMA mode
Measuring Range
0 to 10% and 0 to 20% in two ranges
Jitter Measuring Range
±0.5T to the clock edge
Measuring Accuracy
• Meter Display
±5% of full scale
• Digital Display
±(3% of reading +20 digits), Min. resolution; 0.01%
• Reference Clock
Internal PLL clock
Measuring Data Edge
+,-, or + /-(selectable)
Equalizer (only for RF)
• Frequency Characteristics
In conformity to JIS×6241
• Standattird Seng
+3.2dB ±0.3dB (5.16MHz -200kHz @27MHz)
• Range
0 to 7dB 0.2dB step
• Group Delay Characteristics
Max. 5ns
Low Pass Filter Characteristics
6th Bessel Fc = 8.46 MHz
Slicer Characteristics
In conformity to JIS×6241
PLL Characteristics
In conformity to JIS×6241
Output Section
RECORDER Output
1VDC ±5% at full scale with open end
MONITOR Output
-6dB ±1dB to input signal level at 50Ω load
REMOTE Output
DATA EDGE, RANGE, EQUALIZER on/off modes on the panel are externally controlled
Optional output terminals on the rear panel
EQUALIZER Output
Approx. 0.65 V p-p at 50Ω load
JITTER Output
0.1 V rms. ±10% at 50Ω load
DATA Output
0.5 V p-p at 50Ω load
CLOCK Output
0.5 V p-p at 50Ω load
<
General Data
Operating temperature range
+5ºC to +40ºC
Power requirements
AC 100/120V to 220/240V ; 15VA
Dimensions
Approx. 240(W)×154(H)×130(D) mm
Weight
Approx. 2.05kg
*
Specifications are subject to change without notice.

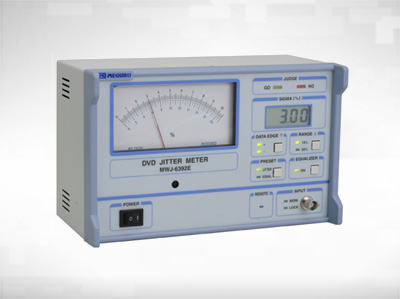

MWJ-6392E DVD Jitter Meter
Call For Price
Product Description
MWJ-6392E DVD Jitter Meter
The MWJ-6392E is designed for measuring and indicating the jitter components of the data signals with internal PLL clock signal employed as a reference signal from RF signals of DVD, DVD-ROM and other relative devices.
It indicates the measured jitter values by percent (%) in the SIGMA mode and can select either + , – or + /- edge of the data signals as the reference trigger clock edge.
It has the digital equalizer circuit which is adjustable according to the characteristics of Pick-ups, and the INHIBIT function is provided to inhibit jitter measurement of faulty section.
In addition, it indicate whether measured values are acceptable or not by GO or NO-GO lamp by presetting a criterion value.
FEATURES
SPECIFICATIONS
<
