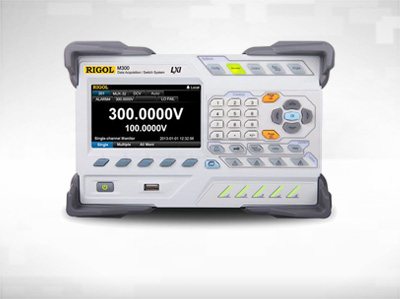

M300 Data Acquisition/Switch System

Call For Price

M300 Series Data Acquisition/Switch System with modular structure, which combines precision measurement capability with fl exible signal connections, can provide versatile solutions for the applications with multiple points or signals to be tested in product performance test during R&D phase as well as automatic test during production process.

Categories: , .

Product Description

Description Ordering No.
Mainframe M300 Data Acquisition/Switch System M300
M300 Data Acquisition/Switch System + DMM Module M301
Standard Accessories Power Cord conforming to the standard of the country -
USB Cable CB-USB-150
Mixed-interface Separator Line MIX-SEPARATOR
Four Spare Fuses:
2 AC, 250 V, T3.15 A fuses
2 AC, 250 V, T250 mA fuses		 -
Quick Guide -
Resource CD (User’s Guide and Application Software) -
Optional Accessories：
Module		 DMM Module (6½ digits) MC3065
32-channel Multiplexer MC3132
64-channel Single-ended Multiplexer MC3164
32-channel Reed Multiplexer MC3232
64-channel Single-ended Reed Multiplexer MC3264
20-voltage-channel+4-current-channel Mixed Multiplexer MC3324
16-channel Actuator MC3416
Multifunction Module MC3534
4×8 Matrix Switch MC3648
Dual 4-channel RF Multiplexer MC3724
Optional Accessories：
Terminal Box
 MC3132/ MC3232 Terminal Box M3TB32
MC3164/MC3264 Terminal Box M3TB64
MC3324 Terminal Box M3TB24
MC3648 Terminal Box M3TB48
MC3534 Terminal Box M3TB34
MC3416 Terminal Box M3TB16
Optional Accessories RS232 Cable -
External Cable for Analog Bus Interface A-BUS-EXT-LINE
External Port for Analog Bus Interface A-BUS-EXT-PORT
Rack Mount Kit RM-1-M300
Rack Mount Kit for Two Instruments. RM-2-M300
PC Software for M300 Series Ultra Acquire Pro

Features

  • Up to 320 switch channels per main frame,save on cost of ownership
  • Can be Run without PC
  • USB logging
  • Interval scanning with storage of up to 100,000 time-stamped
  • 10 kinds of cards supported
  • 6 1/2 DMM can be enabled/disabled in any of slots
  • Standard SCPI
  • Math statistics:AVG, MAX, MIN, SDEV
  • Cascade supported
  • 4.3' LCD with intuitive GUI
  • Powerful PC software and WebControl
  • Full Interfaces supported: USB Device,USB Host, GPIB,LAN(LXI-C), RS232

User Manual

For detailed performance parameters and technical specifications, refer to M300 Series Datasheet
