DP711

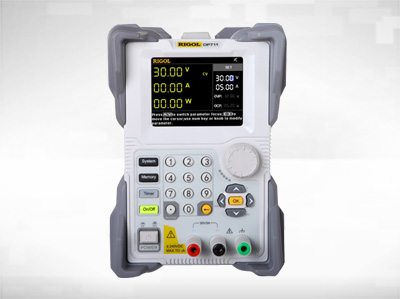

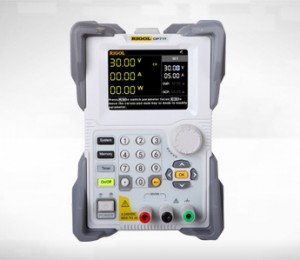

DP711 Programmable Linear DC Power Supply

RM2,000.00

Out of stock

Categories: , .

Product Description

DP711 is a type of single channel (30V/5A)Programmable Linear DC Power Supply with high performance. With superb performance specifications, pure and reliable output, and clear user interface, DP711 supports timing output and trigger function, and provides a remote communication interface, enabling you to meet your diversified test requirements.

Low Ripple and Noise: < 500uVrms/3mVpp
Low-Ripple-and-Noise

Transient Response Time: < 50us
Transient-Response-Time

Excellent Line Regulation Rate and Load Regulation Rate: 0.01%
Excellent-Line-Regulation-Rate

Powerful Timing Output Function
Powerful-Timing-Output-Function

Overvoltage/Overcurrent Protection (OVP/OCP)
OvervoltageOvercurrent-Protection-

Convenient Trigger Function
Convenient-Trigger-Function

Clear and Intuitive User Interface, Easy to Operate
Clear-and-Intuitive-User-Interface-Easy-to-Operate

Specification

Model MS510S MS520S
Bandwidth(BW) 100MHz 200MHz
Rise time ≤3.5ns ≤3.5ns
Real time sampling rate single channel :1GSa/s,dual-channels:500MSa/s
Memory depth single channel :240Kpts,dual-channels:120Kpts
Isolated channel support
Max waveform capture rate 190,000 wfms/s
Serial bus trigger UART、LIN、CAN、SPI、I2C、1553B、429
Vertical system
Channels 2 oscilloscope channels,1 multimeter channel
Limited bandwidth 20MHz
Coupling modes DC,AC,GND
Input impedance parallel 1MΩ±1% with 15pF±3pF
Vertical sensitivity range 5mV/div~50V/div
Vertical resolution 8bits
Max voltage input 600V CAT Ⅱ   300V CAT Ⅲ
Floating voltage from CHs to GND 1000V CAT Ⅱ   600V CAT Ⅲ
DC vertical gain accuracy 5mV/div~50V/div, 2.0%
Horizontal system
Timebase 4ns/divs~10s/divs
Timebase delay range -12divs~50s
Timebase accuracy 20ppm
Sample mode normal  average, pk-pk envelope
Dynamic record support
Store waveform support internal waveform storage and flash disk storage
Trigger system
Trigger types edge, pulse, logic, vedio （PAL,NTSC,SECAM,720P,1080I,1080P）serial bus（UART、LIN、CAN、SPI、I 2C、1553B、429）
Trigger coupling DC,AC,High-frequency suppression,Low-frequency suppression, Noise suppression
Trigger modes auto, normal, single
Trigger source CH1,CH2,external
Trigger inhibition range 200ns~10s
Measurement
Automatic measurements 31 types
Cursor types horizontal cursor, vertical cursor, cross cursor
Math
Operator  + , - , * , /
FFT window settings Rectangular, Hamming, Blackman-Harris, Hanning
Display features
Display screen 5.7 inch TFT LCD touch screen
Resolution 640*480
3D waveform display not support
Grid of waveform display zone horizontal 12 divs * vertical 8 divs
Format YT mode , XY mode
Interpolation method sin（x）/x
Persist auto, 100ms~10s or ∞
I/O port
Mini USB2.0 connect to  PC
USB2.0 connect to Flash disk
Multimeter
Multimeter type 10 physical measurements ,such as voltage, current, resistance, capacitance, diode , etc
Multimeter accuracy 5000counts
Multimeter display max, average, min, values with time stamp; relative measurement
Data Logger
Logger content

multimeter measurements, oscilloscope measurements, oscilloscope waveforms
Logger timebase multimeter measurements,10s/div ~ 20min/div
oscilloscope measurements 10s/div ~ 20min/div
oscilloscope waveform 100us/div ~ 2min/div
Logger time length 49s~ ∞
Power
Power adapter input:100-240VAC,50-60HZ,2A; output:12VDC,5A
Battery capacity:7.4V/6000mAh, Work time:4~5 hours
Work environment
Temperature -20℃ ~ +50℃
Humidity < 85%RH
Dimension
Size 254mm*160mm*60mm
Weight main unit: 1380g (no battery),  battery(standard): 276g
