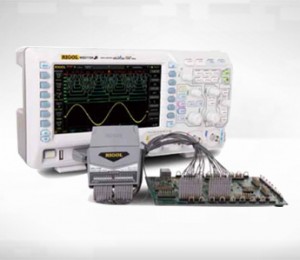

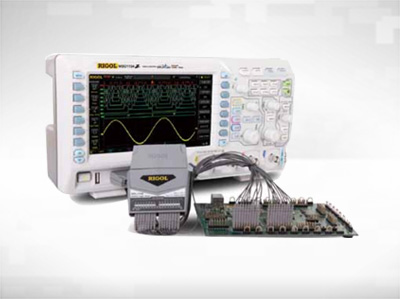

MSO1000Z-Series

DS1074Z Digital Oscilloscope

Call For Price

Categories: , .

Product Description

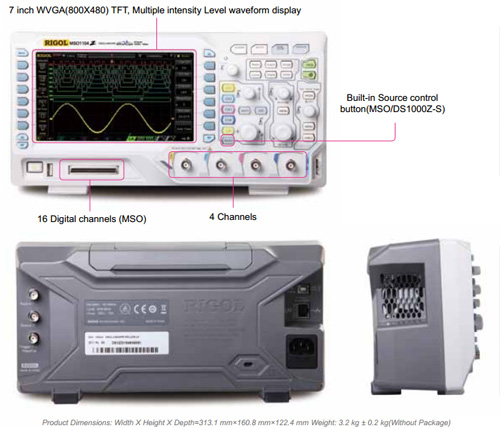

DS1000Z-series

MSO/DS1000Z Series is the new mainstream digital scope to meet the customer’s applications with its innovative technology.

MSO1000Z Series has 16channels, target for the embedded design and test market with its industry leading specifications, powerful trigger functions and broad analysis capabilities.

4 Channels
DS1000Z-series-benefit

UltraVision: Deeper memory(Std.12Mpts,Opt.24Mpts)
DS1000Z-series-benefit-2

UltraVision: Up to 30,000 wfms/s Waveform capture rate
DS1000Z-series-benefit-3

UltraVision: Multi-Level intensity grading display
DS1000Z-series-benefit-4

UltraVision:Realtime waveform Record,Replay, function (Opt.)
DS1000Z-series-benefit-5

A variety of Trigger Functions
DS1000Z-series-benefit-6

Built in 2 channel 25MHz Signal Source(MSO/DS1000Z-S)
DS1000Z-series-benefit-7

Optional Serial Bus Triggering and Decoding functions(RS232,I2C,SPI)
DS1000Z-series-benefit-8

Features

  • Analog channel Bandwidth: 100MHz,70MHz
  • 4 Analog channels,16 Digital channels
  • Max. Sample Rate up to 1G Sa/s
  • Memory Depth up to12Mpts /24Mpts(Opt.)
  • Innovative "UltraVision" technology
  • Up to 30,000wfms/s Waveform Capture Rate
  • Up to 60,000frames Real-time Waveform Record(Opt.)
  • Low noise floor, Dynamic Range: 1mV/div to 10V/div
  • Optional Serial Buses Triggering and Decoding(RS232,I2C,SPI)
  • Multi- Levels intensity grading waveform display
  • Built in 2 channels 25MHz waveform Generator(MSO/DS1000Z-S)
  • Complete Connectivity: LAN(LXI),USB Host & Device,AUX, USB-GPIB(Opt.)
  • Compact size, light weight, easy to use
  • 7 Inch WVGA (800x480), multiple intensity levels waveform display
Innovative UltraVision technology(Digital Channel)
  • Deeper Memory Depth( Up to 24Mpts )
  • Higher Waveform capture rate(Up to 30,000wfms/s)
  • Real Time waveform record & replay(Up to 60,000 frames)
  • Multi-level intensity grading display
Model Number DS1074Z
Analog BW 70 MHz
Analog Channels 4
Digital Channel(MSO) 16
Max. Sample rate Analog Channel:1GSa/s (1 CH),500MSa/s(2 CH),250MSa/s(3/4 CH);
Digital Channel: 1GSa/s (8 CH),500MSa/s(16 CH)
Max. Memory Depth Analog Channel: 12Mpts(1 CH), 6Mpts(2 CH), 3Mpts(3/4 CH)Std.; 24Mpts(1 CH), 12Mpts(2 CH), 6Mpts(3/4 CH) Opt.
Digital Channel: 12Mpts(8 CH) / 6Mpts(16 CH) Std.; 24Mpts(8 CH) / 12Mpts(16 CH) Opt.
Max. Waveform Capture rate Up to 30,000 wfms/s
Real Time waveform Record,
Replay and Analysis function 		 Up to 60, 000 Frames(Opt.)
Std. Probes RP2200 150MHz BW Passive Probe:4 sets;1 set RPL1116 LA Probe(MSO only)
Built-in 2Ch 25MHz Source No


User Manual

For detailed performance parameters and technical specifications, refer to MSO_DS1000Z_DataSheet_EN
