Product Description

DS2000E Series Digital Oscilloscope

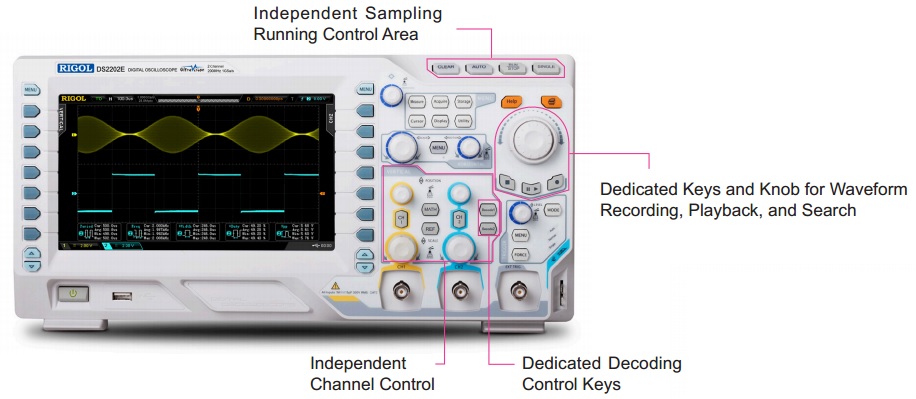

Engineers and technicians needing higher performance test solutions for more advanced debug tasks will appreciate the unique price/performance attributes of the DS2000E. Based on our UltraVision technology the DS2000E delivers advanced performance and analysis capabilities, a large intensity graded display and a proven and reliable hardware platform at an unprecedented price point.

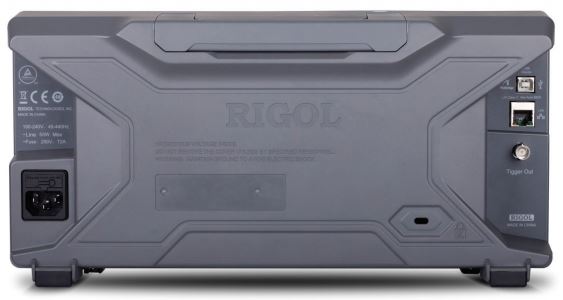

DS2000E Series Digital Oscilloscope back

  • 100 MHz and 200 MHz bandwidth models
  • 2 analogue channels, 50 Ω input impedance (standard)
  • Vertical range: 500 μV/div ~ 10 V/div
  • Real-time sample rate: up to 1 GSa/s on both channels
  • Memory depth: up to 28 Mpts on both channels
  • Waveform capture rate: up to 50,000 wfms/s
  • Real-time hardware waveform recording, playback, and analysis of up to 65,000 captured frames
  • Various serial trigger and decode (RS232/UART, I2C, SPI, CAN and LIN)
  • Complete connectivity: USB DEVICE, USB Host, LAN, and optional GPIB
  • 8-inch WVGA (800×480), 256-level intensity grading display

Unique UltraVision technology

  • High memory depth (up to 28 Mpts on both channels)
  • High waveform capture rate (up to 50,000 waveforms per second)
  • Real-time waveform recording, playback, and analysis functions (up to 65,000 frames)
  • Multi-level intensity grading display (up to 256-level)

Models and Specifications

Model DS2102E DS2202E
Analog Bandwidth 100 MHz 200 MHz
No. of Analog Channels 2
Max. Real-time Sample Rate 1 GSa/s (for both channels)
Max. Memory Depth 28 Mpts (for both channels)
Max. Waveform Capture Rate 50,000 wfms/s
Hardware Real-time and Ceaseless Up to 65,000 frames can be recorded
Waveform Recording, Playback, and
Analysis Functions
Standard Probe All the models include two PVP2350 350 MHz passive high-impedance probes.

Features and benefits

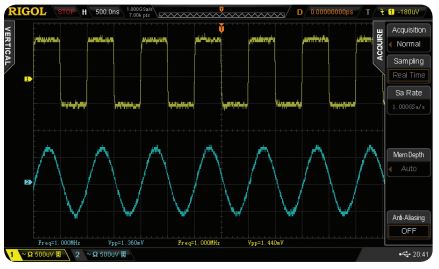

Wide range (500 μV/div~10 V/div), low noise floor, clearly capture the low-level signals

Wide range low noise floor

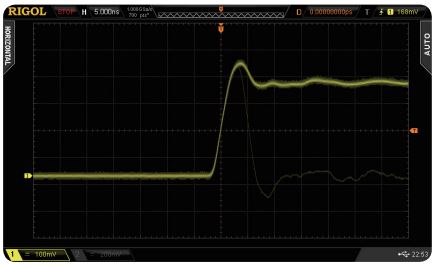

UltraVision: waveform capture rate up to 50,000 wfms/s

UltraVision waveform capture rate up to 50000 wfmss

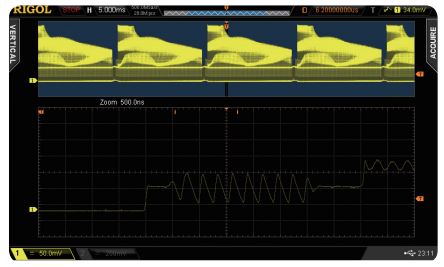

UltraVision: high memory depth up to 28 Mpts on both channels

UltraVision high memory depth up to 28 Mpts on both

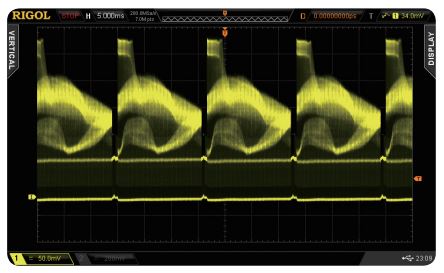

UltraVision: multi-level intensity grading display (256-level)

UltraVision multi-level intensity grading display

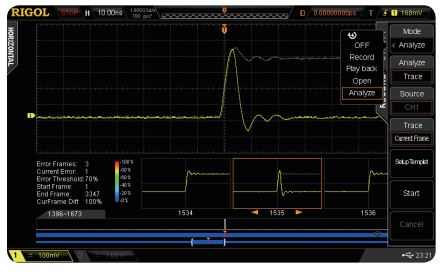

UltraVision: real-time and ceaseless waveform recording, playback, and analysis functions

UltraVision real-time and ceaseless waveform recording,

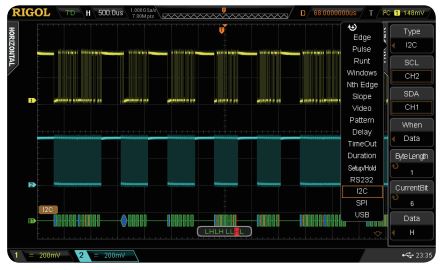

Abundant advanced triggering functions (e.g. Runt Trigger, Setup/Hold Trigger, and Nth Edge Trigger)

Abundant advanced triggering functions Runt Trigger Setup Hold Trigger, and Nth Edge Trigger

Serial bus trigger and decoding functions (supporting RS232/UART, I2C, SPI, CAN and LIN)

Serial bus trigger and decoding functions supporting RS232 UART I2C SPI CAN and LIN

Specifications
All the specifications are guaranteed except the parameters marked with “Typical” and the oscilloscope needs to operate for more than 30 minutes under the specified operating temperature. Download DS2000E datasheet

Warranty Period
Three years for the mainframe, excluding the probes and accessories.
