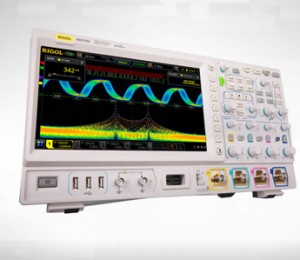

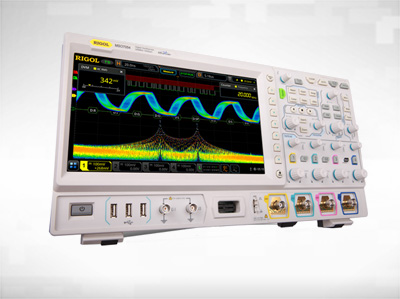

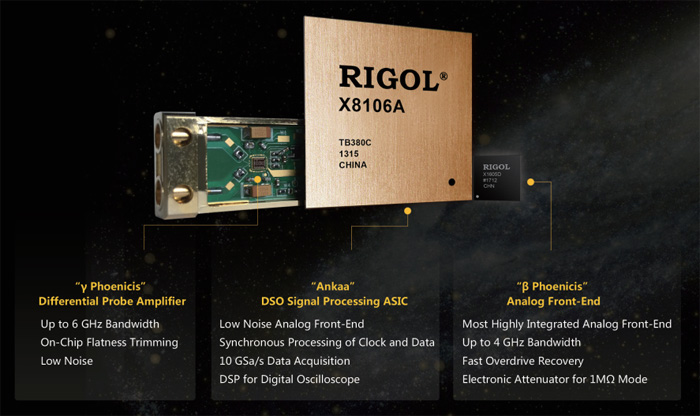

MSO7000/DS7000 series is a multifunctional and high-performance digital oscilloscope designed on the basis of the UltraVision II technology developed by RIGOL. Integrating 6 independent instruments into one, the MSO7000/DS7000 series is equipped with super high sample bandwidth ratio, extremely high memory depth, clear display, excellent waveform capture rate, and powerful data analysis functions. Many of its specifications have reached the top level in the industry. With sound solutions for mainframes, optional&accessories, and application software, it has aroused great attention from customers in the areas such as industrial control, power supply, and automotive electronics.
Sophisticated and Convenient Industry Design
Client Oriented

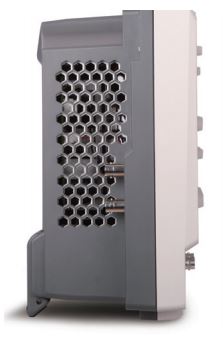

The innovative physical appearance of the instrument and the thin design in both sides of the instrument not only make its LCD display prominent but also keeps its shape delicate, making it portable and easy to operate.
Analog bandwidth: 500 MHz, 350 MHz, 200 MHz, and 100 MHz; bandwidth upgrade option
supported
4 analog channels, 1 EXT channel, and 16 digital channels (Option)
Up to 10 GSa/s real-time sample rate
Up to 500 Mpts memory depth (Option)
High waveform capture rate (over 600,000 waveforms per second)
Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and playback
functions
Integrates 6 independent instruments into 1, including digital oscilloscope, 16-channel logic
analyzer, arbitrary waveform generator, digital voltmeter, 6-digit frequency counter and totalizer, and protocol analyzer
A variety of serial protocol triggers and decodes
Auto measurement of 41 waveform parameters; full-memory hardware measurement function
A variety of math operations, built-in enhanced FFT analysis, and peak search function
Waveform histogram analysis (standard)
Independent search, navigation keys, and event table
Built-in advanced power analysis software (option)
User-defined one-key quick operation
10.1-inch capacitive multi-touch screen, 256-level intensity grading display, with color persistence
Multiple interfaces available: USB HOST&DEVICE, LAN(LXI), HDMI, TRIG OUT, and USB-GPIB
Web Control remote command
Unique online version upgrade
Novel and delicate industrial design, easy to operate
Overview of RIGOL’s Medium and High-end Series Products
Function & Model
MSO/DS4000
DS6000
MSO/DS7000
Analog Channel
4 + 16
4
4 + 16
Analog Bandwidth
100 MHz to 500 MHz
600 MHz to 1 GHz
100 MHz to 500 MHz
Max. Sample Rate
4 GSa/s
5 GSa/s
10 GSa/s
Max. Memory Depth
140 Mpts/CH
140 Mpts/CH
500 Mpts (optional)
Waveform Capture Rate
> 110,000 wfms/s
> 180,000 wfms/s
> 600,000 wfms/s
Max. Frames of Waveform Recording
200,000
200,000
450,000
LCD
9”
10.1”
10.1” capacitive multi-touchscreen
Hardware Template Test
Standard
Standard
Standard
Built-in Arbitrary Waveform Generator
None
None
2 CH, 25 MHz (optional)
Built-in Digital Voltmeter
None
None
Standard
Built-in Hardware Counter
6-digit frequency counter
6-digit frequency counter
6-digit frequency counter + totalizer
Search and Navigation
None
None
Standard, supporting table display
Power Analysis
PC (option)
PC (option)
Built-in UPA (optional)
Serial Protocol Analysis
RS232/UART, I2C, SPI, CAN, FlexRay, and MIL-STD-1553
RS232/UART, I2C, SPI, CAN,and FlexRay
RS232/UART, I2C, SPI, CAN,LIN, FlexRay, I2S, and MILSTD-1553
Waveform Color Persistence
None
None
Standard
Histogram
None
None
Standard
FFT
Standard
Standard
Enhanced FFT, Standard
MATH
Displays 1 function at the same time
Displays 1 function at the sametime
Displays 4 functions at the sametime
Connectivity
standard: USB, LAN, and VGAoption: USB-GPIB
standard: USB, VGA, and LANoption: USB-GPIB
standard: USB, LAN, and HDMIoption: USB-GPIB
Overview of the MSO7000/DS7000 Series Technical Specifications
Model
MSO7014
DS7014
MSO7024
DS7024
MSO7034
DS7034
MSO7054
DS7054
Analog Bandwidth
100 MHz
200 MHz
350 MHz
500 MHz
Rising time (typical)
≤3.5 ns
≤1.75 ns
≤1 ns
≤700 ps
No. of Input/Output Channels
4 input analog channels
1 input EXT channel
16 input digital channels (only for the MSO model)
dual-channel arbitrary waveform generator output (only for the MSO model, option)
MSO/DS7000 Series Digital Oscilloscope
Call For Price
Out of stock
Product Description
MSO7000/DS7000 series is a multifunctional and high-performance digital oscilloscope designed on the basis of the UltraVision II technology developed by RIGOL. Integrating 6 independent instruments into one, the MSO7000/DS7000 series is equipped with super high sample bandwidth ratio, extremely high memory depth, clear display, excellent waveform capture rate, and powerful data analysis functions. Many of its specifications have reached the top level in the industry. With sound solutions for mainframes, optional&accessories, and application software, it has aroused great attention from customers in the areas such as industrial control, power supply, and automotive electronics.
Sophisticated and Convenient Industry Design
Client Oriented
The innovative physical appearance of the instrument and the thin design in both sides of the instrument not only make its LCD display prominent but also keeps its shape delicate, making it portable and easy to operate.
supported
functions
analyzer, arbitrary waveform generator, digital voltmeter, 6-digit frequency counter and totalizer, and protocol analyzer
Overview of RIGOL’s Medium and High-end Series Products
Overview of the MSO7000/DS7000 Series Technical Specifications
