Ligada iSuite is a comprehensive HbbTV Test Harness and Test Suite, enabling interoperability and conformance testing for HbbTV hybrid digital TV receivers. It consists of the Ligada Test Harness, a test harness for managing and delivering HbbTV test applications including the official HbbTV test suite; and the Ligada Test Suite, a complete suite of HbbTV test cases. Ligada enables CE manufacturers and operators to validate HbbTV conformance and has been specifically designed to test the areas where interoperability problems have so far been the greatest for HbbTV.
The Ligada iSuite Test Harness automates 95% of the Official HbbTV test cases, dramatically reducing test times and
allowing unattended test runs. The Ligada Test Suite also provides coverage for the imminent HbbTV 1.5 specification,
including MPEG-DASH adaptive streaming. Ligada iSuite supports new platform specific HbbTV profiles as they are introduced, beginning with the French TNT2.0 profile.
Ligada Test Suite
The Ligada Test Suite consists of Digital TV Labs authored test cases, which provide excellent test coverage of the HbbTV specification. Our ‘Added Value’ test cases are supplementary to the official HbbTV Test Suite, and are designed to cover specific problem areas of interoperability, including robustness, network resilience and advanced AV functionality. For users without access to the official HbbTV Test Suite, we also supply the official Digital TV Labs authored test cases, which form about 50% of the Official Test Cases. The French TNT2.0 Test Suite is provided as an option.
In addition to this, Ligada users will receive the latest upgrades to the test cases authored by Digital TV Labs, well in advance of their official release by HbbTV. All of our test cases are supplied as source code and may be adapted by Ligada users
Ligada iSuite for HbbTV
Validates products against HbbTV 1.1 and 1.5
Minimises interoperability issues
Automation to shorten test cycles
Interactive test environment to shorten development cycles
Can be used to run the Official HbbTV Test Suite, as required by the HbbTV Certification Program
Ligada Test Harness
The Ligada Test Harness is an efficient HbbTV Test Harness which fully supports the recently released official HbbTV
Consortium Test Suite (August 2012), the official Digital TV Labs Ligada Test Suite and operator/national HbbTV profiles.

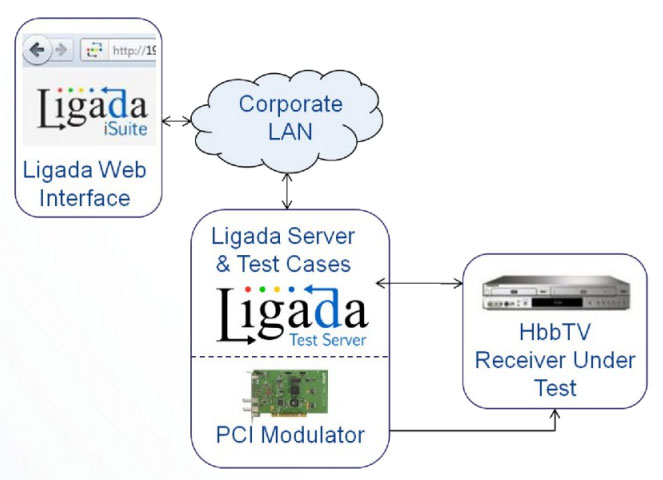

Ligada is installed on a dedicated PC and requires an RF modulator (not supplied). The web interface can be accessed
by multiple users at different site locations.
Key features include:
Integrated web server for delivery of HbbTV applications and VOD
Dynamic TS & DSMCC generation and play-out
Built in automation and intuitive UI
Fully conformant with official HbbTV Test Specification
Supports manufacturers’ custom test cases
Supports DVB-T/C/S

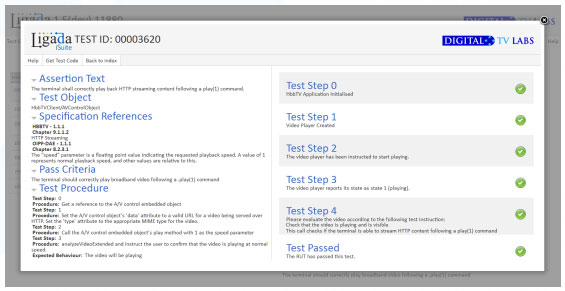

With built in automation, the harness is designed to minimise test time and resources, while its intuitive UI and drill-down features maximise HbbTV development productivity. Developers can browse through the underlying test
procedures for each of the test assertions to increase their understanding of any test failures. Ligada incorporates a test plan utility allowing import/export and multiple project support.
Automation features:
95% of the Official HbbTV test cases can be are automated using Ligada iSuite
Built in Javascript API engine and communications interface
Automated IR blaster control
Power Line control
Image and video capture for post-test run analysis
Batch test control interface
Features for developers:
XML report generator for result collation
Intuitive UI for easy user interaction
Search feature
Test cases linked to HbbTV test assertions, test procedures and HbbTV specification references
HbbTV Testing Solutions
Digital TV Labs and HbbTV
Hybrid Broadcast Broadband TV (HbbTV) is an industry standard for hybrid digital TV which harmonises the delivery
of entertainment through broadcast and broadband. Digital TV Labs is part of the HbbTV Consortium, is the highest single contributor to the official HbbTV Test Suite and chairs the HbbTV Testing Group. Digital TV Labs is working with a number of new HbbTV platform operators, such as TNT 2.0 in France, to provide Ligada-based test suites and test services.
HbbTV Conformance Testing
For customers that don’t require the capability to perform inhouse execution of HbbTV testing, we are able to offer a
complete and comprehensive testing service. Our experienced Test Engineers will execute the Ligada Test Suite on the
receiver under test and provide a detailed report of the test results. This service enables manufacturers to conform to the requirements of the HbbTV Logo Licensing Policy.
To help customers diagnose and fix resulting receiver issues we offer hosting services that allow customer engineers to come to our labs, reproduce the failure cases and be supported by our Test Engineers, who can explain the precise
nature of the failure and its relation to the HbbTV specification. In 2012 Digital TV Labs became the first HbbTV
Registered Test Center.
Application Testing for Developers
Digital TV Labs is also able to support HbbTV Application Developers, with a range of products and services to ensure complete interoperability with HbbTV compliant devices.
HbbTV Application Lab
HbbTV Receiver ‘Zoo’
Application Testing Service
Ligada HbbTV Validator
Live Application Testing
Digital TV Labs maintains a library of current HbbTV applications, which are thoroughly exercised to confirm
correct receiver operation against a reference receiver. Our UK lab is fully equipped with a pan-EU satellite feed, enabling access to live HbbTV applications. We also tour Europe periodically and make regular recordings of terrestrial HbbTV broadcasts.
Since no conformance regime is yet in place, some applications make assumptions about receiver behaviour that
does not comply with the HbbTV specification. We are experts on HbbTV and can provide in-depth advice regarding receiver behaviour. We provide ‘real world’ testing services, which is critical to ensure receivers perform correctly in the field and provide a positive user experience.
First-Rate Support Services
Digital TV Labs has an unrivalled reputation for high service levels and responsive support services from both our
European and Hong Kong based labs. We provide installation and training services in local languages to ensure our
customers can focus wholly on their testing needs. We are committed to supporting the official HbbTV Test Suite as it
develops and will continue to develop new ‘Added Value’ test cases to further improve interoperability. In addition we are working with a number of HbbTV platform operators to provide support for specific HbbTV profiles.
Ligada iSuite for HbbTV
Call For Price
Product Description
Ligada iSuite is a comprehensive HbbTV Test Harness and Test Suite, enabling interoperability and conformance testing for HbbTV hybrid digital TV receivers. It consists of the Ligada Test Harness, a test harness for managing and delivering HbbTV test applications including the official HbbTV test suite; and the Ligada Test Suite, a complete suite of HbbTV test cases. Ligada enables CE manufacturers and operators to validate HbbTV conformance and has been specifically designed to test the areas where interoperability problems have so far been the greatest for HbbTV.
The Ligada iSuite Test Harness automates 95% of the Official HbbTV test cases, dramatically reducing test times and
allowing unattended test runs. The Ligada Test Suite also provides coverage for the imminent HbbTV 1.5 specification,
including MPEG-DASH adaptive streaming. Ligada iSuite supports new platform specific HbbTV profiles as they are introduced, beginning with the French TNT2.0 profile.
Ligada Test Suite
The Ligada Test Suite consists of Digital TV Labs authored test cases, which provide excellent test coverage of the HbbTV specification. Our ‘Added Value’ test cases are supplementary to the official HbbTV Test Suite, and are designed to cover specific problem areas of interoperability, including robustness, network resilience and advanced AV functionality. For users without access to the official HbbTV Test Suite, we also supply the official Digital TV Labs authored test cases, which form about 50% of the Official Test Cases. The French TNT2.0 Test Suite is provided as an option.
In addition to this, Ligada users will receive the latest upgrades to the test cases authored by Digital TV Labs, well in advance of their official release by HbbTV. All of our test cases are supplied as source code and may be adapted by Ligada users
Ligada iSuite for HbbTV
Ligada Test Harness
The Ligada Test Harness is an efficient HbbTV Test Harness which fully supports the recently released official HbbTV
Consortium Test Suite (August 2012), the official Digital TV Labs Ligada Test Suite and operator/national HbbTV profiles.
Ligada is installed on a dedicated PC and requires an RF modulator (not supplied). The web interface can be accessed
by multiple users at different site locations.
Key features include:
With built in automation, the harness is designed to minimise test time and resources, while its intuitive UI and drill-down features maximise HbbTV development productivity. Developers can browse through the underlying test
procedures for each of the test assertions to increase their understanding of any test failures. Ligada incorporates a test plan utility allowing import/export and multiple project support.
Automation features:
Features for developers:
HbbTV Testing Solutions
Digital TV Labs and HbbTV
Hybrid Broadcast Broadband TV (HbbTV) is an industry standard for hybrid digital TV which harmonises the delivery
of entertainment through broadcast and broadband. Digital TV Labs is part of the HbbTV Consortium, is the highest single contributor to the official HbbTV Test Suite and chairs the HbbTV Testing Group. Digital TV Labs is working with a number of new HbbTV platform operators, such as TNT 2.0 in France, to provide Ligada-based test suites and test services.
HbbTV Conformance Testing
For customers that don’t require the capability to perform inhouse execution of HbbTV testing, we are able to offer a
complete and comprehensive testing service. Our experienced Test Engineers will execute the Ligada Test Suite on the
receiver under test and provide a detailed report of the test results. This service enables manufacturers to conform to the requirements of the HbbTV Logo Licensing Policy.
To help customers diagnose and fix resulting receiver issues we offer hosting services that allow customer engineers to come to our labs, reproduce the failure cases and be supported by our Test Engineers, who can explain the precise
nature of the failure and its relation to the HbbTV specification. In 2012 Digital TV Labs became the first HbbTV
Registered Test Center.
Application Testing for Developers
Digital TV Labs is also able to support HbbTV Application Developers, with a range of products and services to ensure complete interoperability with HbbTV compliant devices.
Live Application Testing
Digital TV Labs maintains a library of current HbbTV applications, which are thoroughly exercised to confirm
correct receiver operation against a reference receiver. Our UK lab is fully equipped with a pan-EU satellite feed, enabling access to live HbbTV applications. We also tour Europe periodically and make regular recordings of terrestrial HbbTV broadcasts.
Since no conformance regime is yet in place, some applications make assumptions about receiver behaviour that
does not comply with the HbbTV specification. We are experts on HbbTV and can provide in-depth advice regarding receiver behaviour. We provide ‘real world’ testing services, which is critical to ensure receivers perform correctly in the field and provide a positive user experience.
First-Rate Support Services
Digital TV Labs has an unrivalled reputation for high service levels and responsive support services from both our
European and Hong Kong based labs. We provide installation and training services in local languages to ensure our
customers can focus wholly on their testing needs. We are committed to supporting the official HbbTV Test Suite as it
develops and will continue to develop new ‘Added Value’ test cases to further improve interoperability. In addition we are working with a number of HbbTV platform operators to provide support for specific HbbTV profiles.
