It is evaluated in the EMS test whether the EUT causes the malfunction by a peripheral electromagnetic wave. This radiation immunity test (IEC/EN61000-4-3) can be done with the precompliance EMS test system MR2350 described in this catalogue. The malfunction of the EUT can be observed on the PC screen through the EUT camera monitor put in the anechoic box. Of course, the EUT should be an equipment whose malfunction can be visually judged such as an equipment with LED or LCD.
EMC test consists of EMI and EMS tests. As for EMI test, it is evaluated whether the radiated emission or the conducted emission discharged from EUT (Equipment Under Test) exceeds the limit value set beforehand. This limit value
is used to guarantee that the EUT operation doesn’t give a remarkable disturbance to operation of other equipment and wireless communication. The emission test described above can be done by the EMI test system MR2300.
On the other hand, it is evaluated in the EMS test whether the EUT causes the malfunction by a peripheral electromagnetic wave. This radiation immunity test can be done with the precompliance EMS test system MR2350 described in this catalogue. The malfunction of the EUT can be observed on the PC screen through the EUT camera monitor put in the anechoic box. Of course, the EUT should be an equipment whose malfunction can be visually judged such as an equipment with LED or LCD.
Features:
Electric field strength of 1, 3, 10V/m
The electric field strength of 1, 3, 10V/m and moreover optionally 1 to 10V/m can be generated.
Mulfunction detection by EUT camera monitor
The electric field strength of 1, 3, 10V/m and moreover optionally 1 to 10V/m can be generated.
Compact and broadband antenna by our own development
The antenna, whose dimensions are as small as 578(W)×401(H)×250(D)mm and whose bandwidth is as broad as 30MHz to 3GHz, was developed by MICRONIX itself.
EMI+EMS test by MR2400
MR2400 combining the EMI test system MR2300 and the EMS test system MR2350 makes the EMC (EMI+EMS) test possible.

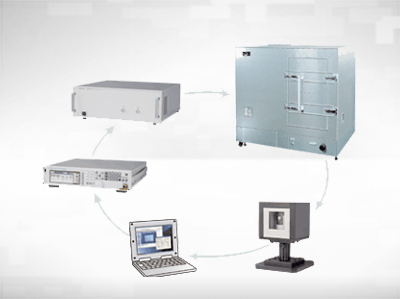

Whole system controlled with one PC
One PC controls all of applications such as the EMI test, the EMS test, the EUT camera monitor and the electric turntable (option).

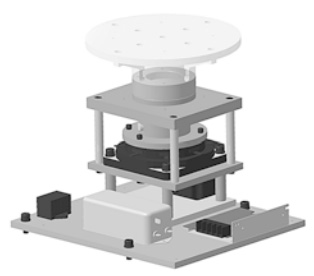

Electric turntable (factory option)
This option is an electric turntable of 220mm in diameter and 15kg in load. And this is controlled by the PC.
※ This can be applied to the EMI test system MR2300 as well. MAS20T and MAS240T are lined up as PC software.
System specifications:
Test frequency range
80 to 1000MHz
Electric field strength
1, 3, 10V/m and option (1 to 10V/m, 1V/m resolution)
MR2350 EMS Test System
Call For Price
Product Description
Description:
It is evaluated in the EMS test whether the EUT causes the malfunction by a peripheral electromagnetic wave. This radiation immunity test (IEC/EN61000-4-3) can be done with the precompliance EMS test system MR2350 described in this catalogue. The malfunction of the EUT can be observed on the PC screen through the EUT camera monitor put in the anechoic box. Of course, the EUT should be an equipment whose malfunction can be visually judged such as an equipment with LED or LCD.
EMC test consists of EMI and EMS tests. As for EMI test, it is evaluated whether the radiated emission or the conducted emission discharged from EUT (Equipment Under Test) exceeds the limit value set beforehand. This limit value
is used to guarantee that the EUT operation doesn’t give a remarkable disturbance to operation of other equipment and wireless communication. The emission test described above can be done by the EMI test system MR2300.
On the other hand, it is evaluated in the EMS test whether the EUT causes the malfunction by a peripheral electromagnetic wave. This radiation immunity test can be done with the precompliance EMS test system MR2350 described in this catalogue. The malfunction of the EUT can be observed on the PC screen through the EUT camera monitor put in the anechoic box. Of course, the EUT should be an equipment whose malfunction can be visually judged such as an equipment with LED or LCD.
Features:
Electric field strength of 1, 3, 10V/m
The electric field strength of 1, 3, 10V/m and moreover optionally 1 to 10V/m can be generated.
Mulfunction detection by EUT camera monitor
The electric field strength of 1, 3, 10V/m and moreover optionally 1 to 10V/m can be generated.
Compact and broadband antenna by our own development
The antenna, whose dimensions are as small as 578(W)×401(H)×250(D)mm and whose bandwidth is as broad as 30MHz to 3GHz, was developed by MICRONIX itself.
EMI+EMS test by MR2400
MR2400 combining the EMI test system MR2300 and the EMS test system MR2350 makes the EMC (EMI+EMS) test possible.
Whole system controlled with one PC
One PC controls all of applications such as the EMI test, the EMS test, the EUT camera monitor and the electric turntable (option).
Electric turntable (factory option)
This option is an electric turntable of 220mm in diameter and 15kg in load. And this is controlled by the PC.
※ This can be applied to the EMI test system MR2300 as well. MAS20T and MAS240T are lined up as PC software.
System specifications:
