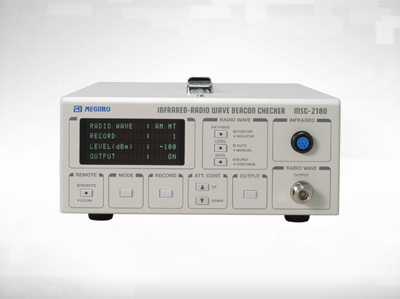

The MSG-2180 is the Beacon Checker especially designed for generating the simulation signals of testing car-navigation systems and there are two types of the Beacon, one is Radio wave beacon on expressways, the other is Infrared beacon on major ordinary roads.
FEATURES
In radio wave beacon, auto level control setting is available. In the setting, this unit automatically ups and downs radio wave beacon level to simulate a scene that a vehicle is coming near to and going away from a beacon.
In infraed beacon, the testing of down-link and up-link is possible fast,and datas of infrared beacon and radio wave beacon are fixed.
All operation can be controlled by RS-232C, and GP-IB & USB on option.
Since this unit is designed to be compact, light-weight and easy operation,it is suitable for using in production lines.
SPECIFICATIONS
Infrared beacon
Carrier frequency
2.4997GHz (Fixed)
Output level
Frequency stability less than ±1ppm
-60 to -100dBm step 1dB
Level accuracy less than ±1dB
Output impedance 50Ω, VSWR less than 1.5
Data Modulation Method
GMSK 64kbps frequency deviation range ±16kHz
Positioning and direction
AM modulation 1kHz (Square wave)10±2%
recognition signal : (Synchronizes to data clock 64kHz)
AM modulation signal phase inversion function
Record
1 to 3 (Fixed data)
Optical beacon
Modulation Method
Pulse amplitude modulation
Encoding form
Manchester code
Communication rate
Down 1024kbps Up 64kbps
Output level
Electric signal output TTL level
General Data
Interface
Serial interface (Standard) RS232C D-sub 9pins (Male)
Communication condition
19200bps 8bits, none-parity, stop-1 (Fixed)
Cable
Straight cable
GP-IB, USB (Option)
Power requirements
AC90V to 240V 50/60Hz (Multi slot- in) 15VA
Dimensions, overall
Approx. 240 (W)×100 (H)×350 (D) mm
Weight
Approx. 3.8kg
Operating temperature range
Less than +10ºC to +40ºC 80%H
Guarantee temperature range
Less than +10ºC to +35ºC 80%H
Storage temperature range
Less than 0ºC to +50ºC 90%H
*
Specifications are subject to change without notice.
