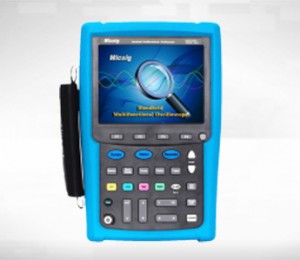

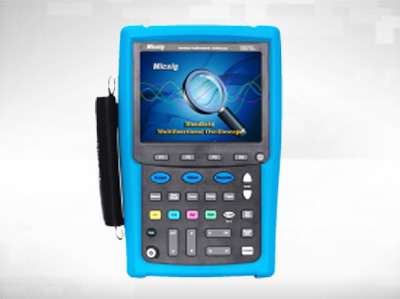

Handheld-Multifunctional-Oscilloscope-MS200-Series

MS500 Series (Isolated) Handle Multifunctional Oscilloscope

Call For Price

Categories: , .

Product Description

Three isolated inputs include two oscilloscope inputs and one multimeter input, and all isolated inputs allow independent floating measurements with each input.

multifunctional-oscilloscope-isolated-inputs-processing-unit

  • 7 inche TFT LCD touch screen 640*480 high resolution
  • 70MHz~200MHz selectable bandwidth, up to 190,000 wfms/s capture rate
  • 1GS/s real time sample rate, 240Kpts memory depth
  • 3 Operation modes: Touch, Button, Scroll wheel
  • Optional electronically isolated-inputs channels
  • Intergrate the functions of oscilloscope, multi-meter and recorder in one unit
  • Up to 4~5H Li-ion battery persistence working time
  • Support serial bus trigger, types: UART/RS232/RS422/RS485, LIN, CAN, SPI, I2C, ARINC429, MIL-STP-1553B
  • Support serial bus decode, types: UART/RS232/RS422/RS485, LIN, CAN, SPI, I2C, ARINC429, MIL-STD-1553B
  • Support video trigger, types: 625/PAL, SECAM, 525/NTSC, 720P, 1080I, 1080P
  • Support I/O port: USB host, USB device
Model Bandwidth Real time sampling rate Rise time Memory depth Maxcapture rate Channel Touch
operation		 Serial
bus trigger		 Serial bus
decode
MS510S 100MHz 1GSa/s ≤3.5ns 240Kpts 190,000wfms/s 2CH YES YES YES(7)
MS520S 200MHz 1GSa/s ≤1.5ns 240Kpts 190,000wfms/s 2CH YES YES YES(7)

MS200 Series Oscilloscopes operation MS200 Series Oscilloscopes operation2

Three operation modes for moving waveform, zooming in and out, and using menu by touch,button and scroll wheel.

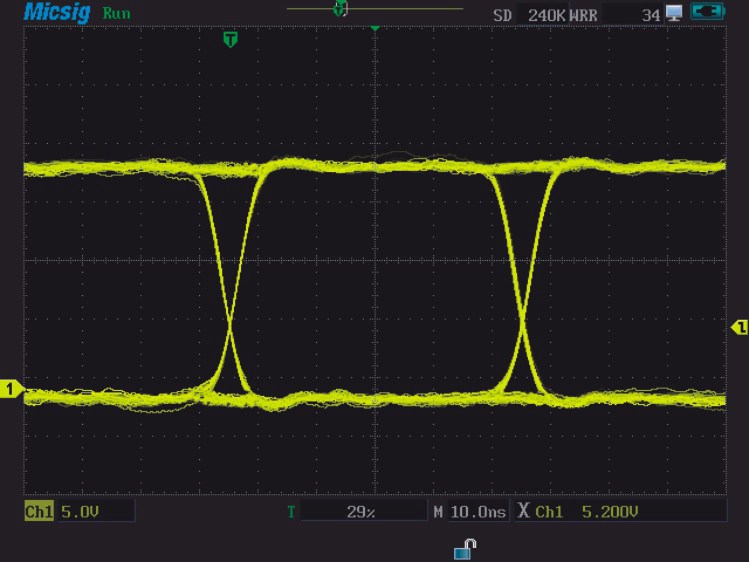

MS200 Series Oscilloscopes waveform MS200 Series Oscilloscopes waveform2

A perfect eye pattern contains an immense amount of parametric information about a signal, it gives you a visual indication of overall signal quality, noise level and signal jitter without looking at the data content. it finds errors like improper cable connections, bad contacts,incorrect grounding and missing or superfluous terminators. Serial bus trigger can be set to a variety of trigge conditions, users can find the wanted frame directly, reducing lots of their working loads.

Micsig's software functions
The ScopeSuite of Micsig’s software functions include updating, real time control, measurement, storage, dynamic display, record and data analysis.

240Kpts memory depth
240Kpts memory depth

signal-analysis
Persistance function keeps the abnormal signal stay longer and easy for analysis

signal-analysis
Persistance function keeps the abnormal signal stay longer and easy for analysis

high resolution
640 * 480 high resolution

Indoor mode
Indoor mode

Outdoor mode
Outdoor mode

31 auto measurements
31 auto measurements

Horizontal cursor, vertical cursor, cross cursor
Horizontal cursor, vertical cursor, cross cursor

multimeter record
3 types of record modes: multimeter record,oscilloscope measurement record and oscilloscope waveform record.

physical measurements
10 physical measurements such as AC/DC voltage, current, resistance etc.

Specification

Model MS510S MS520S
Bandwidth(BW) 100MHz 200MHz
Rise time ≤3.5ns ≤3.5ns
Real time sampling rate single channel :1GSa/s,dual-channels:500MSa/s
Memory depth single channel :240Kpts,dual-channels:120Kpts
Isolated channel support
Max waveform capture rate 190,000 wfms/s
Serial bus trigger UART、LIN、CAN、SPI、I2C、1553B、429
Vertical system
Channels 2 oscilloscope channels,1 multimeter channel
Limited bandwidth 20MHz
Coupling modes DC,AC,GND
Input impedance parallel 1MΩ±1% with 15pF±3pF
Vertical sensitivity range 5mV/div~50V/div
Vertical resolution 8bits
Max voltage input 600V CAT Ⅱ   300V CAT Ⅲ
Floating voltage from CHs to GND 1000V CAT Ⅱ   600V CAT Ⅲ
DC vertical gain accuracy 5mV/div~50V/div, 2.0%
Horizontal system
Timebase 4ns/divs~10s/divs
Timebase delay range -12divs~50s
Timebase accuracy 20ppm
Sample mode normal  average, pk-pk envelope
Dynamic record support
Store waveform support internal waveform storage and flash disk storage
Trigger system
Trigger types edge, pulse, logic, vedio （PAL,NTSC,SECAM,720P,1080I,1080P）serial bus（UART、LIN、CAN、SPI、I 2C、1553B、429）
Trigger coupling DC,AC,High-frequency suppression,Low-frequency suppression, Noise suppression
Trigger modes auto, normal, single
Trigger source CH1,CH2,external
Trigger inhibition range 200ns~10s
Measurement
Automatic measurements 31 types
Cursor types horizontal cursor, vertical cursor, cross cursor
Math
Operator  + , - , * , /
FFT window settings Rectangular, Hamming, Blackman-Harris, Hanning
Display features
Display screen 5.7 inch TFT LCD touch screen
Resolution 640*480
3D waveform display not support
Grid of waveform display zone horizontal 12 divs * vertical 8 divs
Format YT mode , XY mode
Interpolation method sin（x）/x
Persist auto, 100ms~10s or ∞
I/O port
Mini USB2.0 connect to  PC
USB2.0 connect to Flash disk
Multimeter
Multimeter type 10 physical measurements ,such as voltage, current, resistance, capacitance, diode , etc
Multimeter accuracy 5000counts
Multimeter display max, average, min, values with time stamp; relative measurement
Data Logger
Logger content

multimeter measurements, oscilloscope measurements, oscilloscope waveforms
Logger timebase multimeter measurements,10s/div ~ 20min/div
oscilloscope measurements 10s/div ~ 20min/div
oscilloscope waveform 100us/div ~ 2min/div
Logger time length 49s~ ∞
Power
Power adapter input:100-240VAC,50-60HZ,2A; output:12VDC,5A
Battery capacity:7.4V/6000mAh, Work time:4~5 hours
Work environment
Temperature -20℃ ~ +50℃
Humidity < 85%RH
Dimension
Size 254mm*160mm*60mm
Weight main unit: 1380g (no battery),  battery(standard): 276g
