MSA438TG 3.3GHZ Handheld Color Spectrum Analyzer with TG

Product Description

Description:
Frequency range from 50kHz to 3.3GHz, With 5MHz to 3.3GHz tracking generator. The tracking generator is a signal source which generates the sine wave synchronized with the sweep of the spectrum analyzer. For example, the tracking generator outputs 1MHz sine wave when the spectrum analyzer is at 1MHz sweep point. The 1GHz is output at 1GHz sweep point as well. Therefore, the amplitude frequency characteristics of various electronic components and circuits can be observed on the screen without any troublesome operation. Moreover, the VSWR bridge MVS300 (option) enables to measure the return loss.

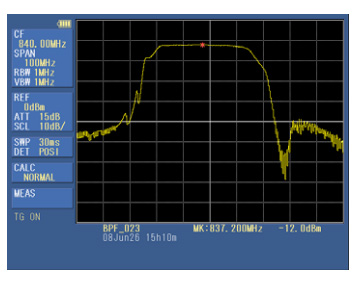

Frequency response of filter

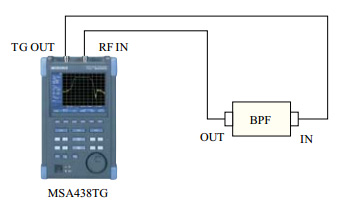

The input and the output of a filter are connected to TG OUT and RF IN respectively. The frequency response of a filter is observed in the range of 5MHz to 3.3GHz. The frequency response of the coaxial cable and MSA438TG is made flat by using the NORMALIZING function.

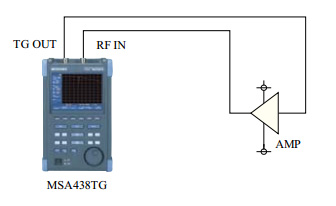

Gain characteristics of amplifier
The frequency response of an active circuit such as an amplifier besides a passive circuit such as LC filter is measured. A measurement example of the gain-frequency characteristics of an amplifier is shown in the figure below.
The level of TG OUT is -10dBm.

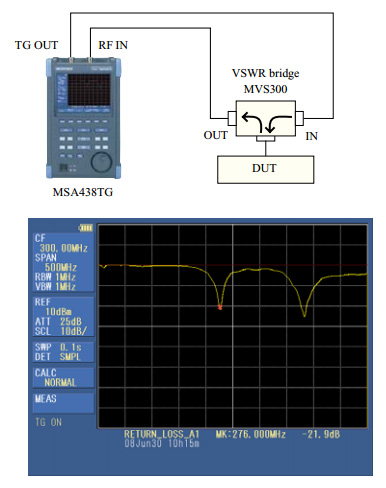

Return loss measurement
VSWR bridge MVS300 (option) connected to TG OUT and RF IN of MSA438TG enables the return loss measurement. The measured frequency range is from 5MHz to 3GHz. Additionally, the calibration of the return loss 0dB is done by using the NORMALIZING function.

Comparison:
The best-seller model MSA300 series was extremely upgraded to MSA400 series as shown in “Comparison between MSA300 and MSA400 series” table. However, the weight and dimensions are almost same, and the price was suppressed as low as possible.

MSA438 frequency range from 50kHz to 3.3GHz, The most popular model. Suitable for cellular phone, 2.4GHz wireless LAN, 2.5GHz WiMAX, RF-ID and Broadcasting.

Item	MSA300 series	MSA400 series
LCD	mono 4.7 inch	color 5.7 inch
	320 x 240 dots	640 x 480 dots
Battery operation	2.5 hour, Ni-MH	4 hour, Lithium-ion
remainder display	Not displayed	Displayed at 5 levels
charging indicator	Not indicated	Indicated by two colors LED
Communication	RS-232C	USB (B terminal)
External memory	No	USB (A terminal)
Display dynamic range	80dB/8div	100dB/10div
Spectrum data points	251(H) x 201(V)	501(H) x 381(V)
Display scale	2, 10dB/div	2, 5, 10dB/div
Average noise level	-117dBm	-127dBm
Freq. setting resolution	100kHz	20kHz
External trigger	No	Yes
RF input connector	SMA(J)	N(J)
Number of save data	100	200
Date storage format	original	BMP,CSV
Label and file name	No	16 characters max @ label
Protection bumper	No	Yes
Removing battery cover	By screwdriver	By hand

Product Features:
Compact and lightweight 1.8kg
The dimensions are as small as 162(W)×71(H)×265(D)mm, and the weight is only 1.8kg including the battery.
It is very convenient for outdoor use and on business trip.

Large and color TFT display
5.7 inches, 640×480 dots and color LCD

Four hours battery operation
Lithium-ion battery enables about four-hour battery operation.

USB memory
USB memory can be used as a removable storage. The screen image is stored by BMP format,
and the spectrum and the setting parameters are stored by CSV format.

USB communication
Such fast transfer rate as 12Mbps maximum was achieved by adoption of USB interface.

Accrate frequency measurement by PLL synthesizer
The center frequency is accurately set by PLL (Phase Locked Loop) synthesizer.
Moreover, the frequency counter (factory option) enables to measure the frequency of the signal more accurately.

Average noise level　-127dBm
The low average noise level of -127dBm @1GHz provides a wide dynamic range.

100dB display dynamic range
As the display scale in the amplitude axis is 100dB/10div, the signal is observed in a wide dynamic range.

Easy operation by AUTO mode

• Auto range operation: RBW, VBW and sweep time are automatically selected based on the frequency span.
• Auto tuning operation: The center frequency is adjusted to the maximum level within full span, and the optimum RBW, VBW and sweep time are chosen.

Competitive functions

• Measuring functions: Channel power, Adjacent channel power, Occupied bandwidth, Electric field strength, Magnetic field strength and Frequency measurement.
• Calculation functions: Max hold, Min hold, Averaging, Over write
• Marker measurement and peak search function
• Save/Load function
• Hard copy with printer

Abundant options
A lot of options such as PC software, Logging software, VSWR bridge, Dipole antenna, Magnetic field probe,
USB printer, Frequency counter, Lithium-ion battery and Test accessories are available.

Front view

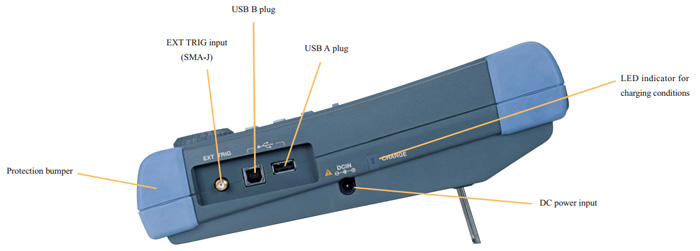

Side view

Products Specification:

Frequency section
Frequency range	50kHz to 3.3GHz (MSA438/438TG/438E)
	50kHz to 8.5GHz (MSA458)
Center frequency
Setting resolution	20kHz
	Allows rotary encoder, numeric key and function key
Accuracy	±(30+20T)kHz±1 dot @ Span ≦10MHz, RBW3kHz, ※1
	±(60+300T)kHz±1 dot @ Span ≧20MHz, RBW100kHz, ※1
RBW freq. error	±4kHz @ 3kHz,10kHz, 30kHz
	RBW±20% @ 100kHz, 300kHz
	RBW±10% @ 1MHz, 3MHz
Frequency span
Setting range	〈MSA438/438TG/438E〉0Hz (zero span), 200kHz to 2GHz (1-2-5 step) and 3.3GHz (full span)
	〈MSA458〉0Hz (zero span), 200kHz to 5GHz (1-2-5 step) and 8.5GHz (full span)
Accuracy	±3%±1 dot @ one step slower sweep time than AUTO,※1
Display dots	501dots＠ LCD screen, 1001dots @ USB communication ※1001 dots are captured in the unit.
Rosolution bandwidth	3dB bandwidth
Setting range	〈MSA438/458/438TG〉3kHz to 3MHz (1-3 step) and AUTO
	〈MSA438E〉3k, 9k (6dB), 30k, 120k (6dB), 300k, 1M, 3MHz and AUTO
Accuracy	±20%
Selectivity	1：12 (typical) @ 3dB:60dB
Video bandwidth	100Hz to 1MHz (1-3 step) and AUTO
SSB phase noise	-90dBc/Hz (typical) @ 100kHz offset, RBW 3kHz, VBW100Hz, sweep time 1s
Spurious response	less than -60dBc
Harmonics	less than -40dBc @ ≧100MHz
Amplitude section
Reference level
Setting range	+10 to -60dBm, 1dB step
Accuracy	±0.8dB±1 dot @ CF100MHz, RBW3MHz, VBW 1MHz, REF -15dBm, ※1
Unit	dBm, dBV, dBmV, dBμV, dBμV/m, dBμA/m
Average noise level	-127dBm (typical) @ 1GHz
Frequency characteristics	s ±2.0dB±1 dot @ ＜100MHz
	±1.0dB±1 dot @ ≧100MHz
Input impedance	50Ω
Input VSWR	less than 2.0
Input attenuator
Operating range	0 to 25dB (1dB step), coupled with reference level
Switching error	±0.6dB @ 100MHz
RBW switching error	±0.6dB
Display scale
Display dots	381 dots/10div
Scale	2dB/div, 5dB/div, 10dB/div
Accuracy	±(0.2dB+1 dot)/2dB ±(0.4dB+1 dot)/5dB
	±(0.8dB+1 dot)/10dB ±(1.8dB+1 dot)/83dB
Input damage level	+27dBm(CW average power), 25VDC
Input connector	N(J) connector
Sweep section
Sweep time
Setting range	10ms to 30s (1-3 step, Span 0 to 2GHz) and AUTO
	30ms to 30s(1-3 step, Span 5GHz @ MSA458 and full) and
AUTO
Accuracy	±0.1%±1 dot @ Span 0 to 5GHz
	±2.5%±1 dot @ Full span
Trigger	Available only for zero span
Trigger mode	AUTO
Trigger source	Internal and External
External trigger
Voltage range	1 to 10Vp-p
Frequency range	DC to 5MHz
Input coupling	DC coupling
Trigger level	approx. 0.56V (fix)
Input RC	approx.10kΩ// less than 15pF
Input damage level	±50V (DC+ACpeak)
Input connector	SMA(J) connector
Detection mode	Positive peak, Negative peak, Sample
	T : sweep time (s), ※1 : 23±5℃、less than 28℃/70%RH
Functions
Marker measurement	NORM : displays frequency (8digits max) and level (4digits max), at marker point.
	DELTA : displays frequency difference and level difference between two markers.
Peak search function	Searches for peak level within all of 10 div (NORM mode) or within ZONE specified (ZONE mode) and displays frequency and level at peak level, and moreover NEXT peak at NORM mode.
Calculation function	NORM, MAX HOLD, MIN HOLD, AVERAGE, OVER WRITE, Number of sweeps is 2 to 1024 (power of 2 ) and infinite. Measuring function Channel power, Adjacent channel power, Occupied bandwidth, Electric field strength (needs optional dipole antenna), Magnetic field strength (needs optional magnetic field probe) and Frequency counter (factory option) Auto tuning When pressing AUTO TUNE key, the spectrum of maximum level within full span is adjusted to center, and reference level, RBW, VBW and sweep time are set to optimum parameters.
Save/ Load	Saves 200 spectrums and 200 setting parameters.
General
Communication
Interface	Corresponding to USB 2.0
Connector	B plug (device)
Transfer rate	Full speed (12Mbps)
Hard copy	USB printer (option) connected to A plug (host) eanbles hard copy of screen
USB memory	Uses A plug (host), and stores spectrum data, setting parameters and spectrum data + setting parameters.
Screen
Display	5.7 inches and color LCD
Backlight	LED backlight
Number of dots	640(H)×480(V) dots
Power supply
Kind of power supply	External DC source (by dedicated AC adaptor MA400) and Lithium-ion battery (by optional MB400)
Dedicated AC adaptor	Input : 100 to 240 VAC
	Output : 9VDC/2.6A
Lithium-ion battery	7.4V/5000mAh
Charge function	Capable of charging during power-off. Indicates 4 conditions with two colors LED (red and green).
Remainder indication	5 levels indication
Tracking generator (only MSA438TG)
Frequency range	5MHz to 3.3GHz
Output level	-10dBm±1dB @ 1GHz
Output level flatness	±1.5dB
Normalizing function	Compensates input frequency response flat on screen.
Output impedance	50Ω
Output VSWR	less than 2.0
Output connector	N(J) connector
Other
Operating temperature	0 to 50℃ (guaranteed at 23±10℃ but at 23 ±5℃ as to items with ※1, without carrying case)
Operating humidity	less than 40℃/80%RH (guaranteed at less than 33℃/70%RH but at
	less than 28℃/70%RH as to items with ※1, without carrying case)
Storage temperature	-20 to 60℃, less than 60℃/70%RH
Dimensions	162(W)×71(H)×265(D)mm (excluding projections, protection bumper and stand)
Weight	approx. 1.8kg (including battery)
Standard accessories	・AC adaptor MA400
	・Carrying case
	・Accessory pouch
	・Operation manual
