Product Description
The world’s first handheld signal analyzer with REAL TIME plus SWEEP system!! With Fast Fourier Transform (FFT) and conventional sweep systems, each strong point of both systems is usable. REAL TIME system enables unsteady signal measurement, time domain analysis and modulation analysis. SWEEP system enables measurement by wide span.

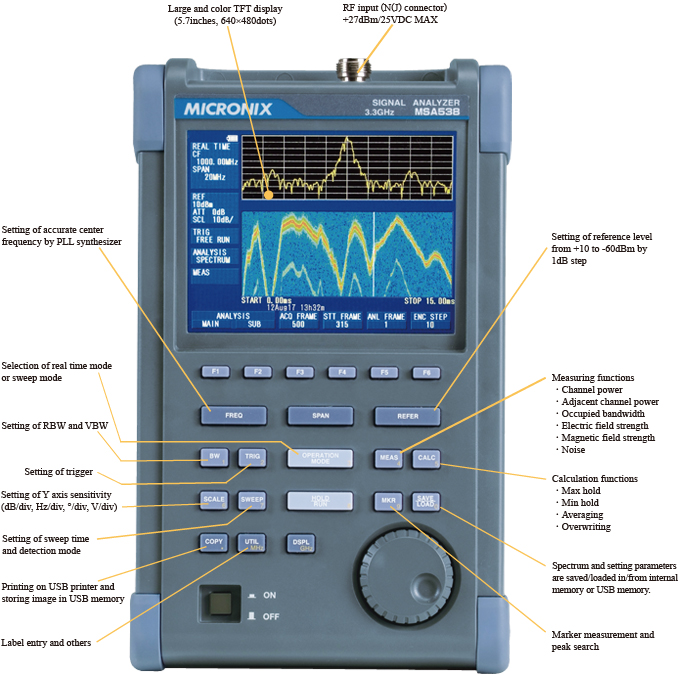

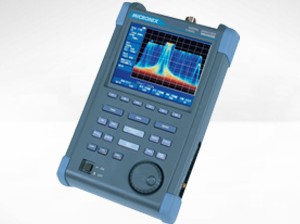

MSA538TG,
Tracking Generator added to MSA538 enables the measurement and evaluation of amplitude frequency characteristics of filter, amplifier, electronic parts or circuit.
Built-in TG from 5MHz to 3.3GHz
Frequency range：20kHz to 3.3GHz
- 8 kinds of analyses Spectrum, Spectrogram, OverWrite, Time domain analyses(5 kinds)
- 20MHz SPAN maximum
- Fast OverWrite analysis of 720 frames/sec
- Large memory of 16K frames and high speed USB communication of 19ms/sec.
DTF adapter MA430
The distance to discontinuity point of a cable and the length of a normal cable can be measured.
VSWR bridge MVS300B
Return loss of electronic parts or circuit can be measured.
Features
Real time plus Sweep system
In real time system, the spectrum which occurs in an instant won’t be missed. It is optimum for analyzing a noise and a transitional phenomenon. On the other hand, the sweep system is suitable for observing at wide frequency range. Various applications can be covered by making good use of advantage of each system.
Sufficient analysis functions
In real time system, Spectrogram analysis and OverWrite analysis can be performed besides Spectrum analysis.
Time domain analysis expanding analyzer capability
In real time system, time domain analyses such as power vs. time, frequency vs. time, phase vs. time, IQ vs. time and Q vs. I are possible.
Fast OverWrite analysis of 720 frames/ sec
Since OverWrite analysis in real time system is processed at high speed as 720 frames/sec, even unnecessary spectrum which appears rarely isn’t missed.
Powerful trigger functions
In real time system, powerful trigger functions such as channel power trigger, power trigger, IF level trigger and external trigger can be used.
Real time operation by 20MHz maximum span
Since a signal can be observed with maximum span of 20MHz in real time system, the modulation signals of almost all of wireless communications can be captured.
Large memory of 16K frames and high speed USB communication
In real time system, data can be captured for a long time because the IQ memory is as large as 16K frames (64Mbytes). Moreover, IQ data can be transmitted to PC at speed of 19ms/frame.
Average noise level -162dBm/Hz
The average noise level of -162dBm/Hz at [MSA538/538TG/538E] and -157dBm/Hz at [MSA558/558E] is achieved.
At span 20kHz in real time mode, it is -140dBm and -135dBm respectively.
Compact and lightweight 1.8kg
The dimensions are as small as 162(W)×71(H)×265(D)mm, and the weight is only 1.8kg including the battery. It is very convenient for outdoor use and on business trip.
Four-hour battery operation
Lithium-ion battery MB400 (option) fully charged enables about four-hour battery operation at backlight off.
Data storage into USB memory
USB memory can be used as an external memory. The screen image is stored by BMP format. And the spectrum waveform, IQ data and setting parameters are stored by CSV format. Moreover, the screen image is copied on the optional USB printer as it is.
Functions comparable to a bench type
- Measuring functions:Channel power, Adjacent channel power, Occupied bandwidth, Electric field strength, Magnetic field strength and Noise measurement
- Calculation functions:MaxHold, MinHold, Averaging, OverWrite
- Marker measurement and peak search function
Specialisations:
| Frequency section |
| Frequency range |
20kHz to 3.3GHz (MSA538/538TG/538E) |
|
20kHz to 8.5GHz (MSA558/558E) |
| Center frequency |
|
| Setting resolution |
100kHz |
|
Allows rotary encoder, numeric key and function key |
| Accuracy |
Sweep mode: ±(30+20T)kHz±1 dot @ Span ≦10MHz, RBW3kHz, ※1 |
|
±(60+300T)kHz±1 dot @ Span ≧20MHz ※1 |
|
Real time mode: ±0.5ppm ±1 dot |
| Frequency span |
|
| Setting range |
0Hz (zero span), 100kHz to 2GHz (1-2-5 step) and 3.3GHz (full span) |
|
〈MSA538/538TG/538E〉0Hz (zero span), 100kHz to 5GHz (1-2-5 step) and 8.5GHz (full span)〈MSA558/558E〉 |
|
Real time mode:20KHz to 20Mhz (1-2-5 step) |
| Accuracy |
Sweep mode: ±3%±1 dot @ one step slower sweep time than AUTO,※1 |
|
Real time mode: ±0.1% ±1dot |
| Display dots |
501dots |
| Rosolution bandwidth |
Valid only in sweep mode, 3dB BW |
| Setting range |
300Hz to 3MHz (1-3 step) and AUTO |
|
in additon 9K (6dB), 120K (6dB), and 1MHz (6dB) <MSA 538E/558E> |
| Accuracy |
±5% |
| Selectivity |
1：4.5 (typical) @ 3dB:60dB |
| Video bandwidth |
Valid only in sweep mode, 3dB BW. |
| Setting Range |
100Hz to 1MHz (1-3Step) and AUTO |
| SSB phase noise |
-90dBc/Hz (typical) @ 100kHz offset |
| Spurious response |
less than -60dBc@ sweep mode, applied to 5dB lowe signal from REF level, spurious free mode at MSA558/558E |
|
less than -60dBc @ real time mode, applied to 5dB lower signal from REF level, to be no signal of (REF-30dB) or more outside center frequency ±200MHz at MSA558/558E |
| Residual response |
-80dBm typ @REF level ≧-15dBm |
| Harmonics |
-40dBc typ @≧10MHz |
| Reference frequency |
Temperature stability ±0.2ppm @ 0 to 50°C; Aging Rate±0.5ppm @ 1 year |
| Amplitude section |
| Reference level |
|
| Setting range |
+10 to -60dBm, 1dB step |
| Accuracy |
±0.8dB±1 dot @ CF100MHz, REF -15dBm, ※1 |
| Unit |
dBm, dBV, dBmV, dBμV, dBμV/m, dBμA/m |
| Average noise level |
-162dBm/Hz (typical) @ 1GHz (MSA538/538TG/538E)-157dBm/Hz (typical) @ 1GHz (MSA558/558E)Ref. At real time mode, 1Ghz and Span 20Khz: – 140dBm typ <MSA538/538TG/538E>; 135dBm typ <MSA558/558E> |
| Frequency characteristics |
±2.6dB±1 dot @ ＜10MHz |
|
±1.0dB±1 dot @ ≧10MHz |
| Input impedance |
50Ω |
| Input VSWR |
2.0 typ |
| Input attenuator |
|
| Attenuation range |
0 to 25dB (1dB step), coupled with reference level |
| Switching error |
±0.6dB @ 100MHz |
| Display scale |
|
| Display dots |
381 dots/10div |
| Scale |
Spectrum and OverWrite: 2.5, 10dB/div
Power vs. time: 1, 2, 5, 10%/div of span (actually, displayed by “Hz/div” coupled with span)
Phase vs. time: 5,10,20,40°/div |
| Accuracy |
±(0.1dB+1 dot)/2dB ±(0.2dB+1 dot)/5dB |
|
±(0.4dB+1 dot)/10dB ±(0.9dB+1 dot)/83dB |
| Offset |
Spectrum: ±200dB, resolution 0.1dB
Power vs. time ±100dB, resolution 1dB
Frequency vs. time: ±(span/2), resolution (span/100)
Phase vs. time:±200°, resolution 1°
IQ vs. time: ±1V, resolution 10mV |
| Input damage level |
+27dBm(CW average power), 25VDC |
| Input connector |
N(J) connector |
| Sweep section |
| Sweep time |
Valid only in sweep mode. |
| Setting range |
10ms to 30s (1-3 step, Span 0 to 2GHz) and AUTO |
|
30ms to 30s(1-3 step, Span 5GHz @ only MSA558/558E and full) and AUTO |
| Accuracy |
±0.1%±1 dot excluding full span |
|
±1.5%±1 dot @ Full span <MSA538/538TG/538E> |
|
±2.5%±1 dot @ Full span <MSA558/558E> |
| Trigger |
Valid only in real time and zero span of sweep mode. |
| Scan mode |
Single, Continuous @ valid only in real time mode |
| Trigger source |
Sweep mode: Internal external Real time mode: Channel power, Power, IF level and external |
| Level setting range |
Internal: fixed @ sweep mode
Channel Power: 0dB (REF level) to -40dB, 1dB step
Power:0dB (REF level) to -40dB, 1dB step
IF level: 1 to 100% (full scale of A/D converter), 1% step |
| Slope |
Rising, Falling @ valid only in real time mode. |
| Pre-trigger |
Valid only in real time mode. |
| Setting range |
0 to 100%, 25% step |
| External trigger |
|
| Voltage range |
1 to 10Vp-p |
| Frequency range |
DC to 5MHz |
| Input RC |
approx. 10KΩ//less than 15pF |
| Input coupling |
DC coupling |
| Trigger level |
approx. 0.56V (fixed) |
| Input damage level |
±50V (DC+ACpeak) |
| Input connector |
SMA(J) Connector |
| Time resolution |
5 samples @ channel power |
|
1 sample @ power |
|
14.7ns @ IF level |
| Detection mode |
Positive peak, Negative peak and Sample @ valid only in sweep mode.※ As for MSA538/558E, QP and AV added further. |
MSA538TG 3.3GHZ Handheld Spectrum Analyzer/ Signal Analyzer with builtin Tracking Generator
Call For Price
Product Description
The world’s first handheld signal analyzer with REAL TIME plus SWEEP system!! With Fast Fourier Transform (FFT) and conventional sweep systems, each strong point of both systems is usable. REAL TIME system enables unsteady signal measurement, time domain analysis and modulation analysis. SWEEP system enables measurement by wide span.
MSA538TG,
Tracking Generator added to MSA538 enables the measurement and evaluation of amplitude frequency characteristics of filter, amplifier, electronic parts or circuit.
Built-in TG from 5MHz to 3.3GHz
Frequency range：20kHz to 3.3GHz
DTF adapter MA430
The distance to discontinuity point of a cable and the length of a normal cable can be measured.
VSWR bridge MVS300B
Return loss of electronic parts or circuit can be measured.
Features
Real time plus Sweep system
In real time system, the spectrum which occurs in an instant won’t be missed. It is optimum for analyzing a noise and a transitional phenomenon. On the other hand, the sweep system is suitable for observing at wide frequency range. Various applications can be covered by making good use of advantage of each system.
Sufficient analysis functions
In real time system, Spectrogram analysis and OverWrite analysis can be performed besides Spectrum analysis.
Time domain analysis expanding analyzer capability
In real time system, time domain analyses such as power vs. time, frequency vs. time, phase vs. time, IQ vs. time and Q vs. I are possible.
Fast OverWrite analysis of 720 frames/ sec
Since OverWrite analysis in real time system is processed at high speed as 720 frames/sec, even unnecessary spectrum which appears rarely isn’t missed.
Powerful trigger functions
In real time system, powerful trigger functions such as channel power trigger, power trigger, IF level trigger and external trigger can be used.
Real time operation by 20MHz maximum span
Since a signal can be observed with maximum span of 20MHz in real time system, the modulation signals of almost all of wireless communications can be captured.
Large memory of 16K frames and high speed USB communication
In real time system, data can be captured for a long time because the IQ memory is as large as 16K frames (64Mbytes). Moreover, IQ data can be transmitted to PC at speed of 19ms/frame.
Average noise level -162dBm/Hz
The average noise level of -162dBm/Hz at [MSA538/538TG/538E] and -157dBm/Hz at [MSA558/558E] is achieved.
At span 20kHz in real time mode, it is -140dBm and -135dBm respectively.
Compact and lightweight 1.8kg
The dimensions are as small as 162(W)×71(H)×265(D)mm, and the weight is only 1.8kg including the battery. It is very convenient for outdoor use and on business trip.
Four-hour battery operation
Lithium-ion battery MB400 (option) fully charged enables about four-hour battery operation at backlight off.
Data storage into USB memory
USB memory can be used as an external memory. The screen image is stored by BMP format. And the spectrum waveform, IQ data and setting parameters are stored by CSV format. Moreover, the screen image is copied on the optional USB printer as it is.
Functions comparable to a bench type
Specialisations:
Power vs. time: 1, 2, 5, 10%/div of span (actually, displayed by “Hz/div” coupled with span)
Phase vs. time: 5,10,20,40°/div
Power vs. time ±100dB, resolution 1dB
Frequency vs. time: ±(span/2), resolution (span/100)
Phase vs. time:±200°, resolution 1°
IQ vs. time: ±1V, resolution 10mV
Channel Power: 0dB (REF level) to -40dB, 1dB step
Power:0dB (REF level) to -40dB, 1dB step
IF level: 1 to 100% (full scale of A/D converter), 1% step
