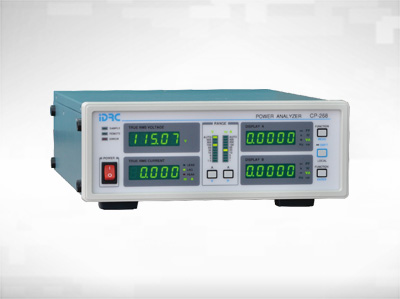

CP-268 Series-Multi Range Power Meter

Call For Price

Categories: , .

Product Description

Features

  • IDRC CP-268 Series multi-range power meter Watt resolution up to 0.01mW at 150V/300V range
  • Multi ranges to be best solution for component test.
    • 9 Voltage ranges from 1.5V, 3V, 6V ~ 600V;
    • 15 current with a powerful internal sensor measurement function, all the current ranges form 1mA, 2mA, 5mA ~ 50A(CP-268-5),connected in single terminal, without switching terminals or addition external sensors (45 ~ 65Hz).
    • 135 watt ranges .(CP-268-5), widely measurement range from “standby power” to 30kW, meet the requirement of ENERGY STAR.
  • Proper for low capacity rectification load, the accuracy will not deviate even when PF=0.1
  • True RMS volatge, current measure, auto/manual range.
  • Frequency resolution 0.001Hz.
  • All digitized type.
  • Close case calibration, no adjust, soft calibration, high stability, long interval between two calibrations.
  • IDRC CP-268 Series multi-range power meter seven measure parameter: V, A, W, PF, VA, VAR, Hz
  • Peak current over range indication.
  • Current phase lead or lag indication
  • 4 screens display , 4 test values at same time, all function refresh rate is 5 times/sec.
  • Last panel set memory.
  • Build-in RS-485 interface, baud rate up to 115K bps
  • GPIB SCPI compatible (optional)
  • CE approved

Products Specification:

TYPE CP-268-1 CP-268-2 CP-268-5 CP-268-PS
Voltage(V) Ranges (Auto or Manual)(9 range) 30V 60V 150V 300V 600V RMS 1.5V 3V 6V 15V 30V 60V 150V 300V 600V RMS
Display Resolution 5 digits
Operating Principle Digital Calculation True RMS
Crest Factor Up to 1.7(at FULL SCALING)
Frequency Range 10Hz to 1000Hz
Accuracy (23℃ ± 5℃) 10 to 20Hz ±1% reading ± 1% range ± 2C
20 to 30Hz ±0.5% reading ± 0.5% range ± 2C
30 to 45Hz ±0.2% reading ± 0.2% range ± 2C
45 to 66Hz ±0.1% reading ± 0.1% range ± 2C
66 to 550Hz ±0.2% reading ± 0.2%range ± 0.1% / 100Hz
550 to 1000Hz ±0.2% reading ± 0.5%range ± 0.2% / 100Hz
Maximum Input Continuous Continuous 600V RMS / 1000Vpk
Input impedance 2 MΩ and 10 pF on all ranges
Effective input range 20% to 120% of the range
Current (A) Ranges (Auto or Manual)(15 ranges) 100mA 200mA 500mA 1A 2A 5A 10A 20A RMS 1mA 2mA 5mA 10mA 20mA 50mA 100mA 200mA 500mA 1A 2A 5A 10A 20A RMS 1mA 2mA 5mA 10mA 20mA 50mA 100mA 200mA 500mA 1A 2A 5A 10A 20A 50A RMS 1mA 2mA 5mA 10mA 20mA 50mA 100mA 200mA 500mA 1A 2A 5A 10A 20A RMS
Display Resolution 5 digits
Operating Principle Digital Calculation True RMS
Crest Factor Up to 2 (at FULL SCALING) Up to 4 (at FULL SCALING)
Frequency Range 10Hz to 1000Hz
Accuracy (23℃± 5℃) 10 to 20Hz ±1% reading ± 1% range ± 2C
20 to 30Hz ±0.5% reading ± 0.5% range ± 2C
30 to 45Hz ±0.2% reading ± 0.2% range ± 2C
45 to 66Hz ±0.1% reading ± 0.1% range ± 2C
66 to 550Hz ±0.2% reading ± 0.2%range ± 0.1% / 100Hz
550 to 1000Hz ±0.2% reading ± 0.3%range ± 0.2% / 100Hz
Maximum Input Continuous 20A RMS / 40Apk 50A RMS / 100Apk 20A RMS / 80Apk
Input impedance All ranges ≦ 2 mΩ
Effective input range 10% to 110% of the range
Power(W) Ranges (Auto or Manual) 3W to 12kW 40 ranges 1.5mW to 12kW 126 ranges 1.5mW to 30kW 135 ranges 1.5mW to 12kW 126 ranges
Display Resolution 5 digits
Operating principle Digital Calculation True Watt
Frequency Range 10Hz to 1000Hz
Accuracy (23℃ +/- 5℃) 10 to 20Hz ±1% reading ± 1% range ± 2C
20 to 30Hz ±0.5% reading ± 0.5% range ± 2C
30 to 45Hz ±0.2% reading ± 0.2% range ± 2C
45 to 66Hz ±0.1% reading ± 0.1% range ± 2C
66 to 550Hz ±0.2% reading ± 0.2%range ± 0.1% / 100Hz
550 to 1000Hz ±0.2% reading ± 0.5%range ± 0.2% / 100Hz
Effective input range 2% to 110% of the range (at 47 to 63Hz) 5% to 110% of the range (at all range)
Frequency(Hz) Display Resolution 5 digits
Maximum resolution 0.001Hz of 10.000Hz to 99.999Hz 0.01Hz of 100.00Hz to 999.99Hz 0.1Hz of 1000.0Hz to 2000.0Hz
Operating Principle Reciprocal Counting method
Accuracy(23℃ ± 5℃) ±0.02% ± 1C
Measuring Input Voltage
Effective input range 10% to 100% of the voltage range
Measuring Range 10 Hz to 2kHz
