DSP-HP-Series

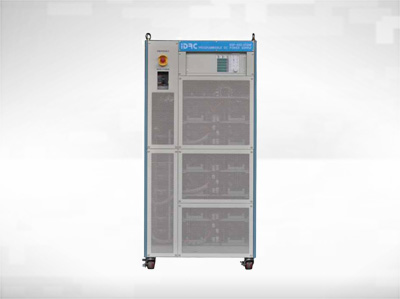

DSP-HP Series-Programmable DC Power Supply

Call For Price

Categories: , .

Product Description

  • Up to 70 models, 16V~1000V / 40A~5000A / 40kW~160kW, are available for
    selection.
  • Up to 5 units in parallel (800kW) and 2 units in series.
  • Max. current 25000A in parallel.
  • Constant voltage / constant current with automatic crossover.
  • Optional constant power function.
  • IDRC DSP Series Programmable DC power supply uses digitalized design :
    • High resolution of D/A (16 bits)setting output voltage & current,
    • High resolution of A/D (24 bits H.W.) measurement output voltage & current.
  • True Watt and True RMS current measurement.
  • Complete Protection : OVP, OCP,OTP, Reversed polarity protection.
  • Definable output voltage ramp up and down with adjustable time.
  • DSP-HP Series can store 20 sets of memories, can be recalled manually in front panel.
  • 50 sets of sequence memories: it can store parameters of Voltage,
    current and time in every set and operate in order.
  • Last Panel Set.
  • KEY LOCK setting.
  • Embedded 3 RISC micro-controllers.
  • Built-in remote sensing with max. 5V compensation.
  • Digital Encoder Knobs, Pushbutton Settings.
  • Standard GPIB and Isolation RS-485 Interface.
  • RS-485 baud rate up to 57600 bps.
  • GPIB are compatible with SCPI.
  • Analog Programming and monitoring, isolated type is available for optional selection.
  • Modularized design to shorten lead time and improve reliability.
  • Speed-Controlled Fan
  • DC output ON / OFF switch.
  • Emergency stop switch.

Markets and Applications

  • Aerospace and satellite Test
  • Water purification
  • Telecom and IT industry
  • Heat processing
  • Automated test equipment
  • Chemical processing
  • Factory automation
  • Semiconductor manufacturing
  • QC testing
  • Battery charging and testing
  • Burn-in
  • Electroplating , sputtering and coating
  • Solar application
  • New energy R&D

Products Specification:

specification :
Output Model Capacity (W) Ripple Weight Approx.kg Size AC Input (3Ø 380V 50/60Hz)
CV CC CV CC Power
V A mVrms mArms VA
40 1500 DSP-040-1500HP 60k 50 1500 410 35UE 75kVA
3000 DSP-040-3000HP 120k 50 3000 485 35UE 150kVA
4000 DSP-040-4000HP 160k 50 4000 555 43UE 200kVA
50 1200 DSP-050-1200HP 60k 65 1200 410 35UE 75kVA
2400 DSP-050-2400HP 120k 65 2400 485 35UE 150kVA
3200 DSP-050-3200HP 160k 65 3200 555 43UE 200kVA
80 750 DSP-080-750HP 60k 96 750 410 35UE 75kVA
1500 DSP-080-1500HP 120k 96 1500 485 35UE 150kVA
2000 DSP-080-2000HP 160k 96 2000 555 43UE 200kVA
100 600 DSP-100-600HP 60k 117 600 410 35UE 75kVA
1200 DSP-100-1200HP 120k 117 1200 485 35UE 150kVA
1600 DSP-100-1600HP 160k 117 1600 555 43UE 200kVA
125 480 DSP-125-480HP 60k 140 480 410 35UE 75kVA
960 DSP-125-960HP 120k 140 960 485 35UE 150kVA
1280 DSP-125-1280HP 160k 140 1280 555 43UE 200kVA
160 375 DSP-160-375HP 60k 180 375 410 35UE 75kVA
750 DSP-160-750HP 120k 180 750 485 35UE 150kVA
1000 DSP-160-1000HP 160k 180 1000 555 43UE 200kVA
200 300 DSP-200-300HP 60k 220 300 410 35UE 75kVA
600 DSP-200-500HP 120k 220 600 485 35UE 150kVA
800 DSP-200-800HP 160k 220 800 555 43UE 200kVA
250 240 DSP-250-240HP 60k 270 240 410 35UE 75kVA
480 DSP-250-480HP 120k 270 480 485 35UE 150kVA
640 DSP-250-640HP 160k 270 640 555 43UE 200kVA
375 160 DSP-375-160HP 60k 400 160 410 35UE 75kVA
320 DSP-375-320HP 120k 400 320 485 35UE 150kVA
427 DSP-375-427HP 160k 400 427 555 35UE 150kVA
450 133 DSP-450-133HP 60k 470 133 410 35UE 75kVA
266 DSP-450-266HP 120k 470 266 485 35UE 150kVA
356 DSP-450-356HP 160k 470 356 555 43UE 200kVA
500 120 DSP-500-120HP 60k 520 120 410 35UE 75kVA
240 DSP-500-240HP 120k 520 240 485 35UE 150kVA
320 DSP-500-320HP 160k 520 320 555 43UE 200kVA
600 100 DSP-600-100HP 60k 630 100 410 35UE 75kVA
200 DSP-600-200HP 120k 630 200 485 35UE 150kVA
267 DSP-600-267HP 160k 630 267 555 43UE 200kVA
800 75 DSP-800-075HP 60k 840 75 410 35UE 75kVA
150 DSP-800-150HP 120k 840 150 485 35UE 150kVA
200 DSP-800-200HP 160k 840 200 555 43UE 200kVA
1000 60 DSP-1000-060HP 60k 1050 60 410 35UE 75kVA
120 DSP-1000-120HP 120k 1050 120 485 35UE 150kVA
160 DSP-1000-160HP 160k 1050 160 555 43UE 200kVA

note1:The total voltage should be lower than 1000V when connect 2 units in series.
note2:All parameters are specified base on power on after 30 minutes, Ambient temperature 23±5 ℃ / Humidity : Under 80% RH, AC Voltage : ±5%, Frequency : ±5%.
note3:Ripple Bandwidth=300kHz(RMS) , Noise Bandwidth : < 20MHz(P-P)
note4:Special requests on demand.
note5:All specifications are subject to change without notice.
