Product Description

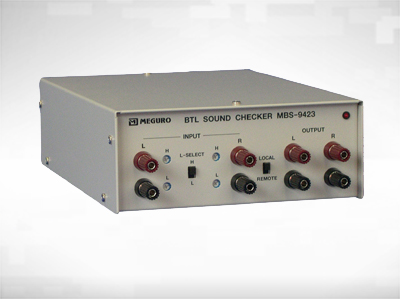

MBS-9423 BTL Sound Checker
The MBS-9423 is a BTL (Balanced Trans Less) adapter with sound checker function and is designed for measuring output level of BTL amplifier, and monitoring high output of amplifier.
FEATURES
- Because the BTL adapter and the sound check section are unified, the troublesome connection being packed in measuring becomes unnecessary and check (the monitor) is possible simply.
- It is designed small size lightweight.
SPECIFICATIONS
| BTL Adapter Section |
| Measuring frequency range |
10Hz to 20kHz ±0.1dB |
| 3Hz to 200kHz ±0.5dB |
| Max. input level |
10Vrms (4Ω•25W) |
| • Residual noise |
Less than 40µV |
| • Input impedance |
Approx. 15kΩ, <20pF |
| • Output impedance |
Approx. 600Ω |
| Gain |
0dB ±0.1dB |
|
| Sound Monitor Section |
| Measuring frequency range |
10Hz to 50kHz |
| Max. input level |
10Vrms (4Ω•25W) |
| Max. sound output |
2.0W, variable |
|
| Others |
| Power requirements |
AC100V, 115V, 215V or 230V ±10%, 50/60Hz |
| Dimensions |
Approx. 210 (W)×90 (H)×300 (D) mm |
| Weight |
Approx. 3.3kg |
|
