4-Wire Universal Cable 8700

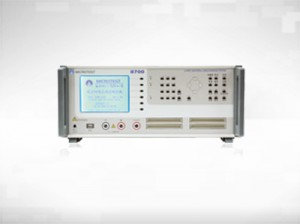

8700 4-Wire Universal Cable/Harness Tester

Call For Price

Category: .

Product Description

Features:

  • Multi-Link Testmate
  • 4-Wire Measurement
  • Up to 1500V Test Voltage
  • Auto Scan and Auto Pin Search
  • Intermittent Conductance and O/S Test
  • Large 320×240 LCD Display
  • Linear and Safety Test All-in-One
  • Full Programming Sequence Test
  • Versatile I/O Ports for Application
  • Statistics and Print Function

Specifications:

TEST FUNCTIONS
Item Symbol Test Range
Open / Short O/S 1KΩ~50KΩ
Intermittent O/S 1KΩ~50KΩ
O/S End Judgement
Conductance
 COND Max. 50.0Ω
Intermittent Cond. Max. 50.0Ω
Resistance R Max. 10.0MΩ
Capacitance C 10pF~1000uF
Zener Zener 0-7V
Insulation IR 0.1MΩ~1.5GΩ
Hipot Hipot Max.5mA
Please refer to order information for detail specification of needed mode.
Advanced Functions 4-Wire Measurement
Programmable Sequential Test
Auto Pin Search
Self Diagnostic
Self Calibration
Scanning Mode Auto/Short Switchable
Test Single Information
Output Rating 5 Vdc.
DC Hipot / Insulation　50~1500Vdc; 50~1000Vac
50V Resolution
±1% Accuracy
Display and Sound
320 x 240 Graphic LCD
Display
Pass/Fail LED Indicator/LCD Display
Internal Speaker
Connections
256 Test Points (Optional)
Hipot Calibration +/- Output
Auto Pin Search Jack
Front Panel Control Buttons
 SysKey / FastKey / EditKey
I/O Interface RS-232 Port
Printer Port
Remote Control Port
Memory 56 Setup Files
Max. 120 Setup Files (Optional)
Power Supply 115/230Vac ±10% Switchable
60/50Hz
Accessory Remote Control Cable (Optional)
RS-232 Cable (Optional)
Power Cord
User’s Guide
Temperature & Humidity

15℃~40℃
Rh≦75%
Dimension (WxHxD) 450x190x460mm
Weight Approx, 13kgs (w/o Accessory)
Cable Capacitance Limit 1μF Max.
Order Information 4- Wire Universal Cable / Harness Tester (50~1500Vdc)
