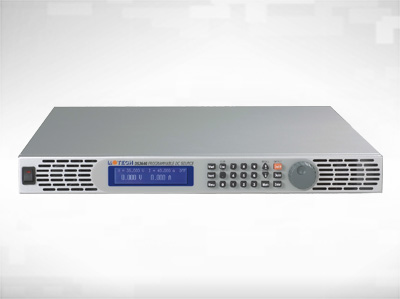

Motech DS series programmable DC source packs 1440W of output power in a compact 1U package. This series currently consists of 4 models with max output voltage ranging from 36V to 100V and output current from 14.4A to 40A. These programmable DC sources output clean, steady power with low ripple and noise. Each power supply(supplies) is made for ATE and bench solutions. As with all power supplies Motech manufactures, power supplies in this series combine quality and affordability. Each DC source is fully programmable, ships standard with a USB interface, and offers users the option to add a GPIB + LAN interface for greater versatility.
Special Enhancements:
Parallel/Serial up to 10 units for high power applications
Need more power, voltage, or current? Our DS programmable DC power supplies are made for parallel or serial connections. Using the RS-485 port, you can connect up to 10 DS power supplies in parallel or series to achieve the output ratings you need while controlling the whole system with the Master unit.
Small voltage and current output capabilities
While most high power DC sources do not offer high resolution, Motech DS series power supplies offer you the flexibility of settings in 1mV/1mA steps.
Modern with a dash of conventionalism
Our DS series power supplies are fully digitalized so that you may input parameters using the keypad. We have also thoughtfully included the rotary wheel for those who prefer that method.
Internal Memory
Each DR series power supply(supplies) has enough internal memory to store a total of 150 steps that can be used in up to 10 programs. To create fast and stable DC output waveforms, simply set the voltage, current, time period (10ms to 20,000s), and slew rate as necessary.
Features:
Universal input voltage (AC 100 to 240V, 47 to 63Hz)
User-friendly front panel operation
High precision V&I measurement
1mV/1mA high resolution setting
Low ripple and low noise
Power factor correction (0.99 typ.)
OVP/OCP/OPP/OTP protection
Remote sense compensation: 2V
Parallel/serial up to 10 units for higher power
Analog programming
Auxiliary 5V/1A on/off output
10 store/recall memories
10 programs with 150 steps to generate testing patterns
CE Certificate
Standard USB interface (virtual com port)
Optional GPIB/LAN two-in-one interface
Specification
Model
DS 3640
DS 6024
DS 8018
DS 10018
Output Rate
Output Voltage
0～36V
0～60V
0～80V
0～100V
Output Current
0～40A
0～24A
0～18A
0～14.4A
Output Power
1440W
1440W
1440W
1440W
Line Regulation
Voltage
4mV
6mV
8mV
10mV
Current
4mA
4mA
4mA
4mA
Load Regulation
Voltage
8mV
8mV
10mV
12mV
Current
8mA
7mA
6.5mA
6mA
Ripple and Noise ( 20Hz ～ 20MHz )
Normal Mode Voltage
≦5mVrms / ≦60mVpp
≦6mVrms / ≦70mVpp
≦7mVrms / ≦80mVpp
≦8mVrms / ≦80mVpp
Normal Mode Current
≦90mA
≦70mA
≦50mA
≦40mA
Resolution
Programming
1mV/1mA
1.5mV/1mA
2mV/1mA
2.5mV/1mA
Readback
1mV/1mA
1.5mV/1mA
2mV/1mA
2.5mV/1mA
Programming Accuracy ±(% output +offset)
Voltage
0.05% + 10mV
0.05% + 15mV
0.05% + 20mV
0.05% + 25mV
Current
0.05% + 10mA
0.05% + 8mA
0.05% + 7mA
0.05% + 6mA
Readback Accuracy ±(% output +offset)
Voltage
0.05% + 10mV
0.05% + 15mV
0.05% + 20mV
0.05% + 25mV
Current
0.05% + 10mA
0.05% + 8mA
0.05% + 7mA
0.05% + 6mA
Transient Response Time
≦1mS
≦1mS
≦1mS
≦1mS
OVP adjustment Range
2 ~ 38V
3 ~ 64V
4 ~ 85V
5 ~ 105V
OVP Accuracy
200mV
300mV
400mV
500mV
Command Response Time
50mS
50mS
50mS
50mS
Efficiency
80%
80%
80%
80%
Power Factor
0.99
0.99
0.99
0.99
Remote Sense Compensation
2V
2V
2V
2V
Rising Time at Full Load
≦15mS
≦15mS
≦15mS
≦15mS
Rising Time at No Load
≦15mS
≦15mS
≦15mS
≦15mS
Falling Time at Full Load
≦15mS
≦15mS
≦15mS
≦15mS
Falling Time at No Load
≦1000mS
≦1000mS
≦1000mS
≦1000mS
Standard Interface
USB
USB
USB
USB
Option Interface
LAN、GPIB
LAN、GPIB
LAN、GPIB
LAN、GPIB
General
AC Line Rated Input Voltage
100～240 VAC (Full Load)
Tolerance / Variation in Voltage
-15% ～ +10% (10% power de-rating mode when voltage under 95 Vac)
DS Series Programmable DC Power Supply (Compact 1U Package)
Call For Price
Product Description
Description:
Motech DS series programmable DC source packs 1440W of output power in a compact 1U package. This series currently consists of 4 models with max output voltage ranging from 36V to 100V and output current from 14.4A to 40A. These programmable DC sources output clean, steady power with low ripple and noise. Each power supply(supplies) is made for ATE and bench solutions. As with all power supplies Motech manufactures, power supplies in this series combine quality and affordability. Each DC source is fully programmable, ships standard with a USB interface, and offers users the option to add a GPIB + LAN interface for greater versatility.
Special Enhancements:
Need more power, voltage, or current? Our DS programmable DC power supplies are made for parallel or serial connections. Using the RS-485 port, you can connect up to 10 DS power supplies in parallel or series to achieve the output ratings you need while controlling the whole system with the Master unit.
While most high power DC sources do not offer high resolution, Motech DS series power supplies offer you the flexibility of settings in 1mV/1mA steps.
Our DS series power supplies are fully digitalized so that you may input parameters using the keypad. We have also thoughtfully included the rotary wheel for those who prefer that method.
Each DR series power supply(supplies) has enough internal memory to store a total of 150 steps that can be used in up to 10 programs. To create fast and stable DC output waveforms, simply set the voltage, current, time period (10ms to 20,000s), and slew rate as necessary.
Features:
Specification
