PPS1201GSM-A

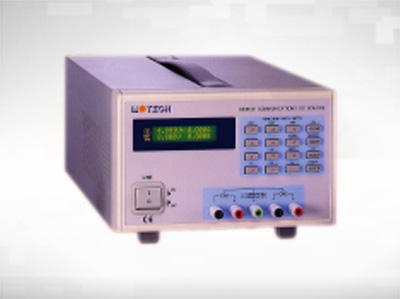

PPS1201GSM-A Mobile Communication DC Source

Call For Price

Categories: , .

Product Description

Mobile Communications DC Source – Dual Channel DC Source and Current Sink Capability

  • Standard GPIB Interface
  • Electronic calibration via front panel or GPIB
  • Programmable overvoltage and overcurrent protection
  • Low ripple and noise output
  • Output enable/disable
  • Remote sensing function
  • Programmable Up/down fine tuning
  • Power-Off memory

Specifications:

Output Channel 2
Output Voltage 0 ~ 8V
Output Current 0 ~ 3A
Output Power 0 ~ 24W
Sink Current 0 ~ -3A
Sink Current Tracking 0.3%+10mA
Output Voltage Meas. Range 0 ~ 8V
Output Current Meas. Range High Range : -3A ~ 3A Low Range : 0 ~ 3mA
Ripple & Noise 1mVrms/10mVp-p/1mArms
Programming Resolution
Voltage 2mV
Current 1mA
Readback Resolution
Voltage 2mV
Current High Range : 1mA Low Range : 1uA
Programming Accuracy
Voltage 0.05% + 4mV
Current 0.15% + 5mA
Readback Accuracy
Voltage 0.1% + 4mV
Current 0.2% + 5mA
Stability
Voltage 0.01% + 1mV
Current 0.1% + 5mA
Load Regulation
Voltage 0.001% + 1mV
Current 0.001% + 1mA
Line Regulation
Voltage 1mV
Current 1mA
Temperature Coefficient
Voltage 100ppm/℃
Current 200ppm/℃
Readback Temperature Coefficient
Voltage 100ppm+4mV
Current 200ppm+4mA
Load Transient Response Recover Time <50us
Rising Time / Falling Time 1ms / 2ms
General
AC Line Input Voltage Ranges 115/230 VAC ± 10%
Temperature Ratings Operating(0℃ ~ 40℃) Storage(-20℃ ~ 70℃)
Common-Mode Voltage ±240Vdc
Dimensions ( W×H×D )mm (8.4 × 5.2 × 15.7)
Weight 7.3Kg
