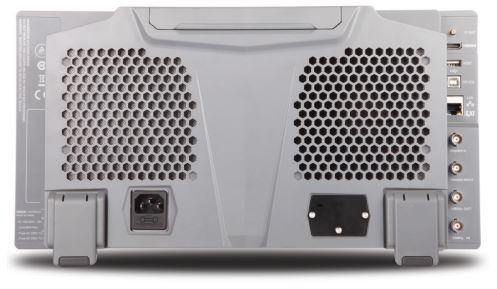

USB, LAN, HDMI and other communication and display interfaces
Based on the Ultra-Real technology, the high-speed real-time measurement mode allows you to acquire the signals in the analysis bandwidth seamlessly and make data analysis. It also provides various display modes, such as Spectrogram, Density, and PVT. Besides, FMT function is also available.
The Ultra-Real technology has the following features:
Seamless analysis
◎ Seamless I/Q data acquisition in the analysis bandwidth
◎ Seamless spectrum analysis
FMT
◎ Frequency mask trigger (FMT) to trigger the measurement by sporadic or
transient events in the spectrum
Composite displays
◎ Spectrogram for gap-free display of the spectrum
◎ Density for you to visualize how frequently signals occur
Specifications
Specifications are valid under the following conditions: the instrument is within the calibration period, is stored for at least two hours at 0℃ to 50℃ temperature, and is warmed up for 40 minutes. Unless otherwise noted, the specifications in this manual include the measurement uncertainty.
Typical: characteristic performance, which 80 percent of the measurement results will meet at room temperature (approximately 25℃). This data is not warranted and does not include the measurement uncertainty.
Nominal: the expected mean or average performance or a designed attribute (such as the 50 Ω connector). This data is not warranted and is measured at room temperature (approximately 25℃).
Measured: an attribute measured during the design phase which can be compared to the expected performance, such as the amplitude drift variation with time. This data is not warranted and is measured at room temperature (approximately 25℃).
NOTE: All charts in this manual are the measurement results of multiple instruments at room temperature unless otherwise noted. The specifications (except the
tracking generator specifications) listed in this manual are those when the tracking generator is off.
Measurement Mode
General-Purpose Spectrum Analyzer (GPSA)
Real-time Spectrum Analyzer (RTSA)
Frequency
RSA3030
RSA3030-TG
RSA3045
RSA3045-TG
Frequency Range
9 kHz to 3.0 GHz
9 kHz to 4.5 GHz
Internal Reference Frequency
Reference Frequency
10 MHz
Accuracy
±[(time since last calibration × aging rate) + temperature stability + calibration accuracy
Initial Calibration Accuracy
Standard
<1 ppm
Option OCXO-C08
<0.1 ppm
Temperature Stability
0℃ to 50℃ , with the reference 25℃
Standard
<0.5 ppm
Option OCXO-C08
<0.005 ppm
Aging Rate
Standard
<1 ppm/year
Option OCXO-C08
<0.03 ppm/year
General Specification
Display
Type
capacitive multi-touch screen
Resolution
1024 × 600 pixels
Size
10.1”
Color
24-bit color
Printer Supported
Protocol
network printer
Mass Memory
Mass Memory
Internal Storage
512 MB (nominal)
External Storage
USB storage device (not supplied)
Power
Input Voltage Range, AC
100 V to 240 V (nominal)
AC Frequency
45 Hz to 440 Hz
Power Consumption
55 W (typical), max. 90 W with all options
Environment
Temperature
Operating Temperature Range
0°C to 50°C
Storage Temperature Range
-20°C to 70°C
Humidity
0°C to 30°C
≤95% RH
30°C to 40°C
≤75% RH
Altitude
Operating Height
below 3,048 m (10,000 feet)
Electromagnetic Compatibility and Safety
EMC
complies with EMC Directive 2014/30/EU,complies with or above the standard specified in IEC61326-1:2013/EN61326-1:2013 Group 1 Class A
voltage dip: 0% UT during half cycle; 0% UT during 1 cycle; 70% UT during 25 cycles short interruption: 0% UT during 250 cycles
Safety
complies with IEC 61010-1:2010 (Third Edition)/EN 61010-1:2010, UL 61010-1:2012R4.16 and CAN/CSA-C22.2 No. 61010-1-12+ GI1+ GI2
Environmental Stress
Samples of this product have been type tested in accordance with RIGOL’s reliabilitytest regulations and verified to be robust against the environmental stresses of storage,transportation, and end-use; those stresses include, but are not limited to, temperature,
humidity, shock, and vibration. The test methods are compliant with standards specified in
GB/T6587 Class 2 and MILPRF-28800F Class 3.
Size
(W x H x D)
410 mm × 224 mm × 135 mm (16.14” × 8.82” × 5.32”)
Weight
Without Tracking Generator
4.65 kg (10.25 lb)
With Tracking Generator
4.95 kg (10.91 lb)
Calibration Interval
Recommended Calibration Interval
18 months
Input/Output
Front Panel Connector
RF Input
Impedance
50 Ω (nominal)
Connector
N-type female
TG Output
Impedance
50 Ω (nominal)
Connector
N-type female
Internal/External Reference
Internal Reference
Frequency
10 MHz
Output Level
+3 dBm to +10 dBm, +7 dBm (typical)
Impedance
50 Ω (nominal)
Connector
BNC female
External Reference
Frequency
10 MHz ± 5 ppm
Input Level
0 dBm to +10 dBm
Impedance
50 Ω (nominal)
Connector
BNC female
External Trigger Input/Output
External Trigger Input 1
Impedance
≥1 kΩ (nominal)
Connector
BNC female
Level
5 V TTL level
External Trigger Input 2/Trigger Output
Impedance
on trigger input
≥1 kΩ (nominal)
on trigger output
50 Ω (nominal)
Connector
BNC female
Level
5 V TTL level
IF Output
IF Output
Frequency
430 MHz ± 20 MHz (nominal)
Amplitude
RF input power (PRFin) ≤ -10 dBm, attenuation = 0,preamp off
50MHz, PRFin ± 4 dB (nominal) other frequency, PRFin ± 4 dB + RF frequency response (nominal)

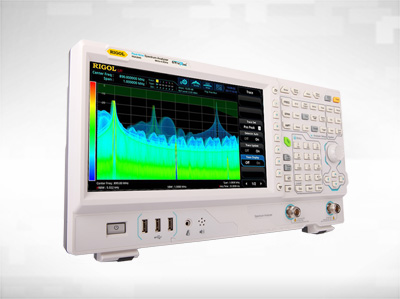

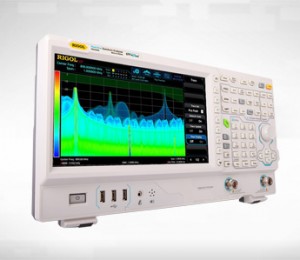

RSA3000 Series Real-time Spectrum Analyzer
Product Description
Based on the Ultra-Real technology, the high-speed real-time measurement mode allows you to acquire the signals in the analysis bandwidth seamlessly and make data analysis. It also provides various display modes, such as Spectrogram, Density, and PVT. Besides, FMT function is also available.
The Ultra-Real technology has the following features:
Seamless analysis
◎ Seamless I/Q data acquisition in the analysis bandwidth
◎ Seamless spectrum analysis
FMT
◎ Frequency mask trigger (FMT) to trigger the measurement by sporadic or
transient events in the spectrum
Composite displays
◎ Spectrogram for gap-free display of the spectrum
◎ Density for you to visualize how frequently signals occur
Specifications
Specifications are valid under the following conditions: the instrument is within the calibration period, is stored for at least two hours at 0℃ to 50℃ temperature, and is warmed up for 40 minutes. Unless otherwise noted, the specifications in this manual include the measurement uncertainty.
Typical: characteristic performance, which 80 percent of the measurement results will meet at room temperature (approximately 25℃). This data is not warranted and does not include the measurement uncertainty.
Nominal: the expected mean or average performance or a designed attribute (such as the 50 Ω connector). This data is not warranted and is measured at room temperature (approximately 25℃).
Measured: an attribute measured during the design phase which can be compared to the expected performance, such as the amplitude drift variation with time. This data is not warranted and is measured at room temperature (approximately 25℃).
NOTE: All charts in this manual are the measurement results of multiple instruments at room temperature unless otherwise noted. The specifications (except the
tracking generator specifications) listed in this manual are those when the tracking generator is off.
Measurement Mode
General Specification
humidity, shock, and vibration. The test methods are compliant with standards specified in
GB/T6587 Class 2 and MILPRF-28800F Class 3.
