3.2 GHz to 6.5 GHz models with available 40 MHz Real-Time BW
7.45 µs 100% POI
Based on the Ultra-Real technology, the high-speed real-time measurement mode allows you to acquire the signals in the analysis bandwidth seamlessly and make data analysis. It also provides various display modes, such as Spectrogram, density, and PVT. Besides, FMT function is also available.
The Ultra-Real technology has the following features: Seamless analysis
◎ Seamless I/Q data acquisition in the analysis bandwidth
◎ Seamless spectrum analysis FMT
◎ Frequency mask trigger (FMT) to trigger the measurement by sporadic or transient events in the spectrum Composite displays
◎ Spectrogram for gap-free display of the spectrum
◎ Density for you to visualize how frequently signals occur
Features:
Ultra-Real technology
Frequency: up to 6.5 GHz
Displayed average noise level (DANL): <-165 dBm (typical)
USB, LAN, HDMI and other communication and display interfaces
Specifications
Specifications are valid under the following conditions: the instrument is within the calibration period, is stored for at least two hours at 0℃ to 50℃ temperature, and is warmed up for 40 minutes. Unless otherwise noted, the specifications in this manual include the measurement uncertainty.
Typical: characteristic performance, which 80 percent of the measurement results will meet at room temperature (approximately 25℃). This data is not warranted and does not include the measurement uncertainty.
Nominal: the expected mean or average performance or a designed attribute (such as the 50 Ω connector). This data is not warranted and is measured at room temperature (approximately 25℃).
Measured: an attribute measured during the design phase which can be compared to the expected performance, such as the amplitude drift variation with time. This data is not warranted and is measured at room temperature (approximately 25℃).
NOTE: All charts in this manual are the measurement results of multiple instruments at room temperature unless otherwise noted. The specifications (except the tracking generator specifications) listed in this manual are those when the tracking generator is off.
Measurement Mode
General-Purpose Spectrum Analyzer (GPSA)
Real-time Spectrum Analyzer (RTSA)
Models
RSA5032
RSA5032-TG
RSA5065
RSA5065-TG
Frequency Range
9 kHz to 3.2 GHz
9 kHz to 6.5 GHz
Internal Reference Frequency
Reference Frequency
10 MHz
Accuracy
±[(time since last calibration × aging rate) + temperature stability + calibration accuracy]

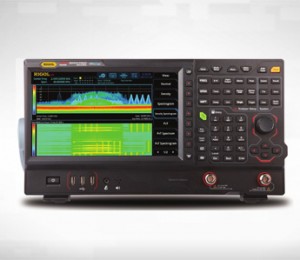

RSA5000 Series Real-time Spectrum Analyzer
Product Description
Based on the Ultra-Real technology, the high-speed real-time measurement mode allows you to acquire the signals in the analysis bandwidth seamlessly and make data analysis. It also provides various display modes, such as Spectrogram, density, and PVT. Besides, FMT function is also available.
The Ultra-Real technology has the following features:
Seamless analysis
◎ Seamless I/Q data acquisition in the analysis bandwidth
◎ Seamless spectrum analysis FMT
◎ Frequency mask trigger (FMT) to trigger the measurement by sporadic or transient events in the spectrum
Composite displays
◎ Spectrogram for gap-free display of the spectrum
◎ Density for you to visualize how frequently signals occur
Features:
Specifications
Specifications are valid under the following conditions: the instrument is within the calibration period, is stored for at least two hours at 0℃ to 50℃ temperature, and is warmed up for 40 minutes. Unless otherwise noted, the specifications in this manual include the measurement uncertainty.
Typical: characteristic performance, which 80 percent of the measurement results will meet at room temperature (approximately 25℃). This data is not warranted and does not include the measurement uncertainty.
Nominal: the expected mean or average performance or a designed attribute (such as the 50 Ω connector). This data is not warranted and is measured at room temperature (approximately 25℃).
Measured: an attribute measured during the design phase which can be compared to the expected performance, such as the amplitude drift variation with time. This data is not warranted and is measured at room temperature (approximately 25℃).
NOTE: All charts in this manual are the measurement results of multiple instruments at room temperature unless otherwise noted. The specifications (except the tracking generator specifications) listed in this manual are those when the tracking generator is off.
Measurement Mode
Read more about Rigol Detail RSA5000 specification
