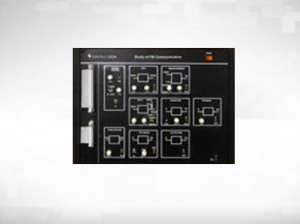

Scientech 2204 Study of FM Communication is demonstrates FM techniques frequency deviation & modulation index, spectrum of the FM signal can also be studied and TechBook contains inbuilt function generator to generate frequency range 0.1-1KHz and 1-10KHz sweep generator, PLL detector, RF detector balanced modulator & VCO`s to explain techniques of FM appropriately.
Features:
A self contained platform
Functional blocks indicated on board mimic
Built in DC power supply
Exhaustive learning material
Compact size
2 Year Warranty
Scope of Learning
Study and observation of Frequency Modulation
Study and calculation of Frequency deviation and Modulation index
Study of Phase Locked Loop detector
Study of Quadrature detector
Study of Foster-Seeley and Ratio detector
Study of Marker insertion to evaluate frequency deviation
Study of Spectrum of FM signal
Specifications:
Function Generator:
Waveform
Sine wave
Amplitude
Adjustable from 0 – 4Vpp
Frequency
0.1 to 10 KHz
VCO 1:
Waveform
Sine wave
Amplitude
400 KHz to 1500 KHz
Frequency
Adjustable from 0-2Vpp
VCO 2:
Waveform
Sine wave
Amplitude
400 KHz to 1500 KHz
Frequency
Adjustable from 0-2Vpp
Sweep Depth
Frequency 7 Hz (Adjustable-Depth)
RF Detector
Input level adjustable
Balanced Modulator
Adjustable amplitude & carrier null
Ceramic Band Pass Filter
Center frequency 455 KHz
Bandwidth
3 ±1 KHz
FM Detectors
Phase Locked Loop detector Quadrature detector Foster-Seely and Ratio detector
Scientech 2204 Study of FM Communication
Call For Price
Product Description
Study of FM Communication – Scientech 2204
Scientech 2204 Study of FM Communication is demonstrates FM techniques frequency deviation & modulation index, spectrum of the FM signal can also be studied and TechBook contains inbuilt function generator to generate frequency range 0.1-1KHz and 1-10KHz sweep generator, PLL detector, RF detector balanced modulator & VCO`s to explain techniques of FM appropriately.
Features:
Scope of Learning
Specifications:
