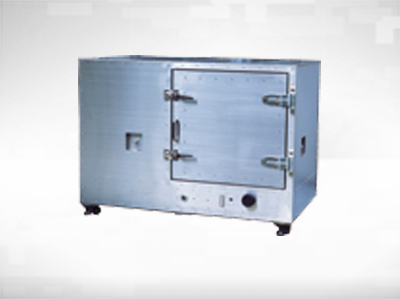

MY5305 Electromagnetic Anechoic Box with Ferrite Absorber (Small)

Call For Price

Categories: , .

Product Description

Description:
Compact size with ferrite absorber. Optimum for EMC test, receiving sensitivity test and wireless system test for technical regulations.

Product Specifications:

Specifications
Outside dimensions 1150(W)×765(H)×635(D) mm ※exclude caster, handle and projection
Inside dimensions 1000(W)×500(H)×500(D) mm
Door opening dimensions 500（W)×500（H)mm
Weight approx.195kg
Radio wave absorber Ferrite tile structure, double
Shield efficiency

(typ)

 more than 75dB@300MHz
Absorption efficiency more than 20dB @35MHz to 2.2GHz
Connectors N(2pcs), D-sub　25pin, LAN, Three core power supply cable

About radio wave absorber:
About-radio-wave-absorber

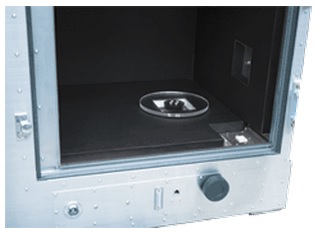

About Turntable:
about-turntable

※Factory option:
Dimensions – 220mmφ
Load – 10kg

Examples of custom-made:
Capable of changing or adding connector or function from / to above standard specifications.

  • Table for DUT
  • Turntable
  • Receiving antenna (Selection of optimum antenna suited for DUT)
  • Reference antenna (Selection of optimum antenna suited for DUT)
  • Door
  • Adding RF connectors (N, SMA, BNC, etc)
  • Adding multi pins connector (D-sub, etc)
  • Others
