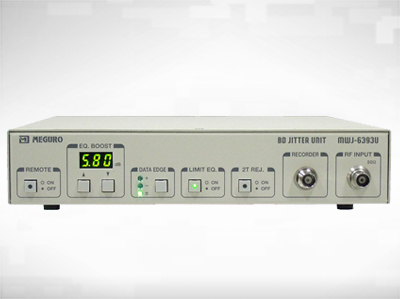

This MWJ-6393U, Blu-ray Jitter Meter unit is a built-in type and is designed for measuring and indicating the jitter components of the data signals (1-7 modulation signals) from Blu-ray Disc drives employed as input signals and the clock signal extracted by the internal PLL circuit employed as a reference signal.
It has the conventional equalizer, as standard and the boots level of it can be adjustable. The inhibit function is provided to inhibit jitter measurement of faulty section and also, the limit equalizer is available as factory option.
FEATURES
Conventional equalizer provided as standard The conventional equalizer conforming to Blu-ray Disc standards is provided and the boost level can be adjustable. The measurements of the media with 23.3GB, 25.0GB and 27.0GB are possible by the setting value.
The polarity of the measurement
It can select either + or – edge of the data signal, and also select +, – or +/- edge for jitter measurement.
INHIBIT function
The inhibit function is provided to inhibit jitter measurement of faulty section.
Auto frequency compensation circuit
Since an automatic frequency compensation circuit is provided, the jitter value can be read by a percent value accurately even if the clock frequency changes
2T Rejection function
It can measure jitter values without 2T signal requested by Dual layer Disc measurement
Remote control function
The DATA EDGE, RANGE, LIMIT EQ. & 2T REJ. function on the front panel can be remote-controlled by control signals.
Limit equalizer as option The limit equalizer is available as option.
AC power operating is available
A casing design possible by request
SPECIFICATIONS
Input section
Input Signal
1-7 modulation signals with 64MHz to 68MHz as reference clock frequency.
Input Level Range
0.1Vp-p to 1.0Vp-p
Input Impedance
50Ω, unbalance
MAX. Input Level
±10VDC or less, 3.5Vrms or less
Input junction
SMB Connector
Measuring section
Jitter Measuring Range
±0.5T to the clock edge
Reference Clock
Internal PLL clock
Measuring Data Edge
+, – or +/- (selectable)
Equalizer
Conventional
• Frequency Characteristion
Conforms to Blu-ray Disc Standards(Part.1 Ver.1.0)
• Standard Setting
+5.8dB±0.3dB (16.5MHz – 200kHz @66MHz)
• Variable Range
0dB to 9.0dB
• Group Dley Characteristion
Max. 2ns (3MHz to 16.5MHz)
PLL circuit
• Synchronous range
64MHz to 68MHz
• Frequency Characteristion
Conforms to Blu-ray Disc Standards(Part.1 Ver.1.0)
Output / Input Section
RECORDER
0.1V/% ±50mV (open circuit)
600Ω±10%
REMOTE
ALL functions on the panel except PRESET are externally controllable
INHIBIT
• Input Level
TTL level
• Logic
Active LOW (Logic selection is availabl)
Factory Option
EQUALIZER
Limit Equalizer Conforms to Blu-ray Disc Standards
( Part.1, Ver.1.0)
• EQUALIZER Output
0.5Vp-p at 50Ω load
JITTER Output
10% at 0.1Vrms at 50Ω load
DATA Output
0.25Vp-p at 50Ω load
CLOCK Output
0.25Vp-p at 50Ω load
Others
Operating Temperature Range
0ºC to +40ºC
Guarantee Temperature Range
+15ºC to +35ºC
Power requirements
AC100 /120-220/240V, 50 / 60Hz 15VA
Dimentions
132(W)×30(H)×222(D)mm
Weight
Approx. 0.24kg
*
Specifications are subject to change without notice.
MWJ-6393U BD Jitter Meter Unit
Call For Price
Product Description
MWJ-6393U BD Jitter Meter Unit
This MWJ-6393U, Blu-ray Jitter Meter unit is a built-in type and is designed for measuring and indicating the jitter components of the data signals (1-7 modulation signals) from Blu-ray Disc drives employed as input signals and the clock signal extracted by the internal PLL circuit employed as a reference signal.
It has the conventional equalizer, as standard and the boots level of it can be adjustable. The inhibit function is provided to inhibit jitter measurement of faulty section and also, the limit equalizer is available as factory option.
FEATURES
The conventional equalizer conforming to Blu-ray Disc standards is provided and the boost level can be adjustable. The measurements of the media with 23.3GB, 25.0GB and 27.0GB are possible by the setting value.
It can select either + or – edge of the data signal, and also select +, – or +/- edge for jitter measurement.
The inhibit function is provided to inhibit jitter measurement of faulty section.
Since an automatic frequency compensation circuit is provided, the jitter value can be read by a percent value accurately even if the clock frequency changes
It can measure jitter values without 2T signal requested by Dual layer Disc measurement
The DATA EDGE, RANGE, LIMIT EQ. & 2T REJ. function on the front panel can be remote-controlled by control signals.
The limit equalizer is available as option.
SPECIFICATIONS
( Part.1, Ver.1.0)
