SiteHawk is the world first hand-held intelligent cable and antenna analyzer powered by Android operating system and high-resolution touchscreen. It is small, lightweight and easy to carry. SiteHawk can be used for testing the matching of the cable and antenna system, accurately evaluating system performance by measuring return loss, voltage standing wave ratio, cable loss, and other parameters, and measuring the RF power with the optional ThruLine power sensor.
SiteHawk is preferred for system installation, maintenance and fault location in the mobile communication system, national defense communication and broadcast industry. Meanwhile, SiteHawk can be applied in cable production and inspection, ship communication testing, public communication security, semiconductor production and calibration and other RF related area. Use of easy-to-operate full-screen touch HMI guarantees its high-precision and repeatable tests can be performed to meet various communication test needs.
Product Features:
Support wide-range of test frequency, i.e. 300kHz to 6000MHz, and cover most of the application spectrum
The world smallest and lightest (0.9kg) instrument allows one-hand operation
High measurement speed, up to 1ms/point and immediate display of the measurement result
Maximum 1500 meters DTF Range, SiteHawk is suitable for error checking and troubleshooting of long-distance cable system
Built-in battery can be constantly operating for 10 hours, and an additional portable battery can be applied to further extend battery capacity
High-frequency resolution (1kHz), simultaneous sweeping of 3201 data points at the same time, and high-frequency accuracy: 2.5×10-6
HD color LCD screen, visible in sunlight and suitable for fieldwork
Built-in 16GB memory: measurement data can be shared via the WIFI cloud or recorded in the USB flash disk

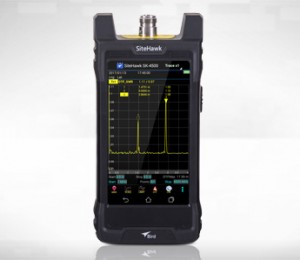

SiteHawk – Handheld intelligent cable & antenna analyzer
Call For Price
Product Description
SiteHawk is the world first hand-held intelligent cable and antenna analyzer powered by Android operating system and high-resolution touchscreen. It is small, lightweight and easy to carry. SiteHawk can be used for testing the matching of the cable and antenna system, accurately evaluating system performance by measuring return loss, voltage standing wave ratio, cable loss, and other parameters, and measuring the RF power with the optional ThruLine power sensor.
SiteHawk is preferred for system installation, maintenance and fault location in the mobile communication system, national defense communication and broadcast industry. Meanwhile, SiteHawk can be applied in cable production and inspection, ship communication testing, public communication security, semiconductor production and calibration and other RF related area. Use of easy-to-operate full-screen touch HMI guarantees its high-precision and repeatable tests can be performed to meet various communication test needs.
Product Features:
High-frequency resolution (1kHz), simultaneous sweeping of 3201 data points at the same time, and high-frequency accuracy: 2.5×10-6
HD color LCD screen, visible in sunlight and suitable for fieldwork
Built-in 16GB memory: measurement data can be shared via the WIFI cloud or recorded in the USB flash disk
Specifications
STANDARD ACCESSORIES PROVIDED
