The best equipment for simulating the change of the radio wave in the air. These attenuators can switch the attenuation of the microwave signal. Optimum for simulation of wireless communication equipments, such as handover test, dynamic motion test and receiving sensitivity test. Moreover, optimum for the simulation of the receiving trouble by the rainfall attenuation in BS/CS digital broadcasting.
MAT800/MAT810 is a multi-functional and authentic programmable attenuator that is capable of controlling the attenuation at ultra-high speed. MAT850 is a small and lightweight step attenuator that can adjust the attenuation in 0.1dB by hand watching LED display.
All models of the MAT series are electronic attenuators. Therefore, the various tests and simulations can be done in an ideal environment in which there are no chattering and spike at the switching moment.
Description:

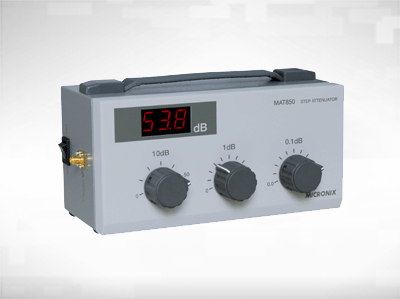

MAT 850 Covers the wideband (300MHz to 6.1GHz) in spite of small size, lightweight and low cost. Putting upward or on transverse is available. The attenuation value is easy to see bacause of the large seven segments LED. The three knobs are independent in every 10dB, 1dB and 0.1dB. And neither chattering nor spike are generated when switching the knobs.
Features:
The frequency range is so wide as 300MHz to 6.1GHz.
The minimum step size of attenuation is 0.1dB, and the maximum attenuation is 60dB.
Equips with spike noise removal circuit at switching moment.
LED display easy to see.
Comparison:
Model
Frequency
Attenuation
Input Power（1dB compression）
Type
Maximum
Resolution
MAT800 / A
1.5 to 4.5GHz
80dB
0.05dB
100mW
High-Speed Programmable Attenuator
/ B
3.0 to 9.0GHz
/ C
4.5 to 13.5GHz
/ D
1.95 to 5.85GHz
/ E
750MHz to 2.25GHz
MAT810
300MHz to 6.6GHz
60dB
25mW
MAT850
300MHz to 6.1GHz
0.1dB
Step Attenuator
Software for making attenuation program /Application
1. Software for making attenuation program MAS800 (Standard accessory)
Waveform creation – The nine types of standard waveforms are prepared like sine wave and triangle wave. A waveform is created by straight line input, arithmetic calculation input(addition, subtraction, clipping, offset and etc), one-point input and freehand line input by a mouse.
Waveform editing and file management – Waveform editing and file management may be performed using CUT, COPY, PASTE and UNDO.

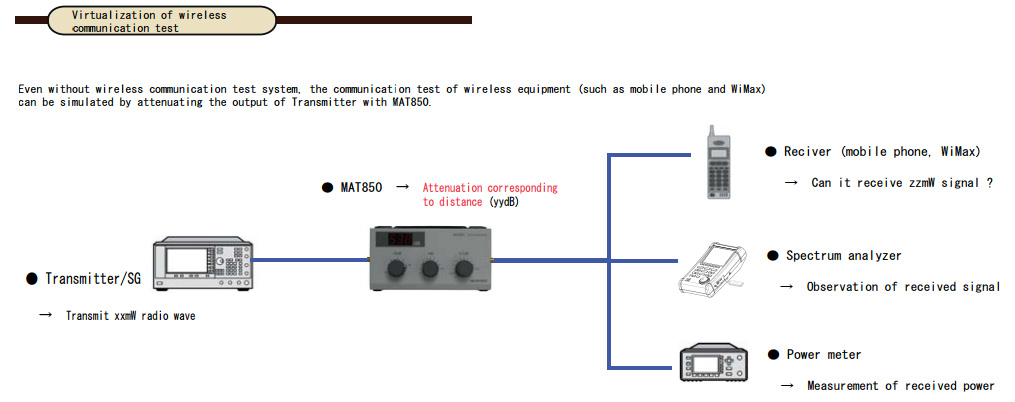

2. Application (example : Communication quality test)
Wireless equipment:
CDMA
WiMAX
RFID
ETC
2.4/5GHz Wireless LAN
MAT Equipment Model
MAT800
MAT810
MAT850
Model A
Model B
Model C
Model D
Model E
Cellular phone 1
（JPN/USA）
W-CDMA
○
○
○
○
HSDAPA
○
○
○
○
HSPA+
○
○
○
○
LTE
○
○
○
○
Cellular phone 2
（JPN/USA）
cdma
○
○
○
cdma2000
○
○
○
○
Cellular phone 3
（EUR/ASIA）
GSM
○
○
○
○
GPRS
○
○
○
○
EDGE
○
○
○
○
1xEV-D0
○
○
○
○
PHS （JPN/ASIA）
○
○
○
○
Wireless LAN
（2.4GHz) 11/11b/11g/11n
○
○
○
○
（5GHz）11a/11n
○
○
○
○
○
UWB
3.4 to 4.8GHz ＠ JPN
○
○
○
7.25 to 10.25G ＠ JPN
○
3.1 to 10.6GHz ＠ USA
○
Bluetooth
○
○
○
ZigBee
○
○
○
WiMAX
Mobil WiMAX
（2.5GHz）
○
○
○
○
（3.5GHz）
○
○
○
○
○
（5.8GHz）
○
○
○
○
○
GPS（1.57542GHz）
○
○
○
○
RF-ID
（900MHz）
○
○
○
（2.5GHz）
○
○
○
ETC/DSRC
○
○
○
BS/CS
Digital broadcasting
Antenna Reception Frequency
: 11.72748～13GHz
○
Converter Intermediate Frequency
: 1.04 to 2.03GHz
( Output VSWR : less than 2.0 )
○
○
○
Specifications:
Frequency range
300MHz to 6.6GHz
VSWR
less than 1.8@1 to 4.5GHz
less than 2.2@0.3 to 6.6GHz
Maximum attenuation
60dB
Setting resolution
0.1dB
Accuracy
less than ±0.6dB @ 0 to 10dB
(at 3.2GHz and +10dBm input)
less than ±1.0dB @ 15 to 35dB
less than ±1.2dB @ >35 to 50dB
less than ±1.8dB @ >50 to 56dB
less than ±2.2dB @ >56 to 60dB
Insertion loss
less than 6.4dB@2GHz
Maximum input level
25mW@1dB compression
Input damage level
+20dBm, 50VDC Max
Input/output connector
SMA(J)
Power Supply
+9VDC(supplied by attached AC adapter MA400) Input of MA400:100 to 240 VAC
Dimension Weight
200(W)100(H)100(D)mm,approx.1.8kg
Application Examples
WiMAX, Mobile phone, W-LAN, RFID, Bluetooth, Micro-power radio, Car navigation, ETC&DSRC and digital terrestrial broadcasting etc.
