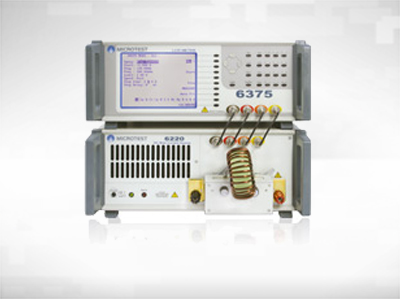

DC Bias Current Source 6220

6210 / 6220 DC Bias Current Source

Call For Price

Category: .

Product Description

Description:

Exclusive Temperature Climbing Scanning Function
Microtest 6220 DC Bias Current Source gets temperature scanning function, which can easily to know the components temperature after added current on circuits, in order to prevent the high temperature burn the components.

Exclusive Clipper, Easily and Convenience to Use
Microtest 6220 DC Bias Current Source gets an exclusive clipper, DIP or SMD components can not only be tested easily but also accurately.

Features:

  • Graphic mode in DC Bias current scan and Freq. scan
  • Control by 6375 series LCR Meter
  • Internal switch Positive or Negative current
  • Can be output unlimited time setting
  • DCR measurement function
  • Super protection circuit
  • Auto Level Control(ALC) (25W/20Vdc Max.,)
  • Can be expend up to 6 units in 120A

inductive-vs-bias-current-function

Specification:

Output Current 0.000A ~ 10.000A (model 6210)
0.000A ~ 20.000A (model 6220)
Accuracy 0.000A ~ 1.000A 1%+5mA
1.001A ~ 5.000A 2%
5.001A ~ 20.000A 3%
Freq. response 20Hz ~ 1MHz
Operation Environment 10~40°C，20~90%RH non-condensing
Input Power 88~264Vac，47~63Hz
Consumption Power 320W max
Size 340x150x525mm
Weight 15Kgs

DC-Bias-model
