Comprehensive measurement functions
Providing all the well-known measurement parameters:
Impendance | Z | 、Admittance | Y | 、Phase Angle (θ)、Reactance (X)、Conductance (G)、 Susceptance (B)、Inductance (L)、Capacitance (C)、Quality Factor (Q)、Dissipation Factor (D)、Resistance (DCR)
Continuous frequency range from 20Hz to 10MHz
Providing a continuous variable frequency from 20Hz to 10MHz, 5 digits resolution, testing all components at the desired test frequency, allowing a component to be test at a actual operating frequency.
Graphical sweep
Graph the parameter against frequency or AC drive level. Characterize a component graphically, helps the engineer understand how the component perform under different conditions.
Fast! Accurate! Stable!
Testing components is easy with 6378 Series Impendance Analyzer. Just connect the component and the analyzer accurately measures the component value displaying selected primary and secondary with a basic accuracy of 0.1%.
Flexible! Full remote control!
Providing control and output capability, the 6378 Series offers useful interface such as GPIB, RS232 and handler port, making remote control straight forward.

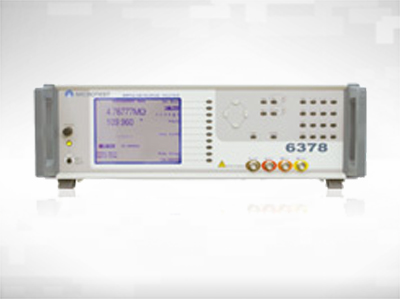

6378 / 6379 Impedance Analyzer
Call For Price
Product Description
Features:
Comprehensive measurement functions
Providing all the well-known measurement parameters:
Impendance | Z | 、Admittance | Y | 、Phase Angle (θ)、Reactance (X)、Conductance (G)、 Susceptance (B)、Inductance (L)、Capacitance (C)、Quality Factor (Q)、Dissipation Factor (D)、Resistance (DCR)
Continuous frequency range from 20Hz to 10MHz
Providing a continuous variable frequency from 20Hz to 10MHz, 5 digits resolution, testing all components at the desired test frequency, allowing a component to be test at a actual operating frequency.
Graphical sweep
Graph the parameter against frequency or AC drive level. Characterize a component graphically, helps the engineer understand how the component perform under different conditions.
Fast! Accurate! Stable!
Testing components is easy with 6378 Series Impendance Analyzer. Just connect the component and the analyzer accurately measures the component value displaying selected primary and secondary with a basic accuracy of 0.1%.
Flexible! Full remote control!
Providing control and output capability, the 6378 Series offers useful interface such as GPIB, RS232 and handler port, making remote control straight forward.
Specification:
｜Z｜,｜Y｜,θ, R, X, G, B, L, C, Q, D, ESR, DCR measurement Circuit：Series/Parallel
For each primary measurement parameter and secondary measurement parameter
