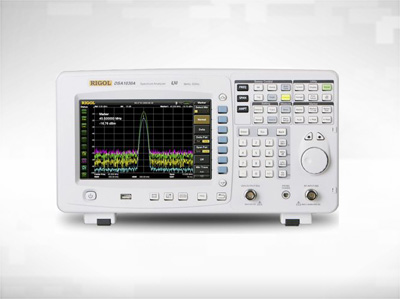

DSA1030 9KHZ to 3GHZ Spectrum Analyzer (obsolete)

Call For Price

Out of stock

Categories: , .

Product Description

This product is no longer in production, it replace by new model DSA832E

DSA1030 series products are high-performance and portable spectrum analyzers with compact design, small size and light weight. What’s more, with their low price, DSA1000 series spectrum analyzers are an ideal option to solve your budget problem.

Features and Benefits

  • All Digital IF Technology
  • 9 kHz to 3 GHz Frequency Range
  • Up to -138 dBm Displayed Average Noise Level (DANL)
  • -80 dBc/Hz @10 kHz offset Phase Noise
  • <1.5dB Total Amplitude Accuracy
  • 100 Hz Minimum Resolution Bandwidth (RBW)
  • Standard EMI filter and Quasi-peak detector function
  • 3 GHz Tracking Generator (DSA1030-TG)
  • Optional Advanced Measurement functions
  • Complete Connectivity: LAN,USB host,USB device,VGA ,GPIB (option)
  • Battery Option
  • 8.5 Inch WVGA (800×480) Display
  • Compact Size,Light weight design

Advanced Design and Performance

Unique widescreen display, friendly interface and easy-to-use operations
Unique-widescreen-display

Distinguish the two nearby signals clearly with the 100Hz RBW
Distinguish-the-two-nearby-signals

Compare the spectrums when change the RBW settings with different color trace
Compare-the-spectrums

The advanced Channel Power measurement function(DSA1030 Optional)
The-advanced-Channel-Power-measurement

The advanced Occupied Bandwidth measurement function (DSA1030 Optional)
The-advanced-Occupied-Bandwidth--measurement

AM demodulation signal with “Zero Span”
AM-demodulation-signal-with-Zero-Span

Readout the Spectrum Peak values with the Peak table function
Readout-the-Spectrum-Peak-values

The advanced Harmonic distortion measurement function(DSA1030 Optional)
The-advanced-Harmonic-distortion-measurement

Standard EMI Filter and Quasi-peak Detector
Standard-EMI-Filter-and-Quasi-peak-Detector

DSA PC Software(Ultra Spectrum) provide more analysis and display functions such as the waterfall curves
DSA-PC-Software

TX1000 RF Demo Kit
TX1000-RF-Demo-Kit

DSA Accessories Package
DSA-Accessories-Package

Specifications

Spectrum Analyzer Spectrum Analyzer Rigol DSA1030
Display 21.6 cm (8.5″) TFT-Color-LCD with 65536 colors
Resolution 800 × 480 Pixel
Interfaces
  • USB-Host (for USB stick i.e. to save/load waveforms)
  • USB for a PC connection
  • LAN for network connection
  • GPIB (IEE-488, General Purpose Interface Bus) The GPIB function is only available with the use of the optional available USB GPIB module
  • VGA interface to connect an external display
Dimensions 399 mm × 223 mm × 159 mm
(15.71″ × 8.78″ × 6.26″)
Weight 6.2 kg (13.67 lbs)
7.5 kg (16.54 lbs) with connected battery. The battery is not included.
Supported operation systems Windows XP(32Bit), Vista(32Bit), Windows 7(32Bit)
Function Spectrum Analyzer Rigol DSA1030
Channels 1
Frequency Range 9 kHz to 3 GHz
Frequency Resolution 1 Hz
Internal Frequency Reference 10 MHz
Span 0 Hz (zero Span) 100 Hz to 3 GHz
DANL (without preamplifier)
(Displayed Average Noise level)		 100 kHz to 10 MHz10 MHz to 2,5 GHz2,5 GHz to 3 GHz < -75dBm-3x(f/1 MHz)dB
typical: -115 dBm
< -117dBm-3x(f/1GHz)dB
typical -120 dBm
< -105dBm
DANL (with preamplifier)
(Displayed Average Noise level)		 100 kHz to 1 MHz
1 MHz to 10 MHz10 MHz to 2,5 GHz2,5 GHz to 3 GHz		 < -93dBm
< -93dBm-3x(f/1 MHz)dB
typical: -133 dBm
< -135dBm-3x(f/1GHz)dB
typical -138 dBm
< -123dBm
Amplitude Range DANL to +30 dBm
Max. Input Voltage 50 V
Sweeptime Range 100 Hz ≤ Span ≤ 3 GHz
0 Hz (zero Span)		 10 ms to 3000 s
20 µs to 3000 s
Sweepmodes Normal or Single
Resolution Filter 10 Hz to 1 MHz (in 1-3-10 sequence)
Video Filter 1 Hz to 3 MHz (in 1-3-10 sequence)
Input Impedance 50 Ω nominal
